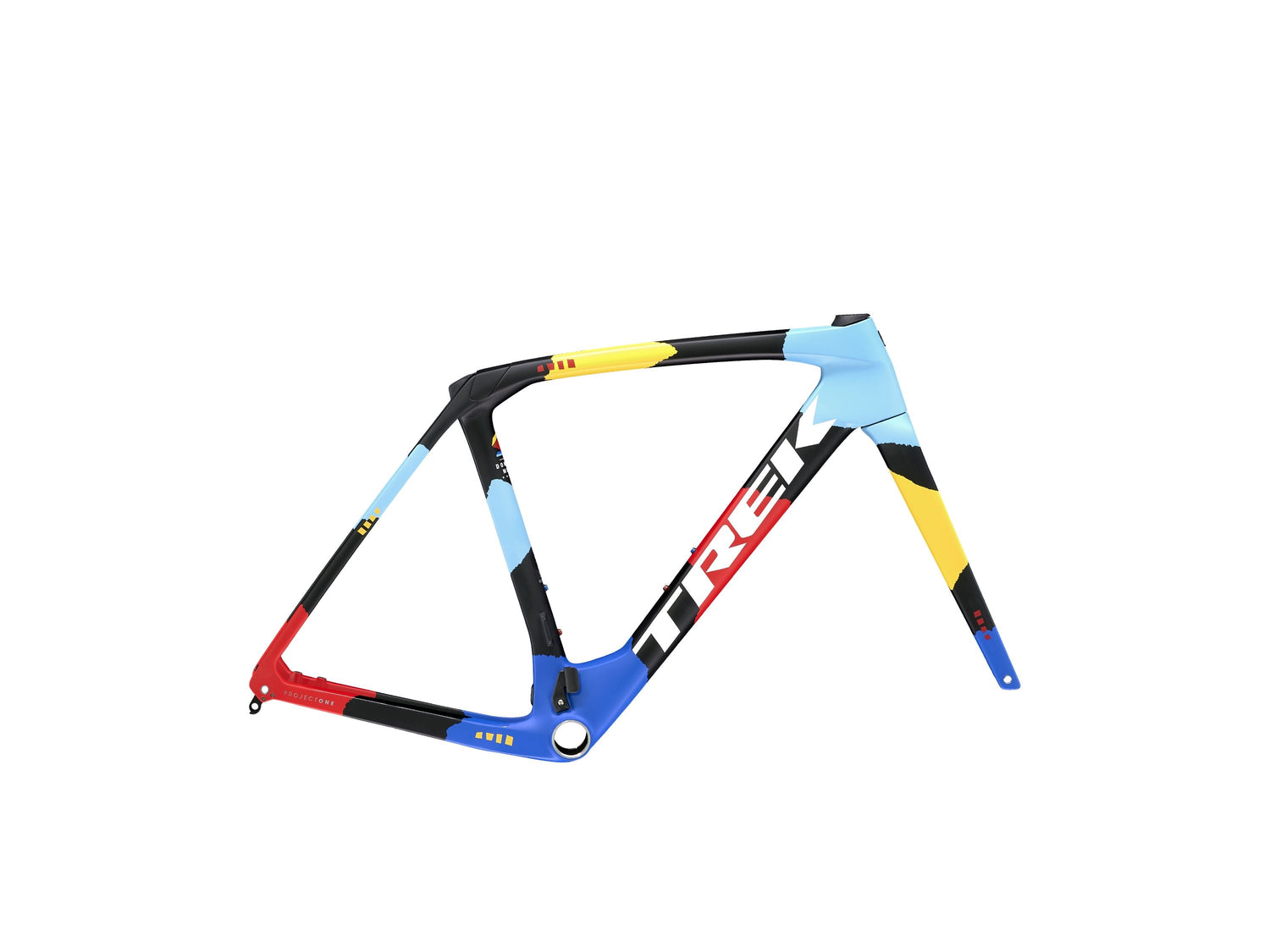

Trek Domane RSL Gen 4 Frameset

Domane RSL (Race Shop Limited) Frameset is an ultralight carbon endurance road bike frame that gives you the freedom to build your dream race machine. Designed for speed on even the roughest cobblestone courses, this is the frame of choice for pros racing Paris-Roubaix. Its refined rear IsoSpeed and aerodynamic improvements help to elevate comfort while letting you get the most out of every watt you put in.

• Domane RSL Gen 4 is an insanely light endurance road frame with Kammtail tube shapes, 800 Series OCLV Carbon, and rear IsoSpeed that come together for an ultra-fast and ultra-comfortable ride
• Domane H1.5 geometry puts you in a more aggressive racing position while maintaining stability
• Longer wheelbase for precise tracking on rough roads
• Road-smoothing IsoSpeed absorbs fatiguing bumps in the road for a faster, smoother, more comfortable ride

The smooth advantage

Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.

Podium-topping speed

Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.

Refined integration

Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.

Frame	800 Series OCLV Carbon, IsoSpeed, tapered head tube, internal cable routing, 3S chain keeper, flat mount disc, 142x12mm thru axle
Fork	Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Skewer Front	Bontrager Switch thru axle
Skewer Rear	Bontrager Switch thru axle, removable lever

Geometry Chart

B B Drop	8
Chainstay Length	42
Eff Top Tube	53.4
Frame Reach	38.8
Frame Size Number	52cm
Frame Stack	51.8
Head Angle	72.6°
Head Tube Length	9.5
Offset	5.3
Saddle Rail Height Max Short	68
Saddle Rail Height Max Tall	71
Saddle Rail Height Min Short	61.5
Saddle Rail Height Min Tall	64.5
Seat Tube	48.3
Seat Tube Angle	74.2°
Standover	72.7
Trail	5.2
Wheelbase	99.3
Wheel Size	700c

Color

TREK BLACK
