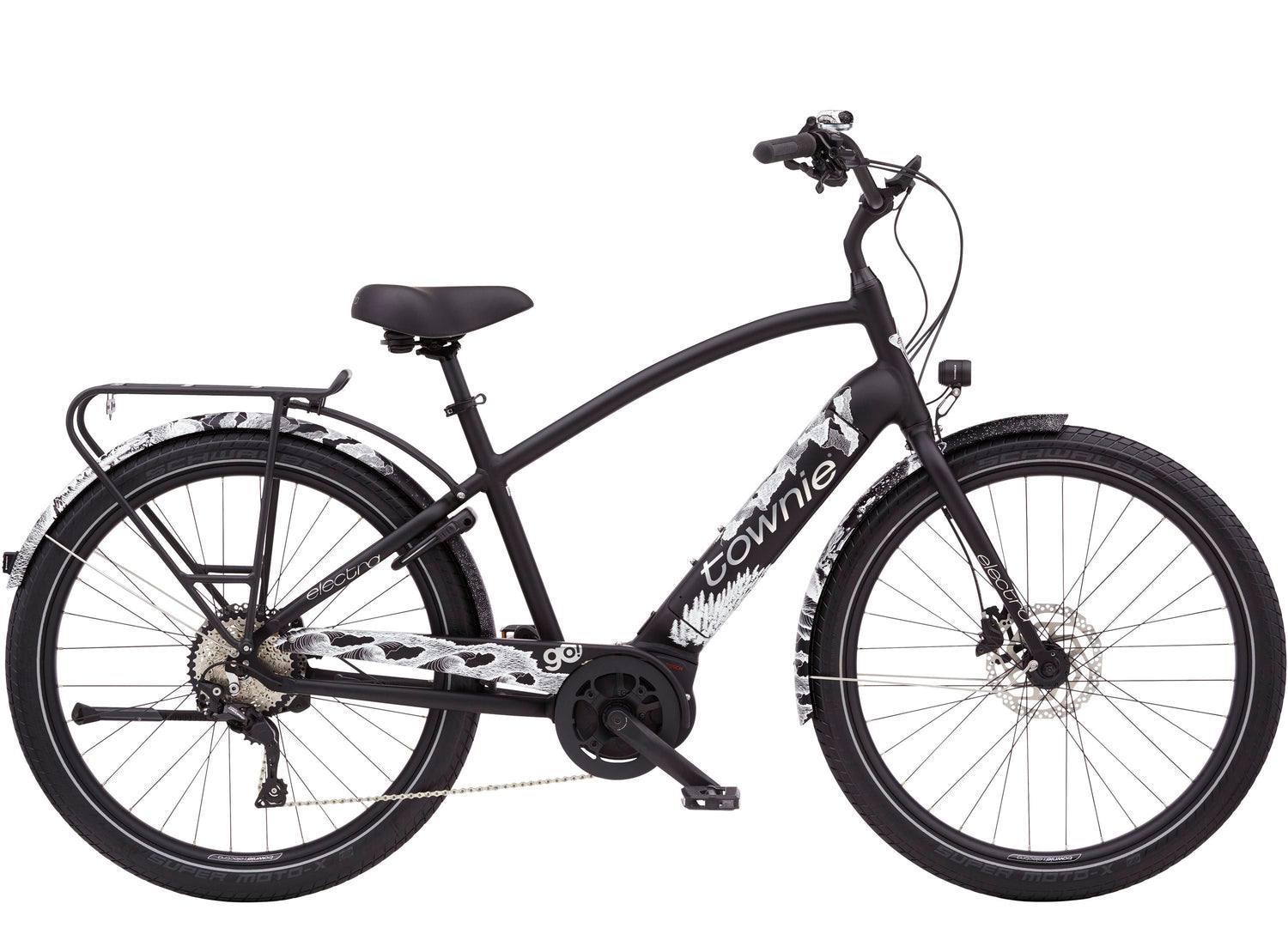

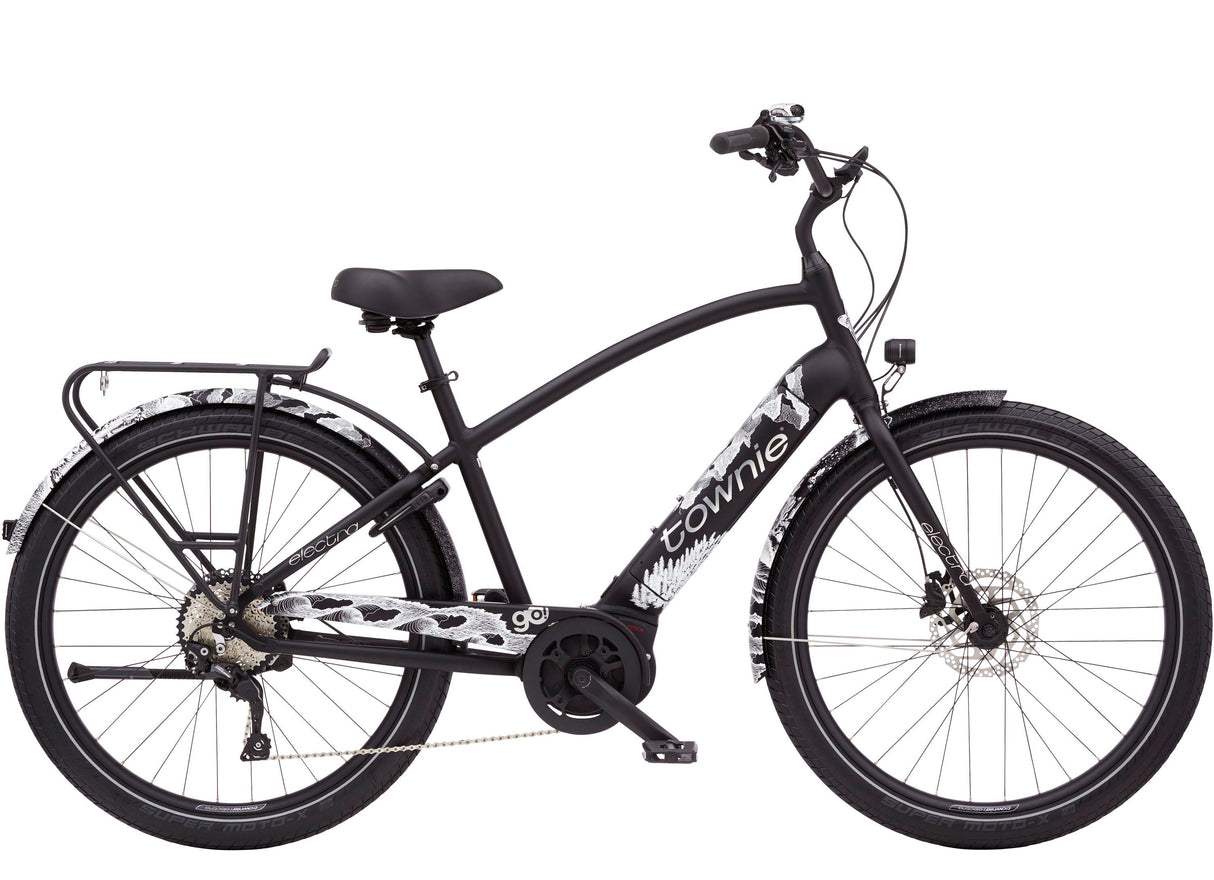

Townie Path Go! 10D Step Over US M Black

For those looking to explore more, ride farther and climb hills faster. The Townie Path Go! 10D EQ is the e-biker’s e-bike, combining versatility, technology and style into the next evolution of e-bikes. It features a Bosch Performance Line motor, integrated battery, SmartphoneHub controller, hydraulic disc brakes and our patented Flat Foot Technology® for ultimate comfort and control.

• The Townie Path Go! 10D EQ features our patented Flat Foot Technology® and Bosch Performance Line motor for optimal comfort and control.
• Easily monitor detailed rider data in one place with the Bosch SmartphoneHub controller.
• Fully integrated battery on a step-over frame.
• Equipped with front and rear lights, color-matched fenders, ABUS frame lock and rear MIK compatible rack.
• Customize your ride by adding an Electra Ringer Bell or basket to carry your stuff.

Compliant with leading safety regulations

The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.

Frame	6061-T6 aluminum with patented Flat Foot Technology®
Tire	Schwalbe Super Moto-X, reflective, wire bead, GreenGuard protection, 650x62mm
Hub Front	Formula DC-20, alloy, 6-bolt, 100x5mm
Hub Rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Rim	Alloy double walled 27.5''x32h
Spokes	14g stainless steel, black
Skewer Front	Formula QR22
Skewer Rear	152x5mm QR
Shifter	Shimano Deore M4100, 10 speed
Rear Derailleur	Shimano Deore M6000, mid cage, 42T max cog
Cassette	Shimano Deore M4100, 11-42, 10 speed
Chain	KMC E10
Chainring	Steel 40T w/alloy guard
Brake	Shimano MT-200 hydraulic disc // Shimano MT-200 hydraulic disc
Brake Rotor	Shimano RT26, 6-bolt, 180mm
Pedal	Resin platform w/grip tape tread
Saddle	Selle Royal Electra gel comfort saddle w/shock-absorbing elastomers
Seatpost	Alloy micro-adjust 27.2x400mm
Handlebar	Alloy custom bend 25.9'' width/4'' rise
Stem	Forged alloy 25.4mm quill, 80mm extension
Headset	1 1/8'' steel threaded/semi-integrated
Grips	Electra Townie custom ergo Kraton w/locking collars
Light	Supernova headlight // Supernova E3, LED, taillight
Kickstand	Alloy
Battery	Bosch PowerTube 500Wh
Motor	Bosch Performance, 65Nm, 20mph
Charger	Bosch standard 4A, 100-240V

Geometry Chart

Frame Reach	36.8
Frame Size Letter	M
Frame Stack	63.2
Head Angle	70.0°
Head Tube Length	21
Seat Tube	51.3
Seat Tube Angle	70.0°
Standover	76.7
Wheelbase	118.3
Wheel Size	27.5"
