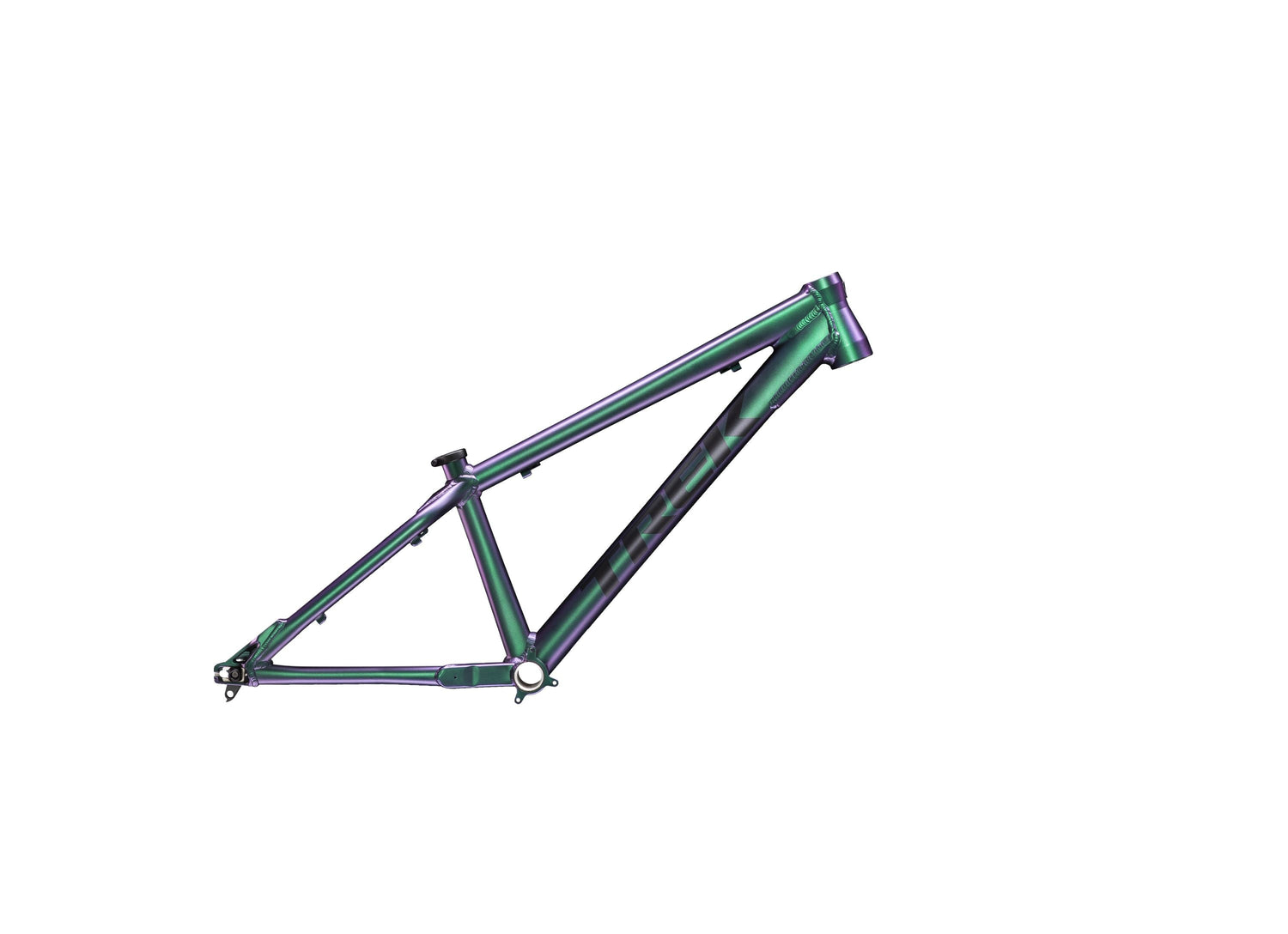

Ticket DJ F/S L Matte Emerald Iris

Ticket DJ is a lightweight, durable 26” dirt jumper frame with a compact rear end and roomy top tube for major style, the best handling, and the biggest tricks. Horizontal sliding dropouts let you choose between a singlespeed or geared setup for a personalized ride.

• Trek C3 Project riders have helped to dial in the geometry and features of this bike over years of collaboration, and the result is a highly refined ride that has helped to define the sport
• Alpha Platinum Aluminum is light without compromising durability
• Sliding 142x12mm rear dropouts, a tapered headtube, and threaded bottom bracket are ready for your dream build

Frame	Alpha Platinum Aluminum, tapered head tube, 73mm threaded BB, ISCG 05, horizontal sliding dropout for geared or singlespeed, 142x12mm thru axle
Seat Collar	Bolt-on, 36.4mm
Headset	FSA Orbit, semi-cartridge bearing, 1-1/8'' top, 1.5'' bottom

Geometry Chart

B B Drop	1
B B Height	32
Chainstay Length	40
Eff Top Tube	60.1
Frame Reach	41.4
Frame Size Letter	L
Frame Stack	54.3
Head Angle	70.0°
Head Tube Length	12
Offset	4
Seat Tube	33
Seat Tube Angle	71.0°
Standover	69.1
Trail	7.8
Wheelbase	105
Wheel Size	26"
