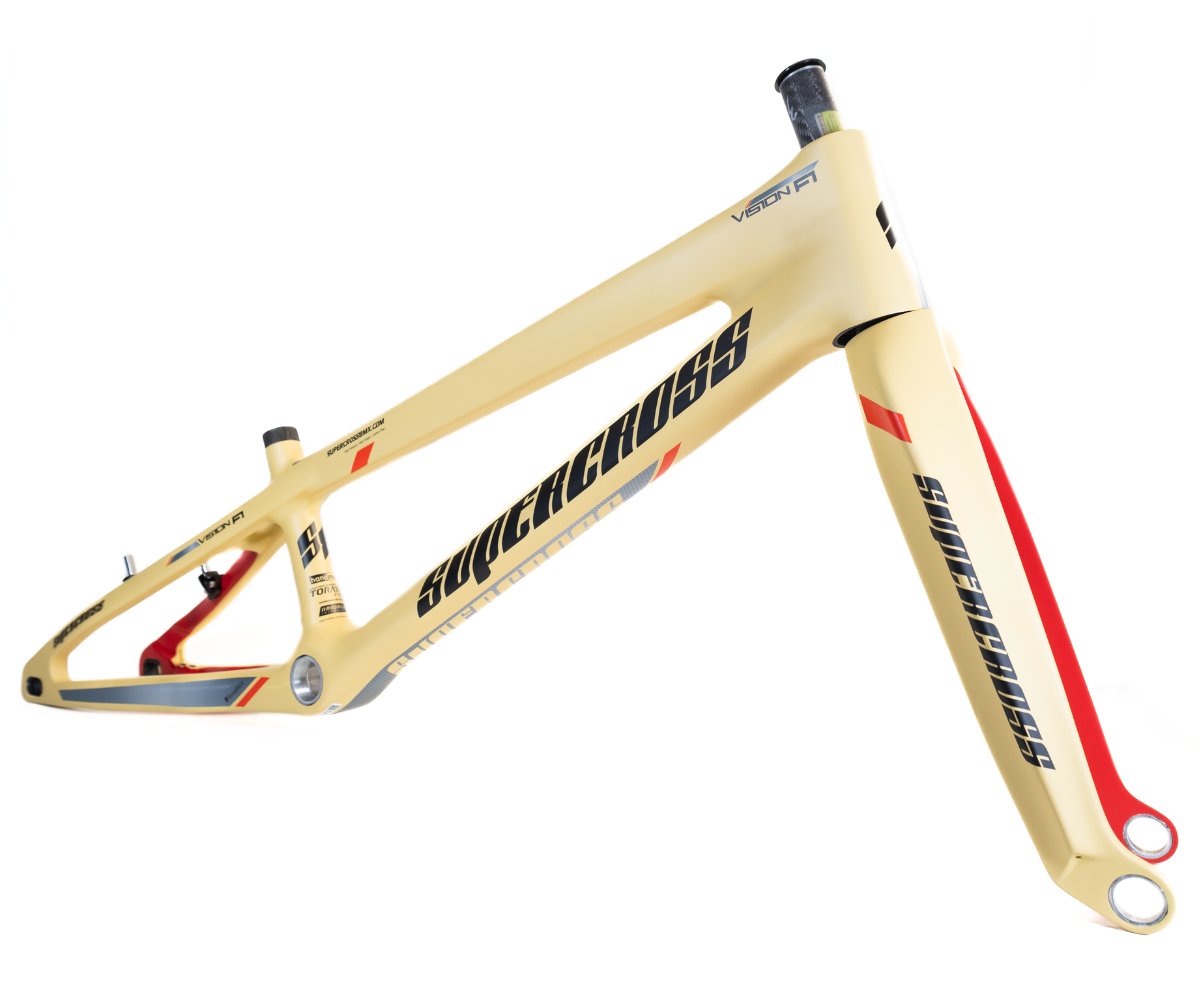

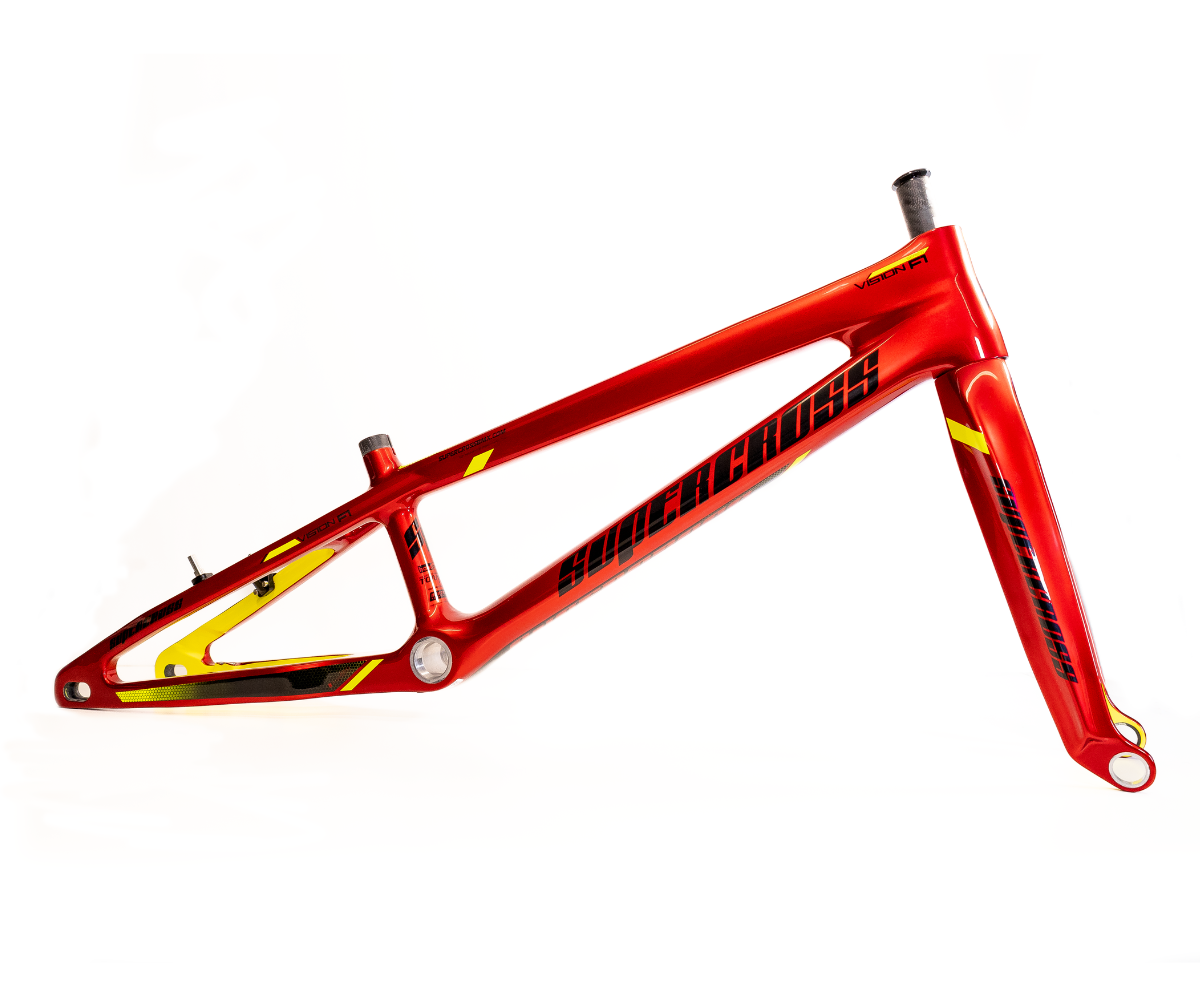

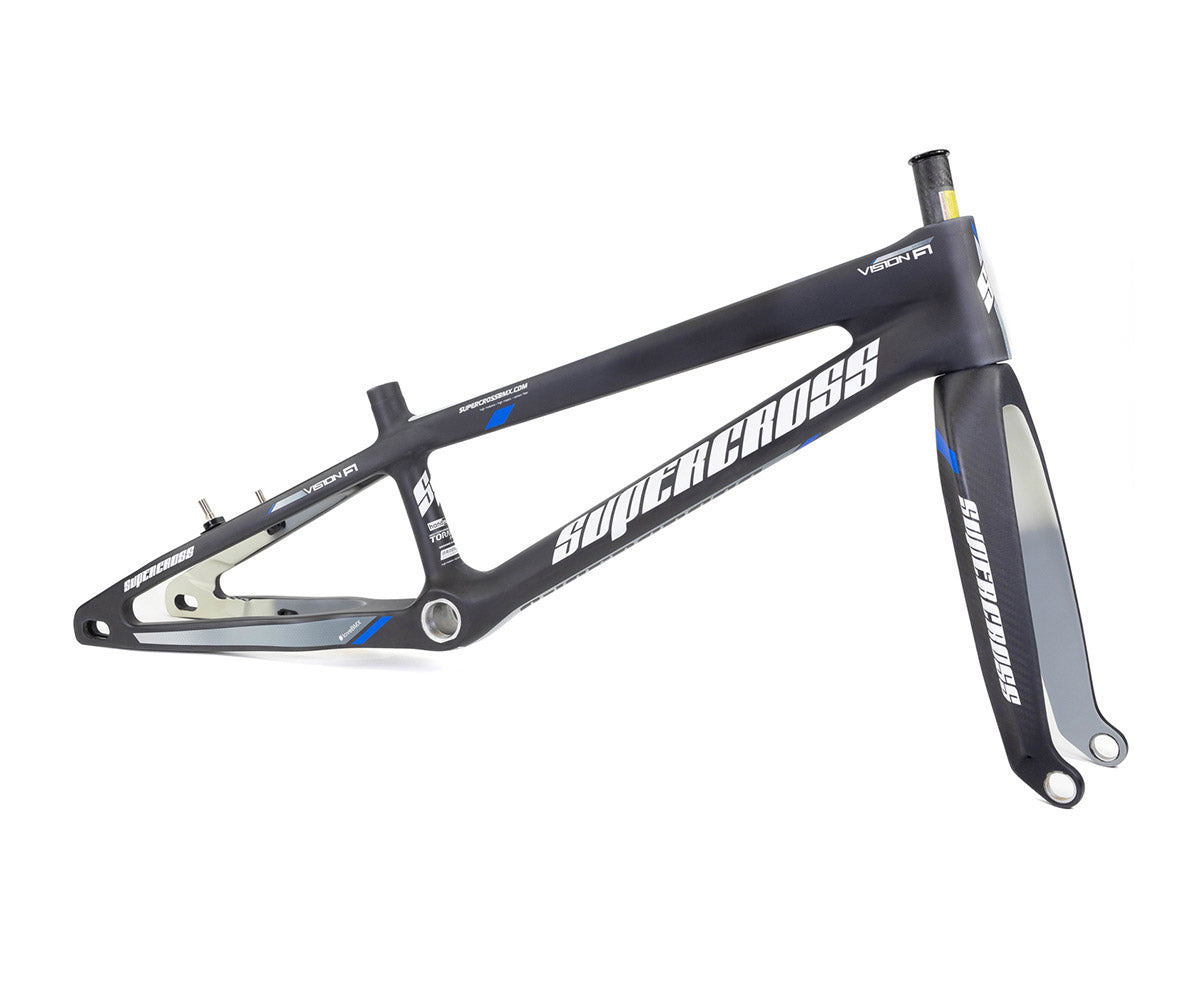

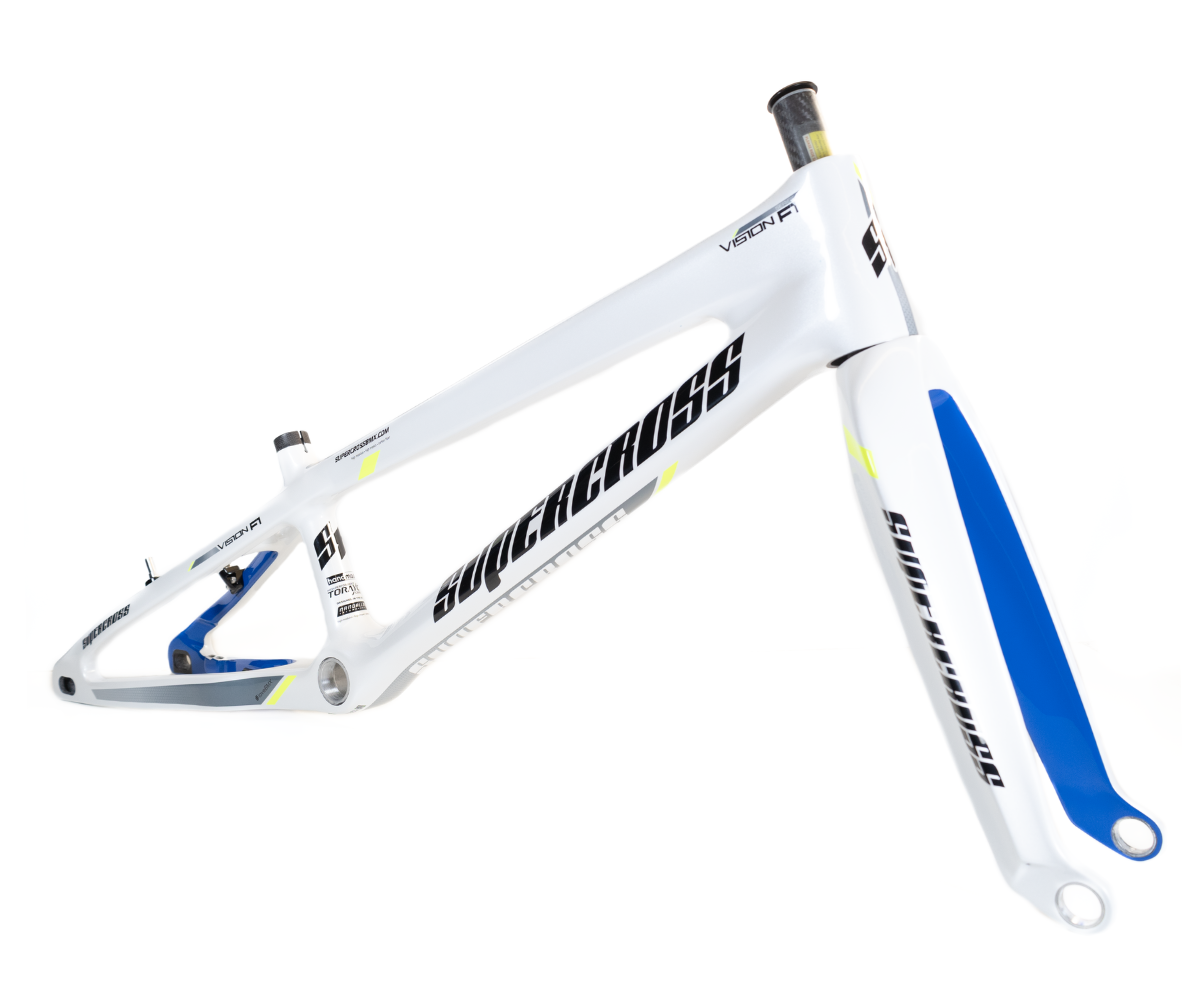

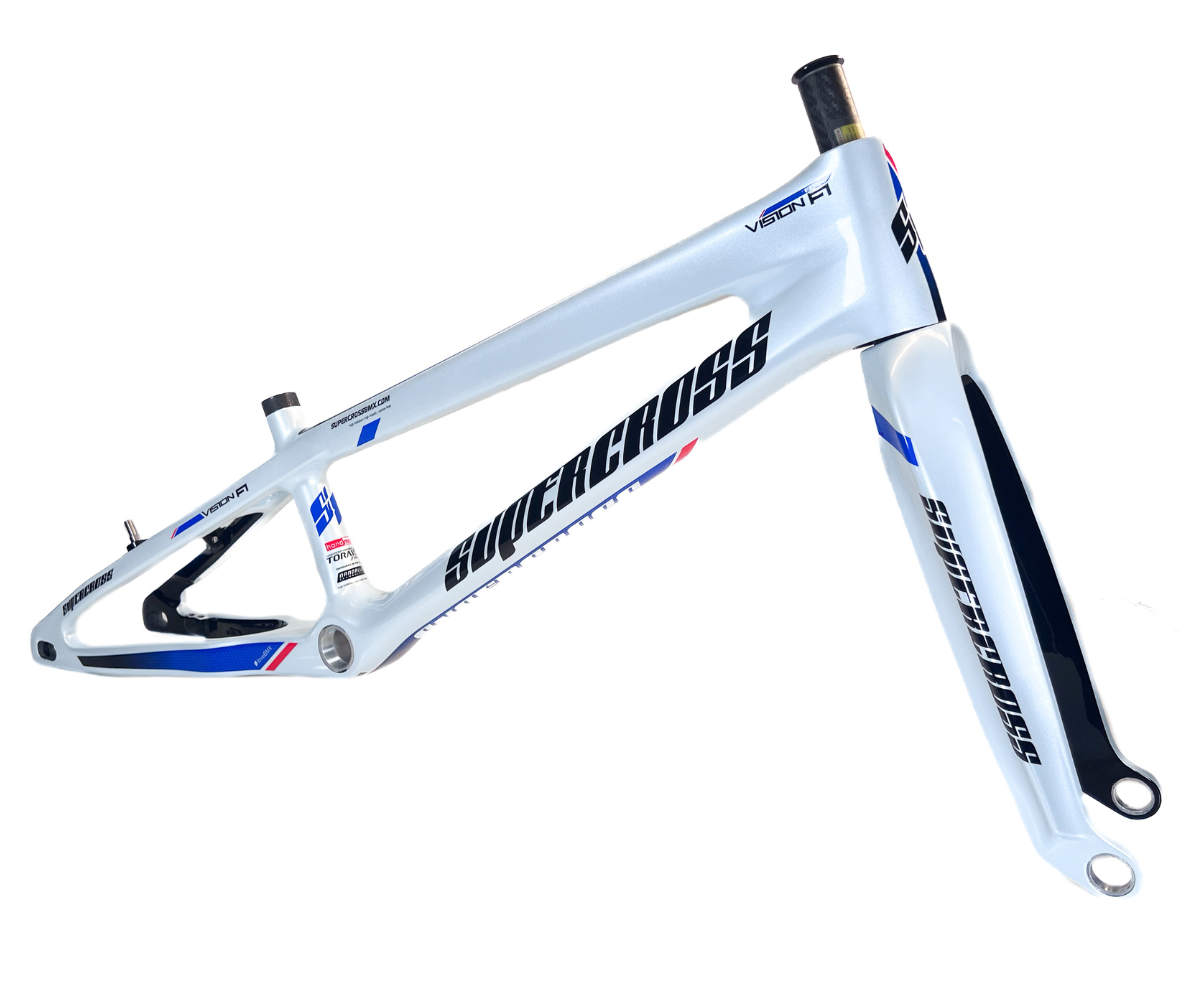

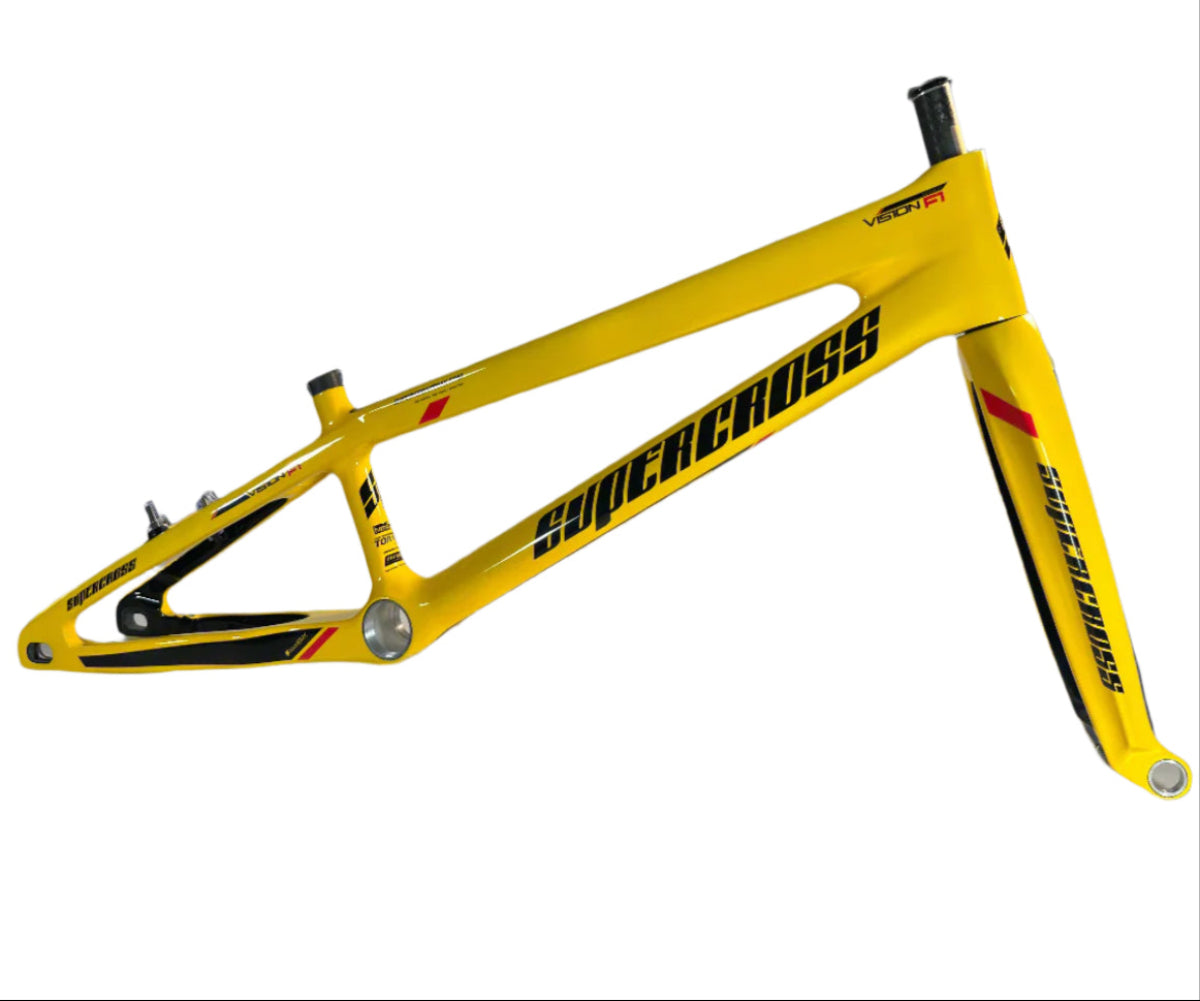

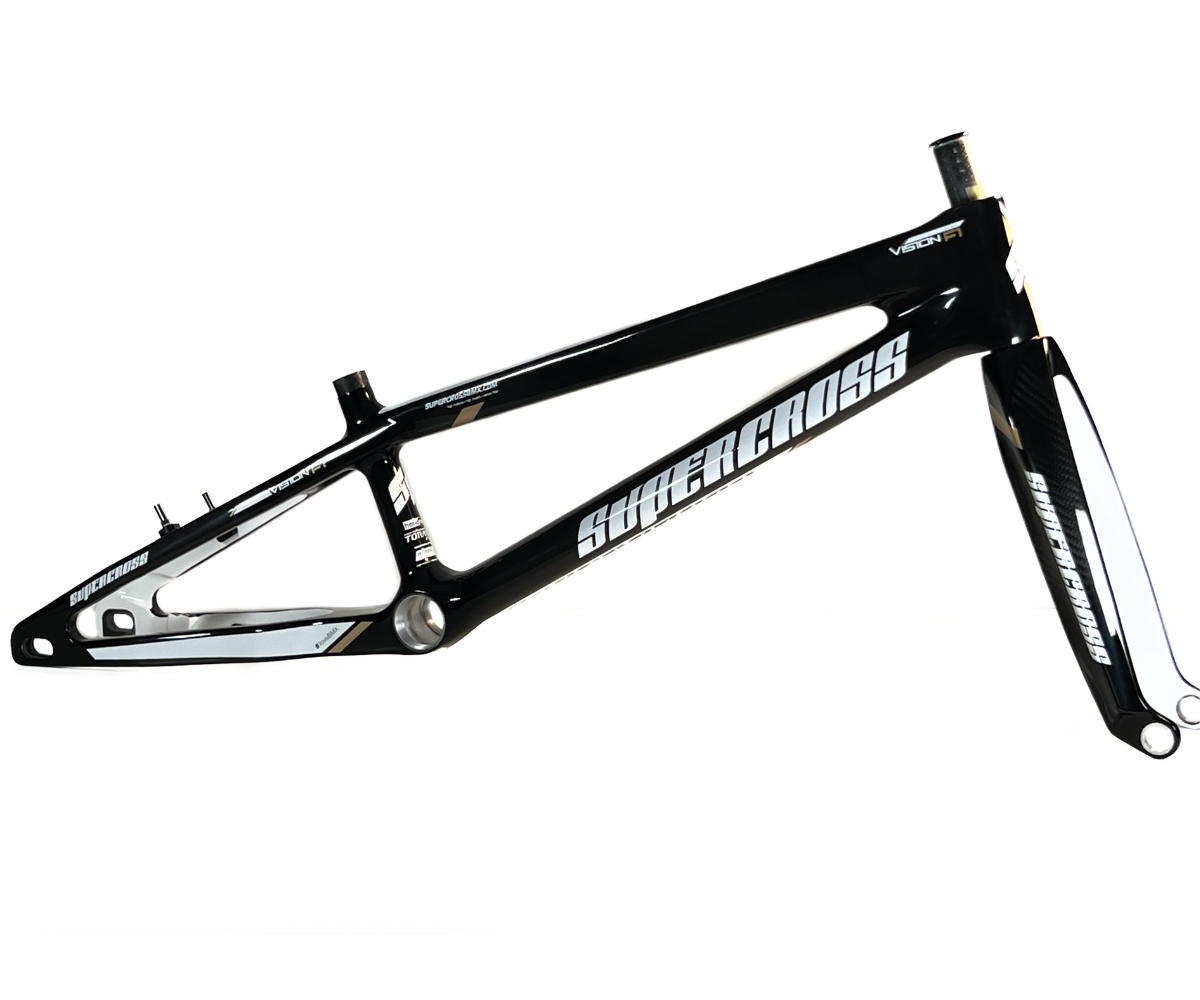

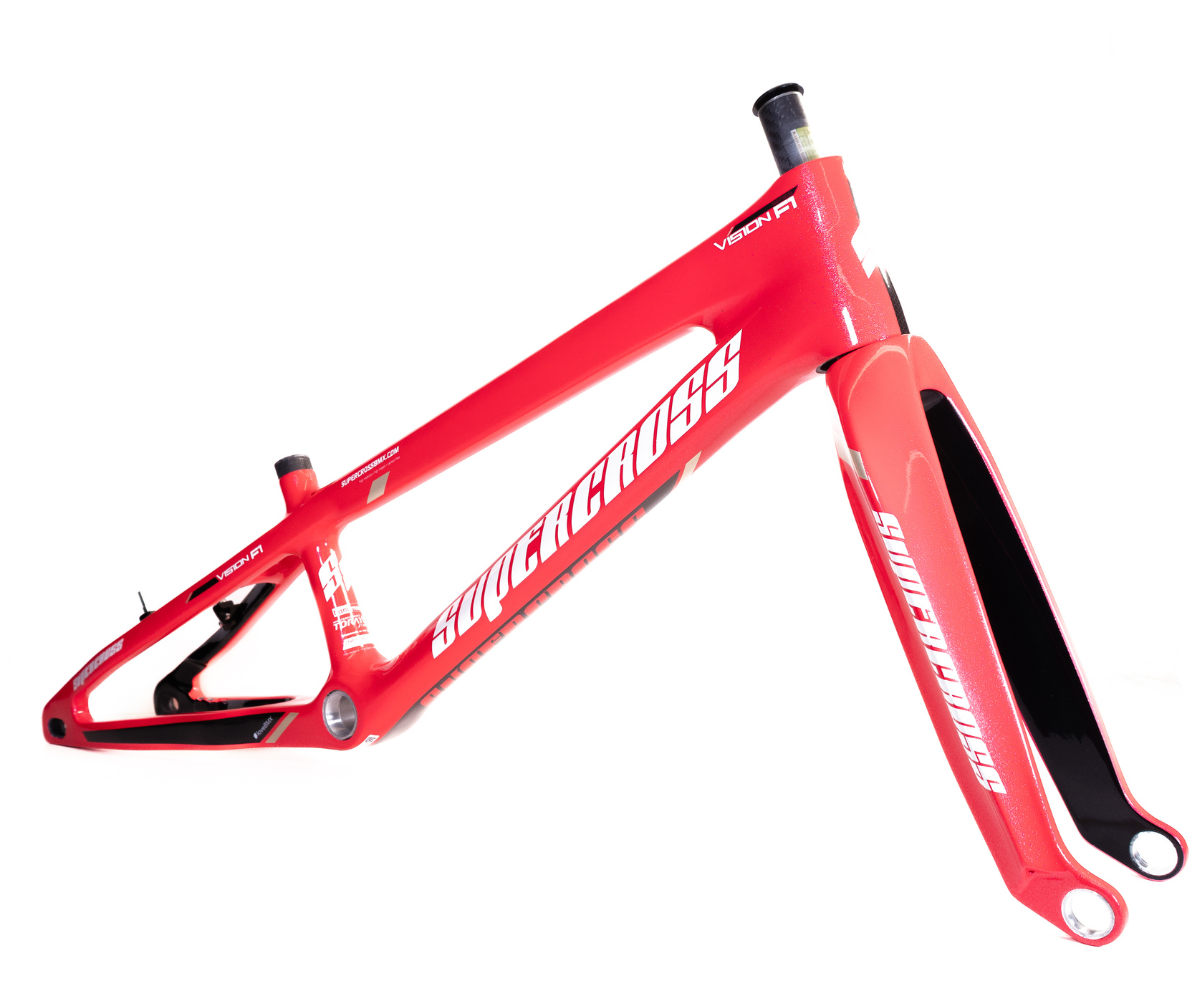

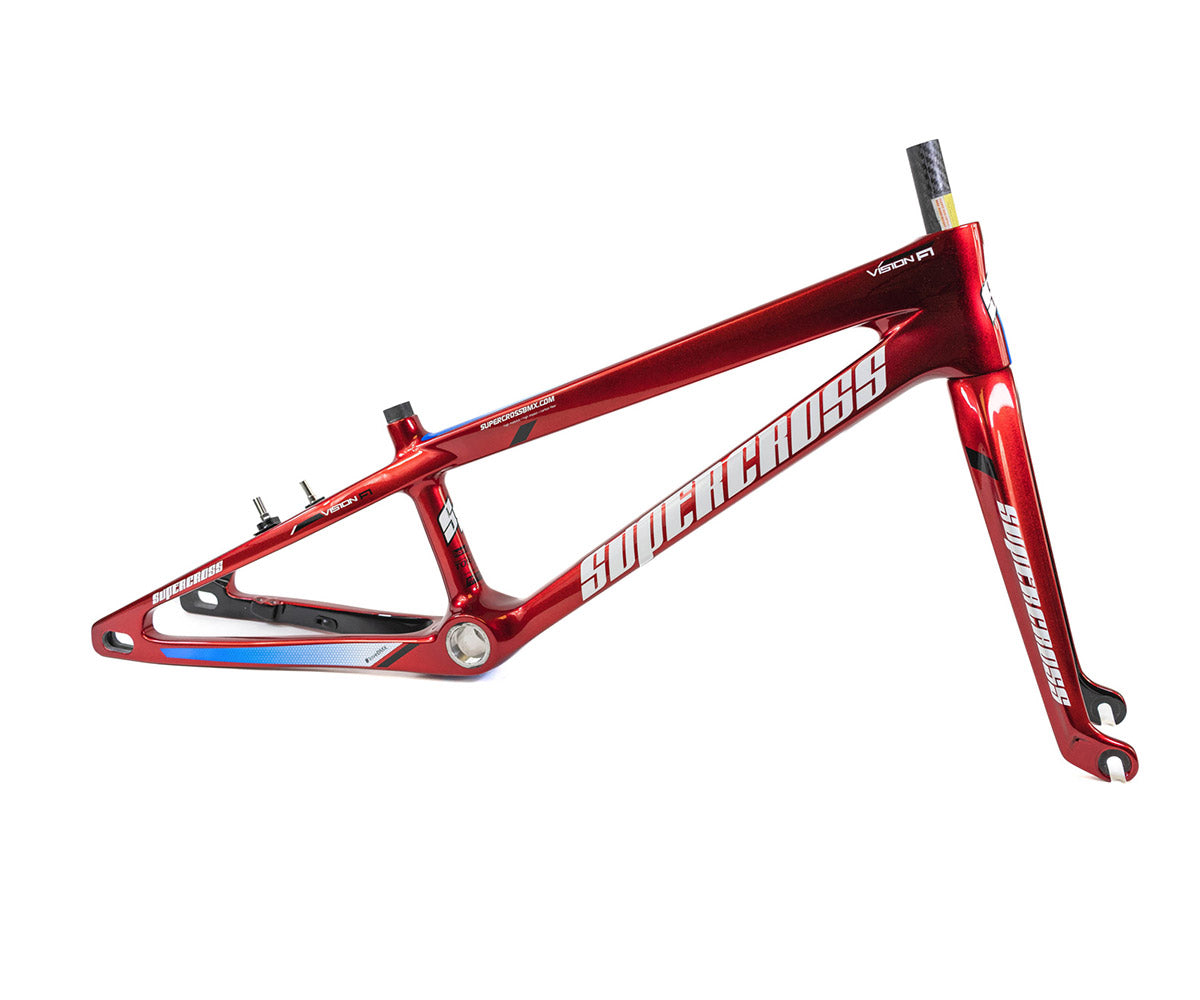

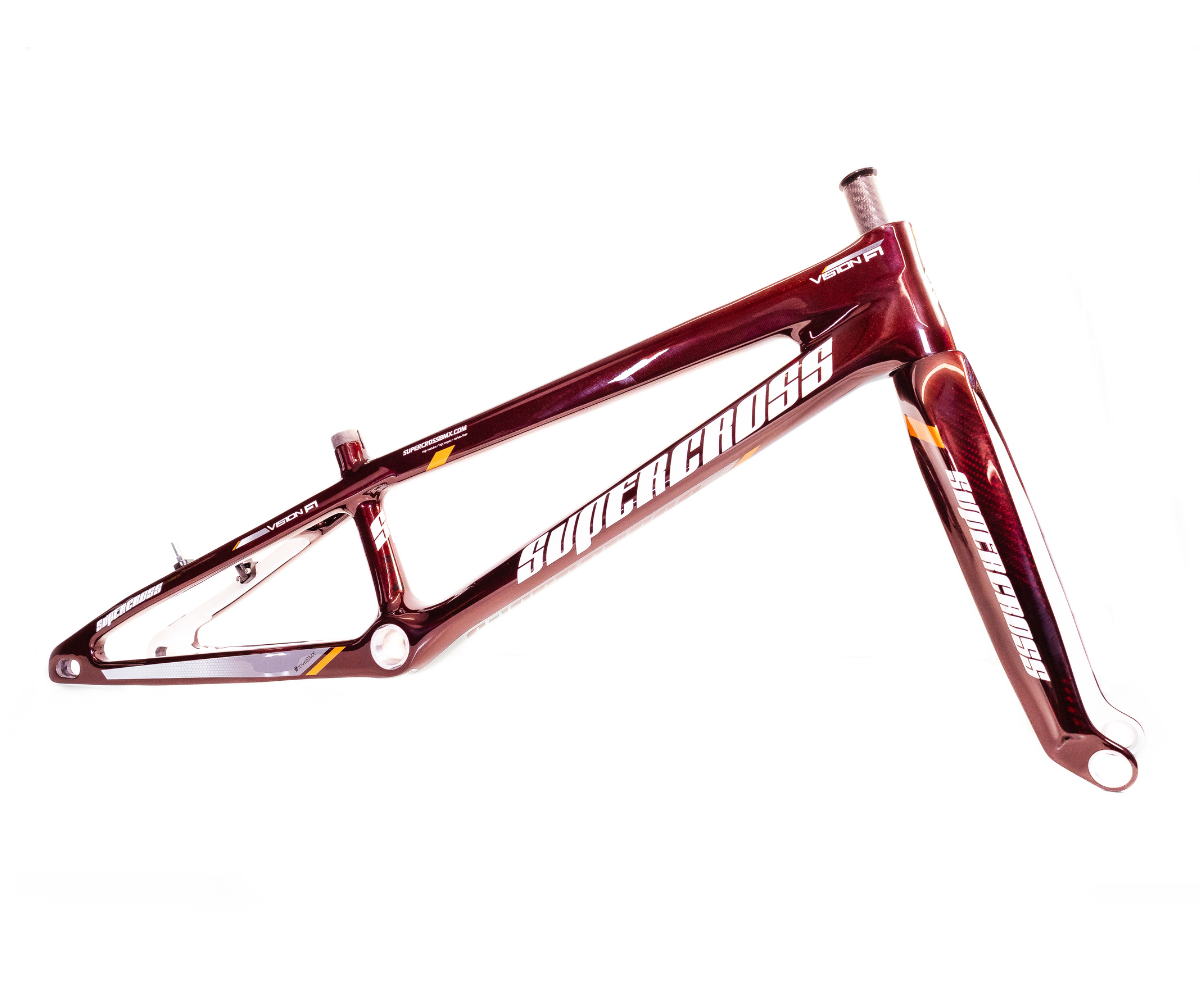

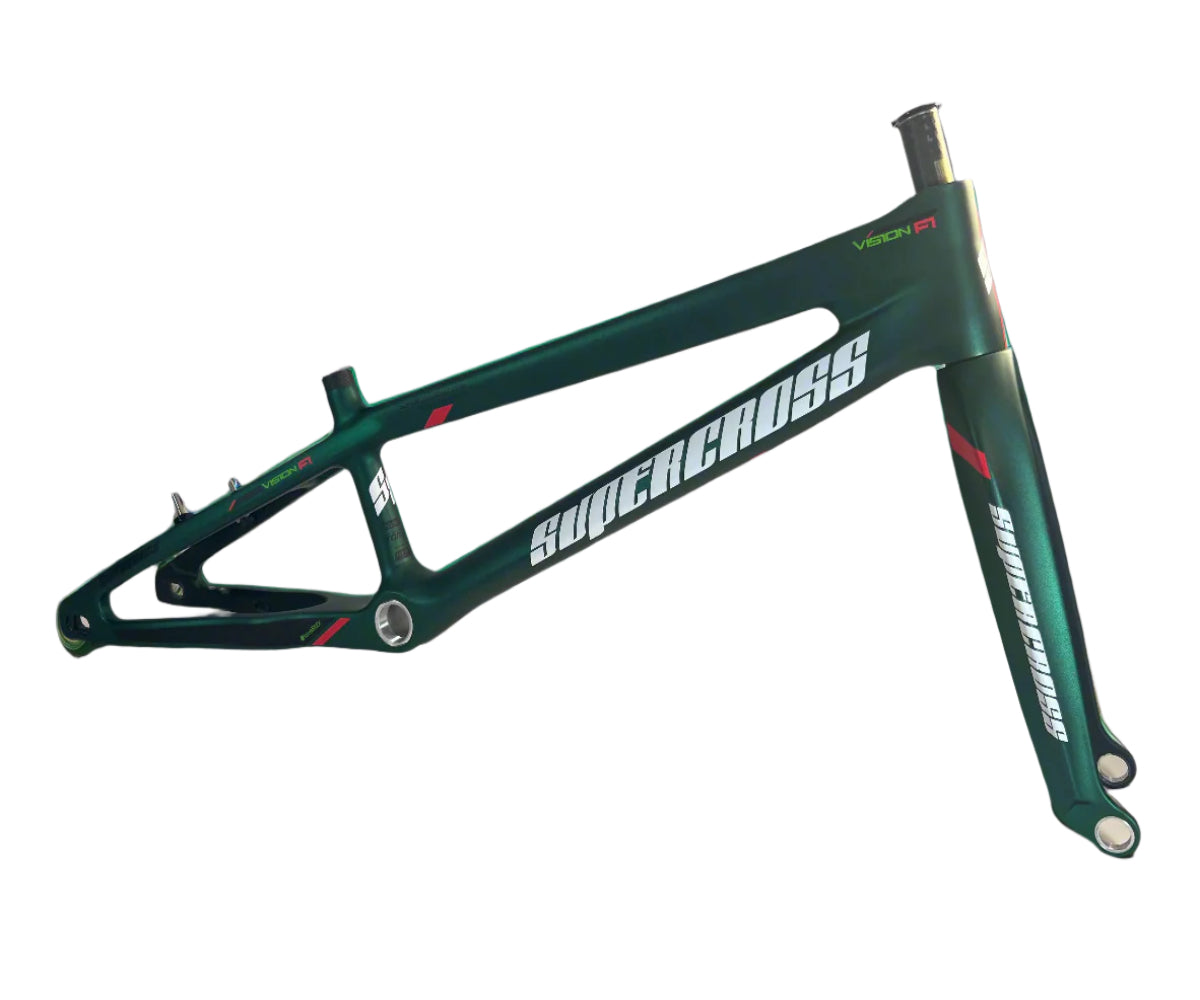

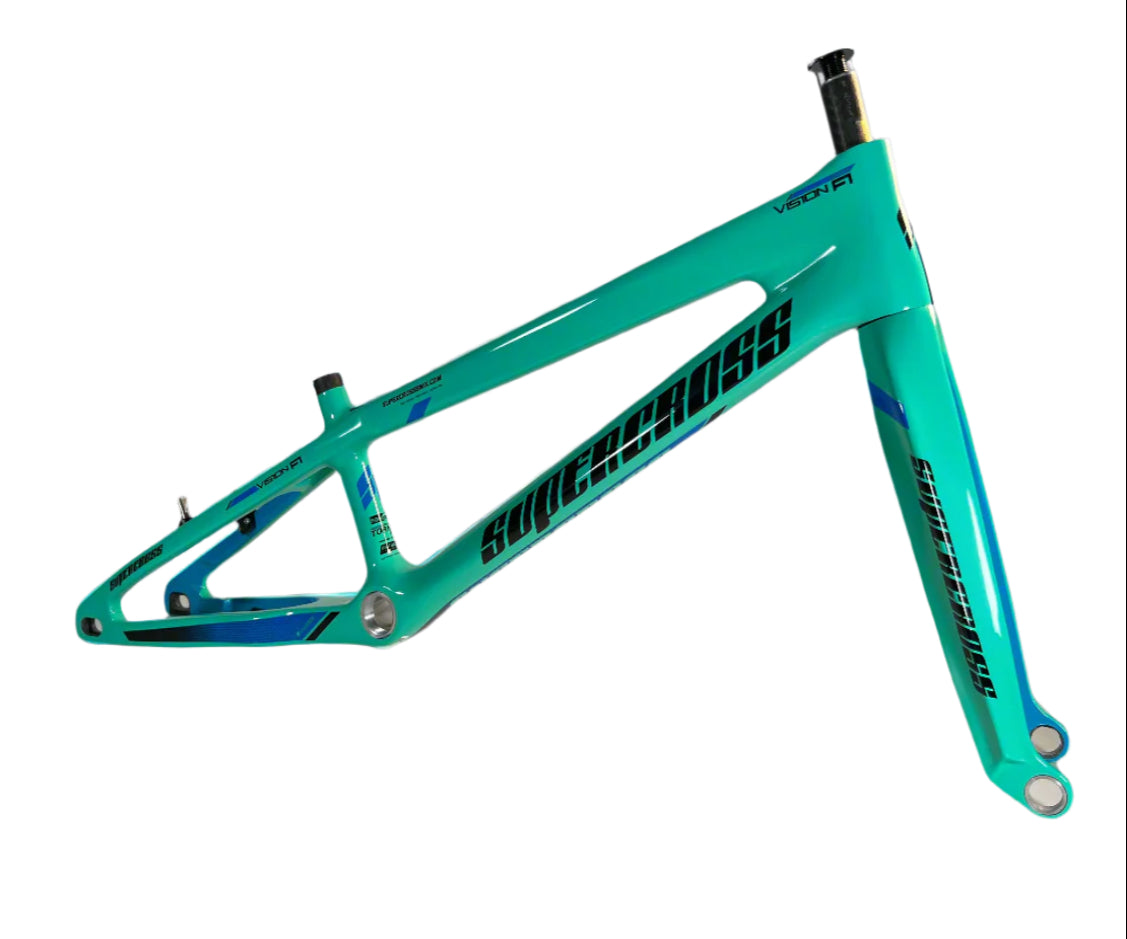

Supercross BMX | Vision F1 - Carbon Fiber Racing Chassis
Supercross BMX | SKU:
VIS-MIN-VIS
Regular price
$1,995.95 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Availability
Supercross BMX | Vision F1 - Carbon Fiber Racing Chassis - Mini / Hi Vis (Black/Flame Blue) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Supercross BMX | Vision F1 - Carbon Fiber Racing Chassis
Regular price
$1,995.95 USD
Unit price
/
Unavailable
Description
Description
See the full product description & videos here
- Monocoque (one-piece) frame and fork construction
- TORAYCA T1100-KS (frame) / TORAYCA T700S Nano Alloy Resin (forks)
- Accepts 120mm Disc Brakes & All V-Braking systems
- Fully captive, solid carbon rear dropout featuring the Supercross BMX FLIP/CHIP
- Built-in chain idler/guide
- Traditional Euro BB Shell bottom bracket
- Each Pro Chassis contains:
- 1 x Vision F1 Frame
- 1 x Vision F1 matching fork
- 1 x Steering tube top cap
- 1 x 20mm adapters
- 1 x Hydraulic disc brake adapter kit
- 1 x Mechanical disc brake adapter arm
- 2 x Removable V-Brake mounts
- 2 x FLIP/CHIP’s (15mm & 10mm)
- 1 x Chain Idler/Guide
- 1 x Sealed Bearing Headset
- Mini, Junior, Expert & Expert XL Chassis kits only contain 1 set of FLIP/CHIPs for the 100m axle size. They also use a 10mm front dropout on the fork.
FRAME GEOMETRY
Supercross BMX VISION F1 Carbon Race Frame Geometry Chart
| VISION F1 Carbon | Pro | Pro Plus | Pro XL | Pro XXL | Pro XXXL | XXXXL |
| A. Top Tube Length | 20.5" | 20.75" | 21.25" | 21.75" | 22.25" | 23" |
| B. Chainstay Length | 15.0" | 15.0" | 15.2" | 15.2" | 15.2" |
|
| C. Steertube Angle | 74.5º | 74.5º | 74.5º | 74.5º | 74.5º | 74.5º |
| D. Seat Tube Angle | 70º | 70º | 70º | 70º | 70º | 70º |
| E. Bottom Bracket Height | 11.6" | 11.6" | 11.6" | 11.6" | 11.6" | 11.6" |
| Seat Post Size | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Headset Type | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated |
| Wheel Size | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" |
| VISION F1 Carbon | Junior | Expert | Expert XL | Mini |
| A. Top Tube Length | 18.5" | 19.5" | 20" | 17.5 |
| B. Chainstay length | 12.5" | 13.75" | 14.0" | 12.0 |
| C. Steertube Angle | 73.5º | 74º | 74º | 72º |
| D. Seat Tube Angle | 70º | 70º | 70º | 70º |
| E. Bottom Bracket Height | 10.7" | 11.2" | 11.2" | 10.7" |
| Seat Post Size | 22.2mm | 22.2mm | 22.2mm | 22.2mm |
| Headset Type | Campy Integrated | Campy Integrated | Campy Integrated | Campy Integrated |
| Wheel Size | 20" X 1" | 20" X 1 3/8" | 20" X 1 3/8" | 20" X 1 1/8" |
* Specifications will vary depending upon your choice of Fork, Tire and Rim selection. Measurements are based off of a Supercross Fork and equal size (ie. 20X1.75 front and rear) tire combination. Specifications subject to change without notice.All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.
