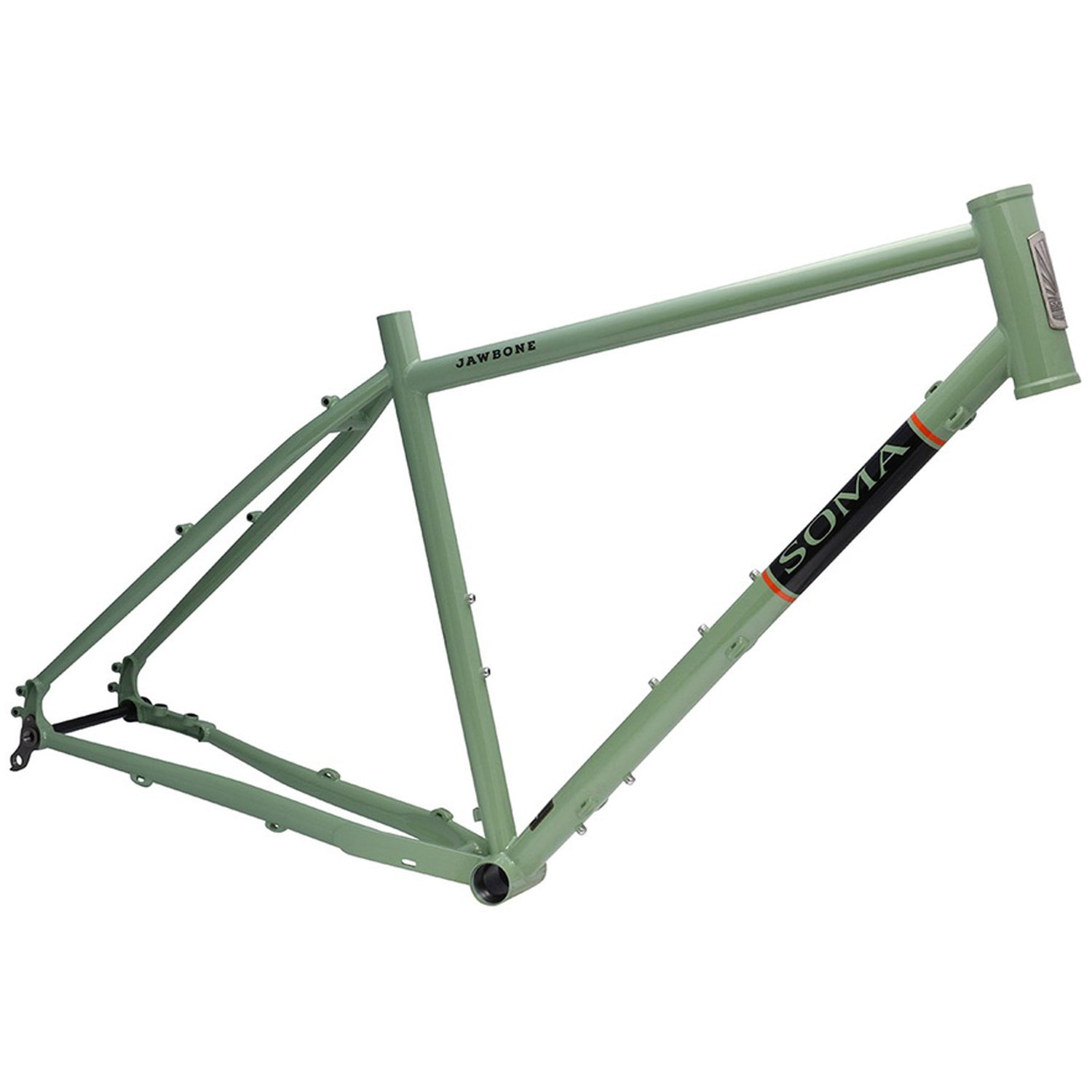

Soma Jawbone A-Type Frame 56cm 29" - Sage Green

Soma Jawbone A-Type Frame 56cm 29" - Sage Green

$795.95 USD
$795.95 USD $795.95 USD
Sale Sold out
Shipping calculated at checkout.

B-SF4002

  • The Jawbone A-Type frame is the perfect platform to build drop bar mountain touring and bike packing rig
  • Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end
  • Flat mount disc brake tabs on rear
  • Investment cast vertical dropout with replaceable stainless steel hanger. 12 x 142mm thru-axle
  • Front derailleur compatible (bottom pull)
  • Headset for optional 1-1/8 inch matching fork: SHIS: ZS44/28.6 | ZS44/30. If running a tapered steerer fork, get an EC44 lower cup
  • Rear rack and fender eyelets
  • Two sets of bottle cage bosses; one set of cargo cage bosses on downtube
  • 44mm headtube: Fits 1-1/8 inch steerer tubes and tapered steerer tubes with a headset swap
  • 27.2mm post size/28.6mm frt. der. size/29.8mm seat collar, 73mm bottom bracket (English threads)
  • Tire Width Range: 27.5 x 47mm to 2.5” / 700c x 38mm to 29 x 2.25”
  • For matching fork please consider YC4022
    • TECH SPECS
    model Jawbone A-Type
    size 56cm
    seat tube (c-t) 525mm
    top tube (effective, c-c) 569mm
    chainstay 445mm
    head angle 70.5 deg
    seat angle 73 deg
    bottom bracket 73mm
    seatpost 27.2mm
    front derail 28.6mm
    wheel size 29"
    dropout 12x142mm TA
    color sage green
