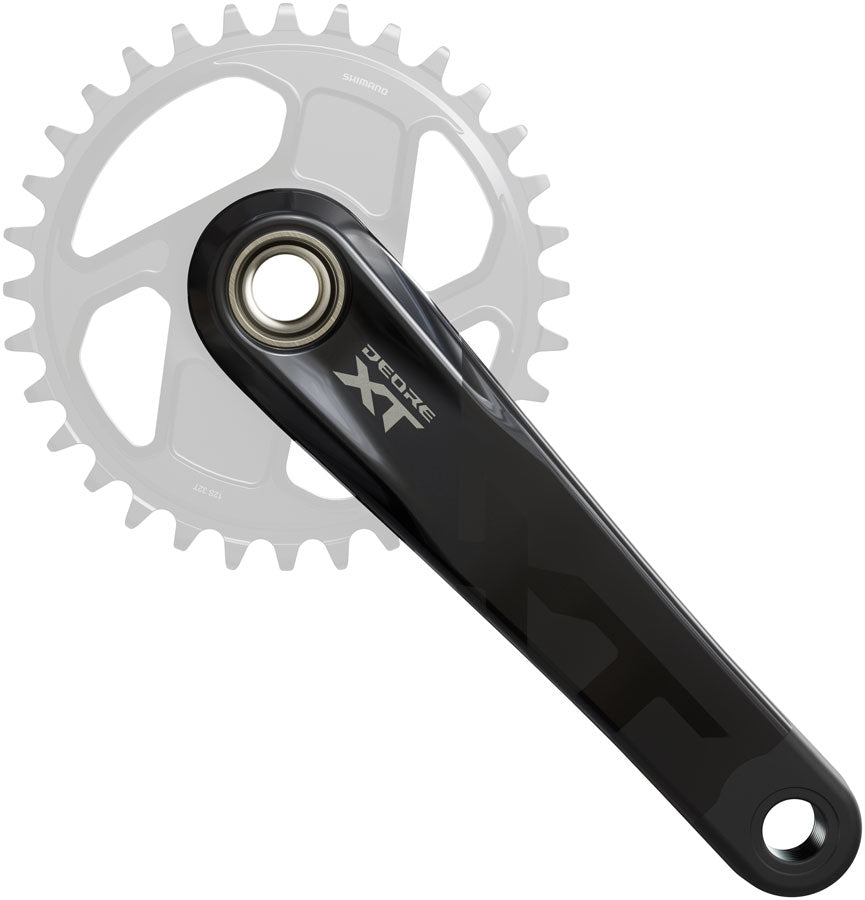

Shimano Deore XT FC-M8200 Crankset - 160mm 1x Direct Mount Hollowtech II Hollow-Forged Crankarms BLK

The Shimano FC-M8200 Deore XT crankset perfectly balances rigidity and weight using HOLLOWTECH II aluminum hollow-forging and a standard 24mm steel spindle to create a crankset that’s strong enough to survive burly impacts while remaining light enough for XC use. Combined with the reinforced SM-CR86 direct-mount chain ring (sold separately) there is a specification of FC-M8200 for every trail rider.

Perfected HOLLOWTECH II hollow-forging provides optimal weight stiffness and rigidity for both all-day trail riding and enduro racing

An optimized 176mm Q-Factor brings race-feel familiarity while a unified 55mm chain line offers maxed-out frame compatibility—no wheel or cassette changes required

M8200 cranks come standard with a 24mm spindle and are compatible with Shimano’s threaded and Press-Fit bottom brackets (bottom bracket sold separately)

Compatible with all SM-CRM86 chainrings (chainring sold separately)

Number of Chainrings	No Rings Included
Drivetrain Speeds	12
Chainline/Hub Compatibility	141/148 Boost Hubs
Color	Black
Crank Length (mm)	160
Crank Intended Use	Mountain
BB Included	No
Pedal Spindle	9/16"
Spindle Interface Type	Shimano Hollowtech II
Defined Color	Black
Size	160Mm
