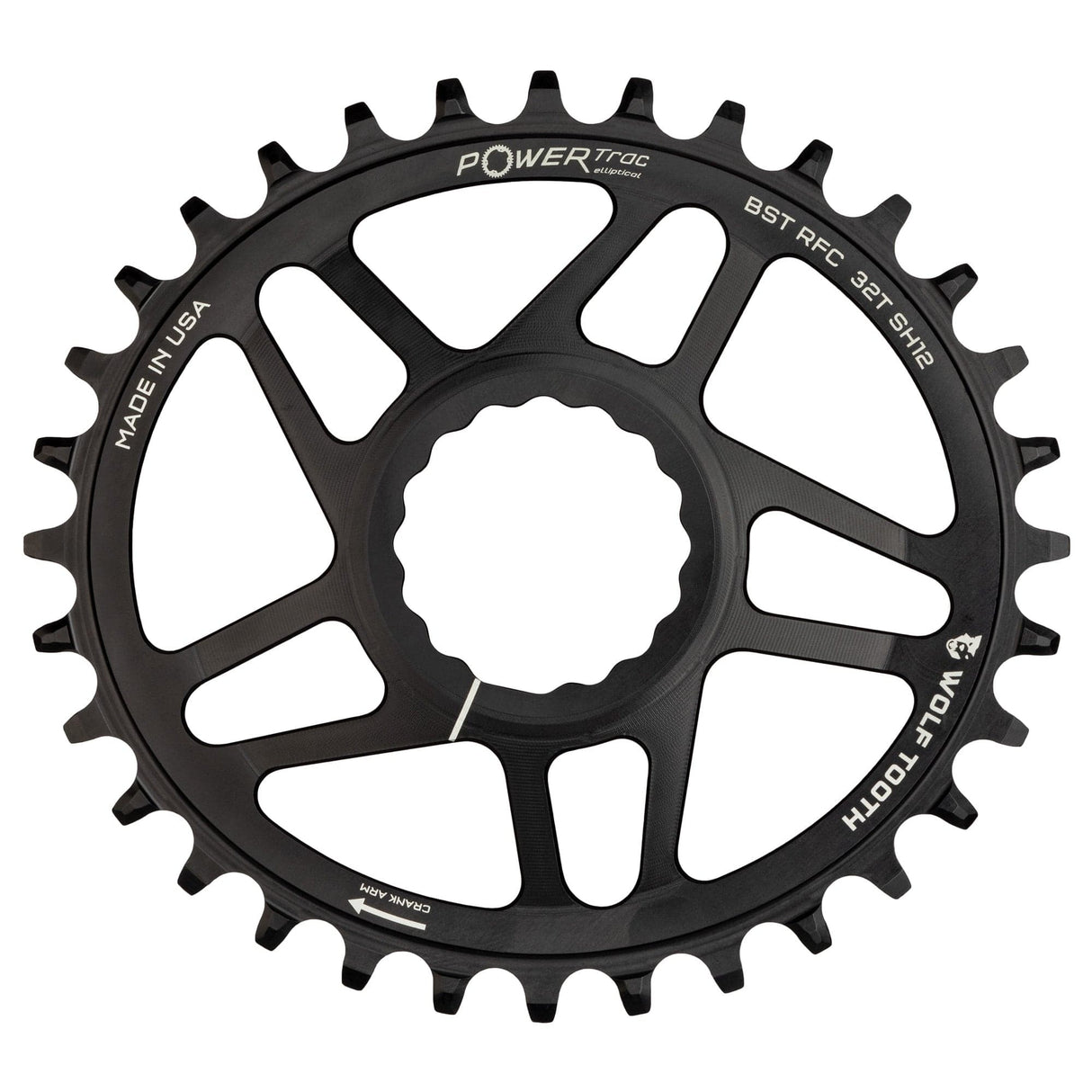

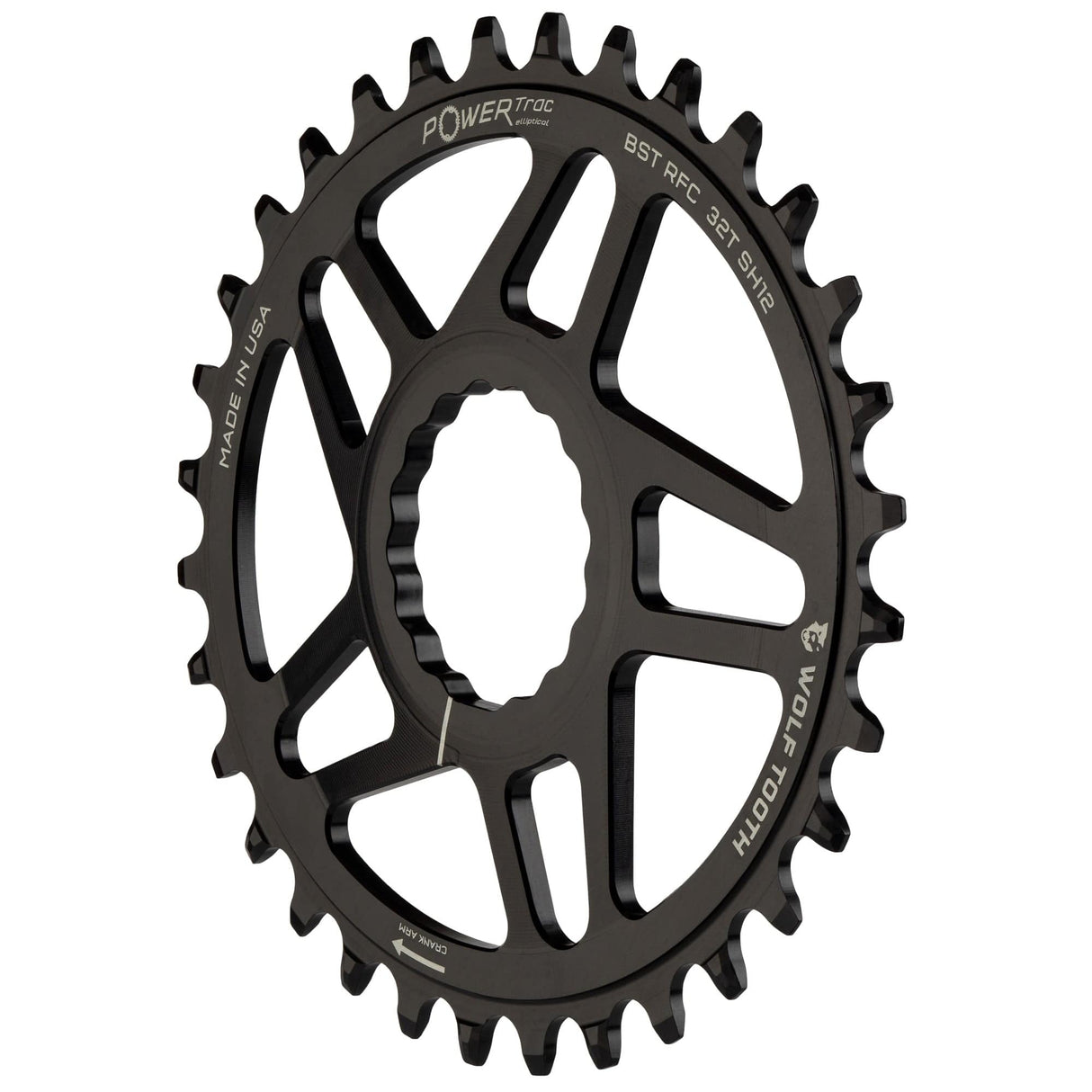

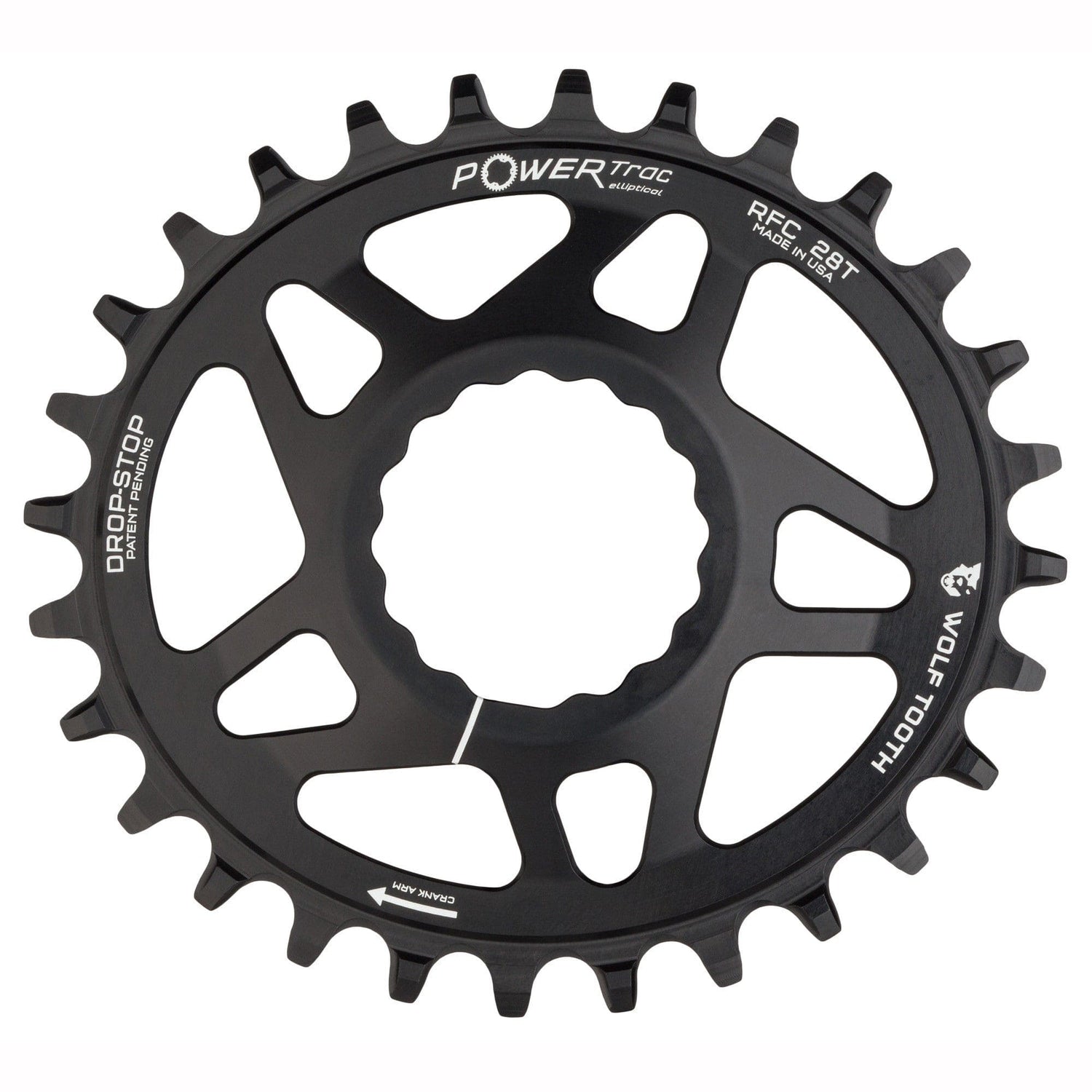

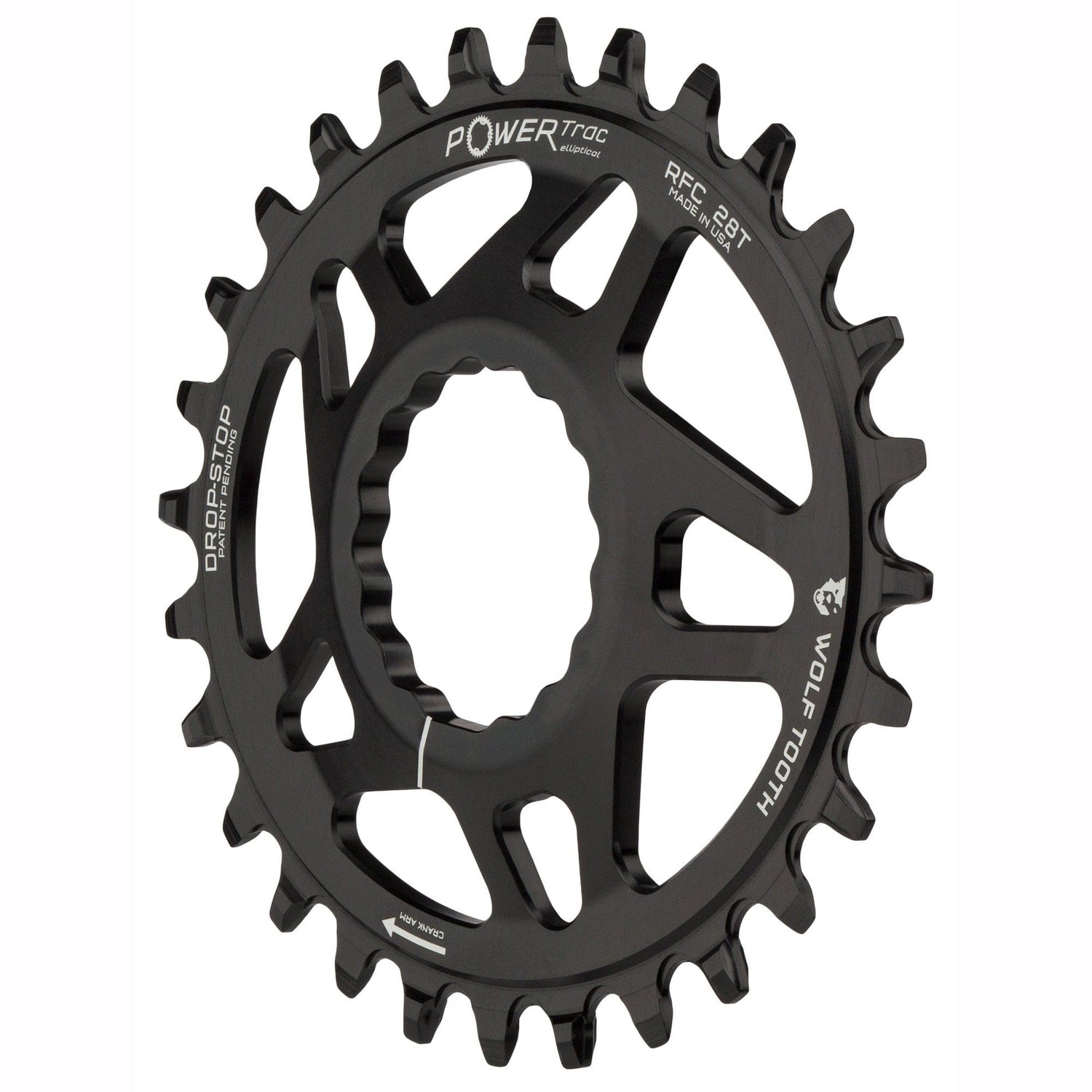

Oval Direct Mount Chainrings for Race Face Cinch - Drop-Stop A

Wolf Tooth Components | SKU: OVAL-RFC28

$45.17 USD $81.95

Shipping calculated at checkout.

Availability

Loading locations...

Tooth Profile

Drop-Stop A

Tooth Count

28T 30T 32T 36T

Offset

6mm Offset 3mm Offset

Product variants

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

These chainrings are for Race Face Cinch cranks such as Turbine, Next SL, Sixc & Aeffect. The Wolf Tooth Cinch chainrings feature our patented Drop-Stop® tooth profiles for the best wear life, chain retention and mud clearance. We have optimized tooth profiles for all 12, 11, 10, and 9-speed chains.

Compatibility

Any Race Face Cinch™ system crankset (including Next SL, Sixc, Turbine, Aeffect)
Riders using a Cinch crankset with a Super Boost 151mm spindle use a Cinch direct mount 3mm offset chainring.
Standard (142mm rear hub spacing) 6mm offset and Boost (148mm hub spacing) 3mm offset
Use a 3mm offset chainring for Super Boost applications running standard drivetrains.
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)

If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).

Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
Chainline 49mm (standard) and 52mm (Boost)

Recommendations

If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops and/or chainsuck.

Tech Specs

Weight: 28t • 54g | 30t • 58g | 32t • 63g | 36t • 72g
Material: 7075-T6 aluminum
Made in the USA

Patent and trademark information
