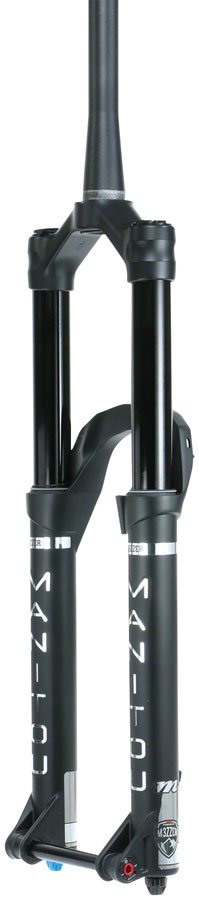

Manitou Mezzer Expert Suspension Fork - 27.5" 180 mm 15 x 110 mm 37 mm Offset BLK

Loaded with unprecedented features Mezzer gives you the handling and control you need for the ultimate enduro ride. Built around 37mm stanchions and a Reverse-Arch lower leg design with the Hexlock SL2 axle Mezzer is the stiffest chassis in its category.

37mm stanchions Reverse-Arch design and Hexlock SL2 axle for the ultimate stiffness

IVA Air Volume Adjustability

VTT Damper w/ 6-position compression and rebound adjustability

140mm to 180mm internally adjustable travel in 10mm increments (travel spacers included)

Integrated flexible fender can be installed/removed by three small screws threaded into the arch of the fork

Axle to Crown Length	564
Brake Type	Post Mount 180
Color	Black
Crown Race	40
Defined Color	Black
Designed for ebike	Yes
External Adjustments	Rebound Damping
Front Axle	15mm Thru x 110mm
Lockout Switch	Crown
Maximum Tire Width	74
Negative Spring	Air
Offset	37
Positive Spring	Air
S.H.I.S. Stem Clamp Diameter	28.6
Stanchion Diameter	37
Steerer Tube Length (mm)	251
Steerer Type	Tapered
Travel (mm)	180
Wheel Size	27.5"
