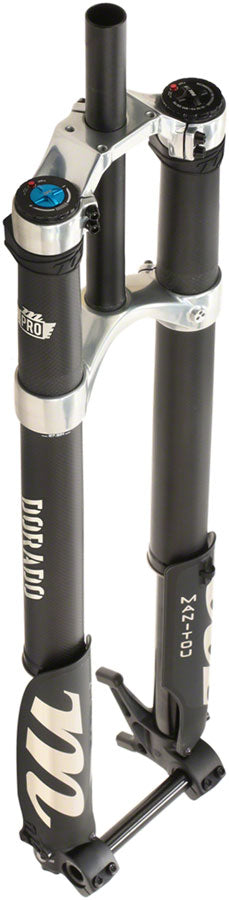

Manitou Dorado Pro Suspension Fork - 29" 203 mm 20 x 110 mm 57 mm Offset Straight Steerer BLK/Carbon Gen 2

Back in a big way the all-new Dorado Pro is ready to turn the suspension world upside down. Featuring an inverted design carbon upper structure 37mm stanchions and refreshed internals the new Dorado Pro is the pinnacle of suspension technology. The new stiffer chassis is paired with an all-new sealed version of Manitou’s TPC+ damper and improved Dorado Air Spring with IRT volume adjuster. These technologies combined into one ultimate platform provides more than enough tunability to satisfy any savvy suspension tuner while being so easy to adjust that every rider can dial in their fork with ease.

Lockout Switch	None
Brake Type	Post Mount 203
Negative Spring	Air
Travel (mm)	203
Offset	57
Axle to Crown Length	602
Front Axle	20mm Thru x 110mm
Maximum Tire Width	67
S.H.I.S. Stem Clamp Diameter	28.6
Color	Black/Carbon/Silver
Crown Race	30
Weight	2970
Wheel Size	29"
External Adjustments	High Speed Compression Damping
Defined Color	Black
Positive Spring	Air
Stanchion Diameter	37
Steerer Tube Length (mm)	251
