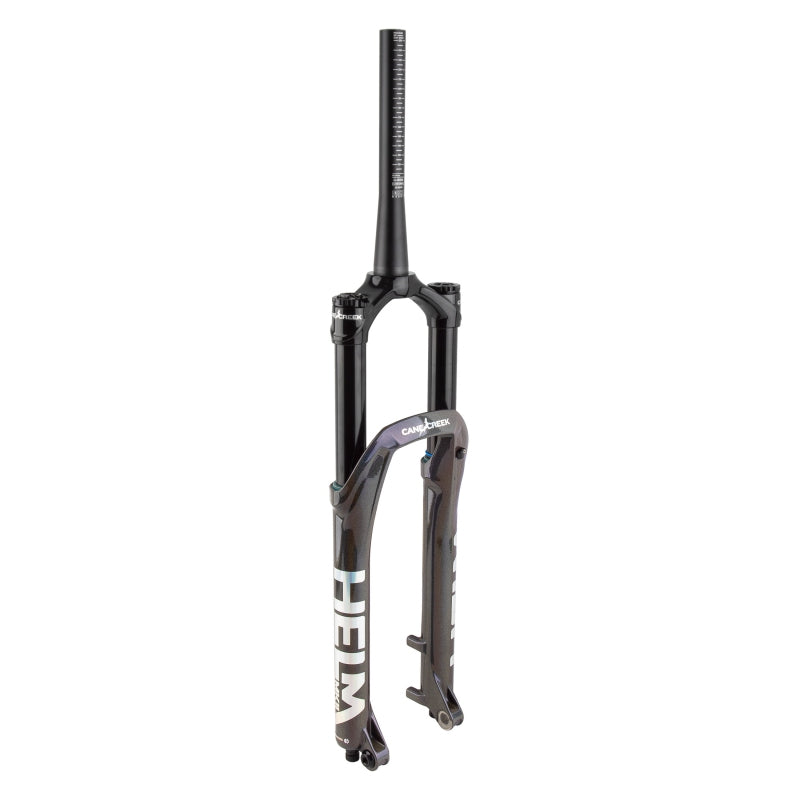

Cane creek Helm MKII Galaxy Air Suspension 29` Threadless 1-1/8 to 1.5` Post Disc Galaxy 44mm

Cane creek Helm MKII Galaxy Air Suspension 29` Threadless 1-1/8 to 1.5` Post Disc Galaxy 44mm

$1,099.99 USD
$1,099.99 USD $1,099.99 USD
Sale Sold out
Shipping calculated at checkout.

J28985

  • Double air spring system with independent positive and negative chambers
  • Adjustable from 130 to 160mm of travel internally
  • Redesigned air spring with threadless air seal head for service and travel change ease
  • Damper: Low speed rebound in addition to high and low speed compression adjustable; with 2.5wt damper oil and 11% lighter viscosity
  • Air volume adjustment with internal indexed system
  • Threadless aluminum steerer
  • 35mm low friction anodized upper tubes with SKF wiper seals
  • Post mount brake: minimum 180mm rotor with 210mm maximum rotor size
  • Boost 110: allows for a hub with a wider hub flange that provides the rider with a stiffer wheel for more precise steering
  • D-Loc 15mm bolt-on thru-axle
  • 27.5 inch+: 75mm wide by 739mm tall maximum tire size
  • 29 inch: 64mm wide by 749mm tall maximum tire size
    • TECH SPECS
    model Helm MKII Air
    wheel size 29"/27.5"+
    steerer (stem/race) tapered (28.6/40mm)
    offset 44mm
    travel 160mm (internally adjustable 130-160mm)
    spring type air
    brake mount disc only (PM-180)
    dropout 15x110mm Boost
    weight 2080g
    color Galaxy Ltd Edition
