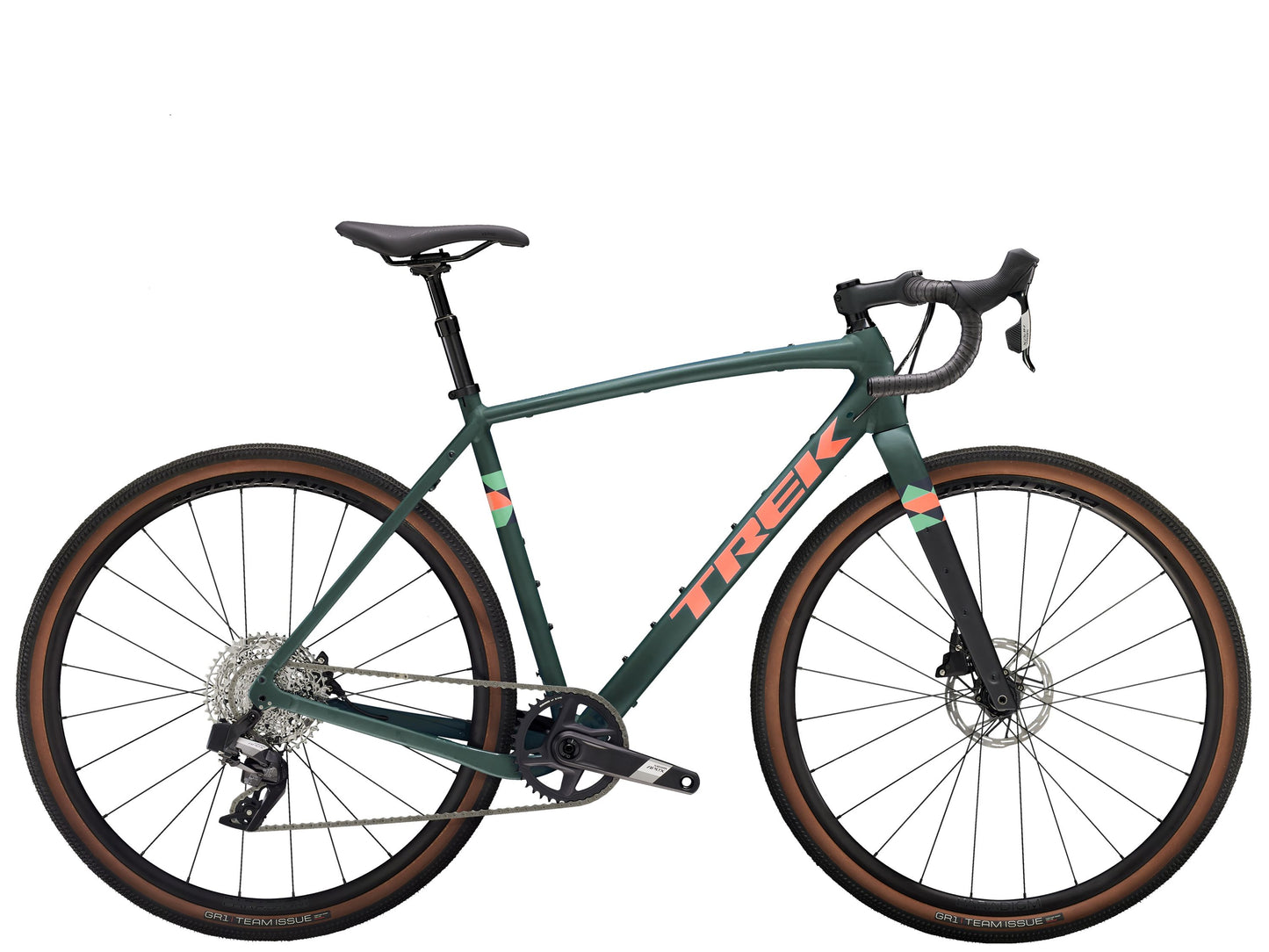

Checkpoint ALR 5 AXS 61 Matte Juniper

Checkpoint ALR 5 AXS is a high-value alloy gravel bike thats kitted out with electronic shifting and quality parts for long, rugged, miles on anything from chunky gravel to smooth pavement. A wealth of features like nimble yet stable progressive geometry, loads of mounts for epic bikepacking adventures, plus a SRAM Apex AXS 1x12 speed drivetrain makes customizing for any adventure easy.

• Its progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
• You get serious versatility thats suited for a wide variety of ride styles, from gravel and bikepacking to daily commutes
• The SRAM Apex 1x12 speed electronic drivetrain allows for unprecedented shifting speeds and ease of maintenance.
• Massive tire clearance means you can use tires up to 45c for extra traction and stability in any conditions
• Integrated frame bag mounts and rack and fender mounts make it easy to carry gear and water

New progressive geometry

For quick, nimble handling that still keeps you stable and in control on rougher descents.

Tire clearance

Lots of clearance means you can run meatier tires (700x45mm or 27.5x2.1") for tackling chunkier gravel and terrain.

Tons of mounts

Integrated frame bag and fender mounts make it easy to carry gear and water.

Don’t forget your pedals

This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style.

Fork	Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Wheel Front	/
Tire	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
Tire Part	Bontrager TLR sealant, 6oz
Hub Front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Hub Rear	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rim	Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Rim Strip	Bontrager TLR
Skewer Front	Bontrager Switch thru axle, removable lever
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	SRAM Apex, 12 speed // SRAM Apex AXS, 12 speed
Rear Derailleur	SRAM Apex XPLR eTap AXS, 44T max cog
Crank	SRAM Apex 1, 40T, DUB Wide, 175mm length
Bottom Bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM XPLR PG-1231, 11-44, 12 speed
Chain	SRAM Apex, 12 speed
Brake	SRAM Apex hydraulic disc, flat mount
Brake Rotor	SRAM Paceline, rounded, centerlock, 160mm
Saddle	Bontrager Verse Comp, steel rails, 145mm width
Seatpost	Easton EA70 AX, 27.2mm, 0mm offset, 50mm travel
Handlebar	Bontrager Elite Gravel, 44cm width
Stem	Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length

Geometry Chart

B B Drop	7.4
Chainstay Length	43.5
Eff Top Tube	61.7
Frame Reach	41.7
Frame Size Number	61 cm
Frame Stack	63.9
Head Angle	72.6°
Head Tube Length	19.5
Offset	4.5
Seat Tube	61
Seat Tube Angle	72.1°
Standover	85.9
Trail	6.5
Wheelbase	107
Wheel Size	700c
