Direct Mount Chainrings for SRAM 8-Bolt Gravel / Road Cranks

Description

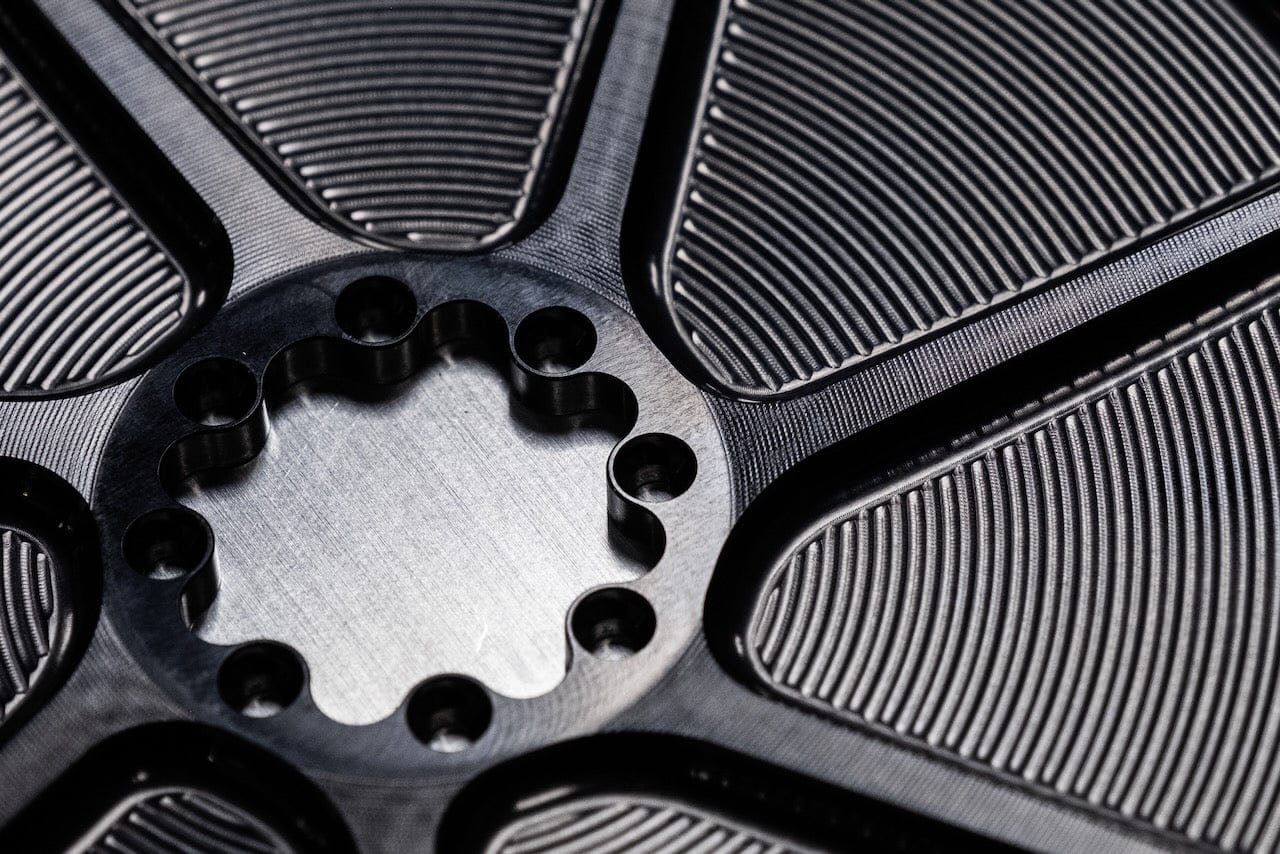

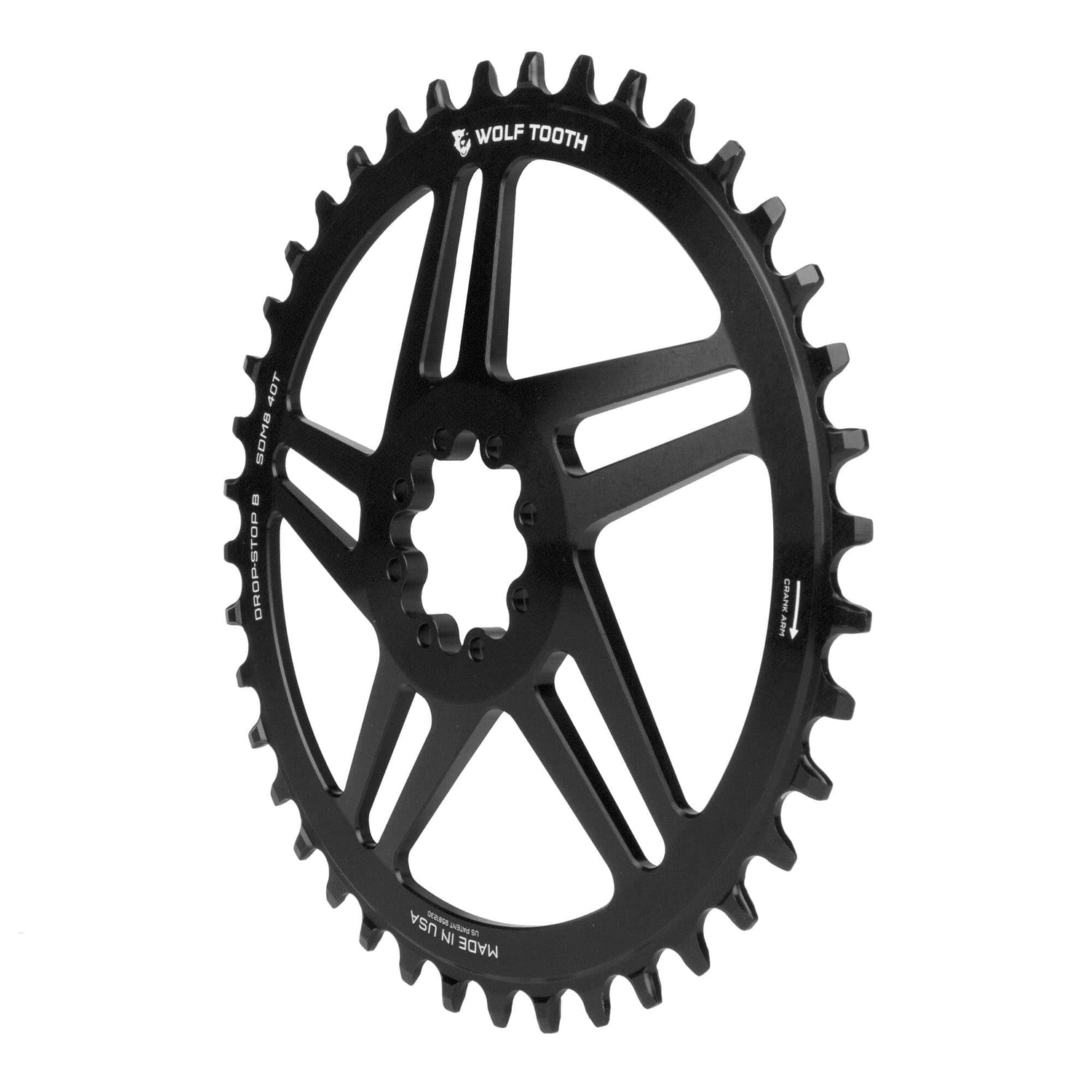

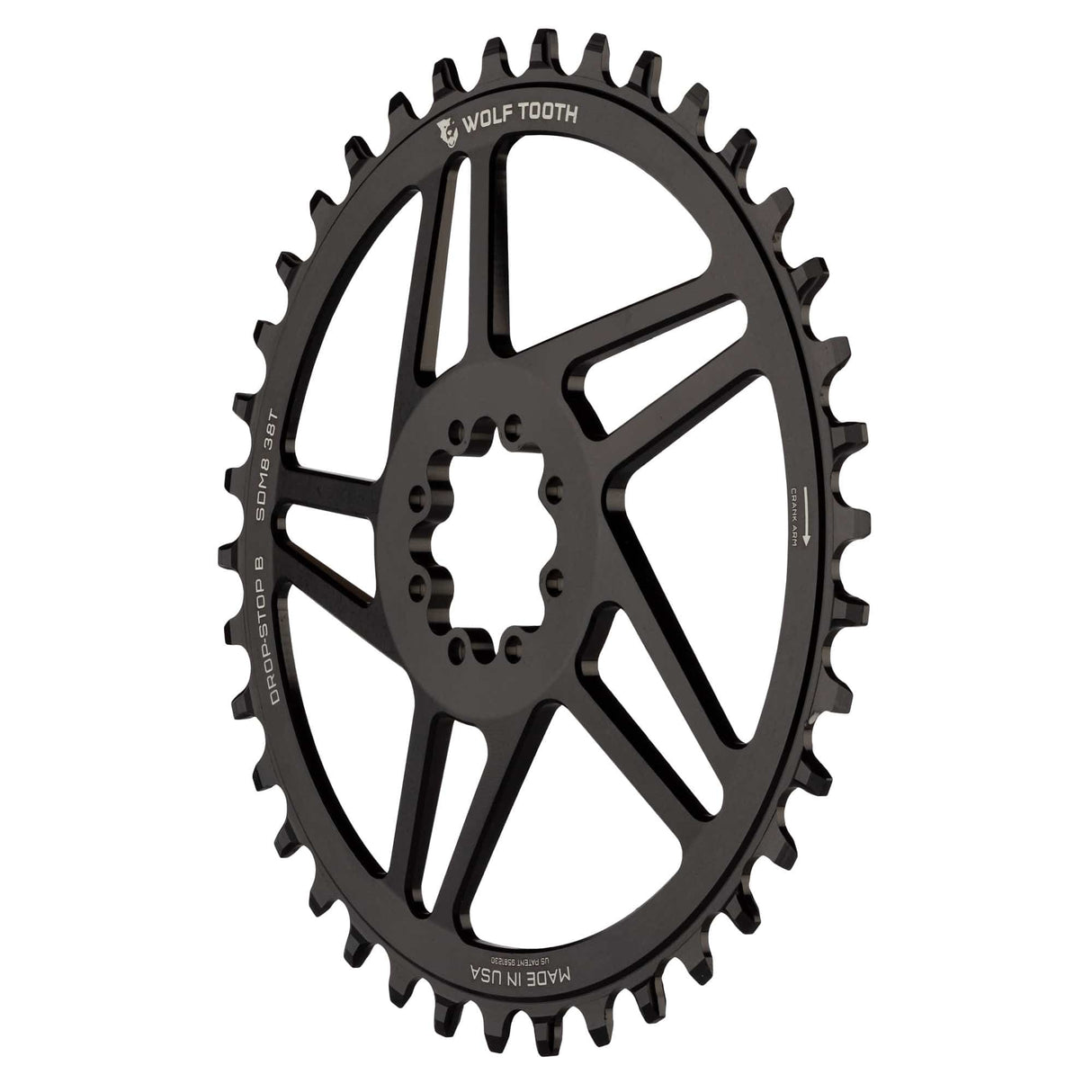

Wolf Tooth Direct Mount Chainrings for SRAM 8-bolt Cranks replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. Drop-Stop B is optimized for SRAM Eagle and Flattop chains.

Compatibility

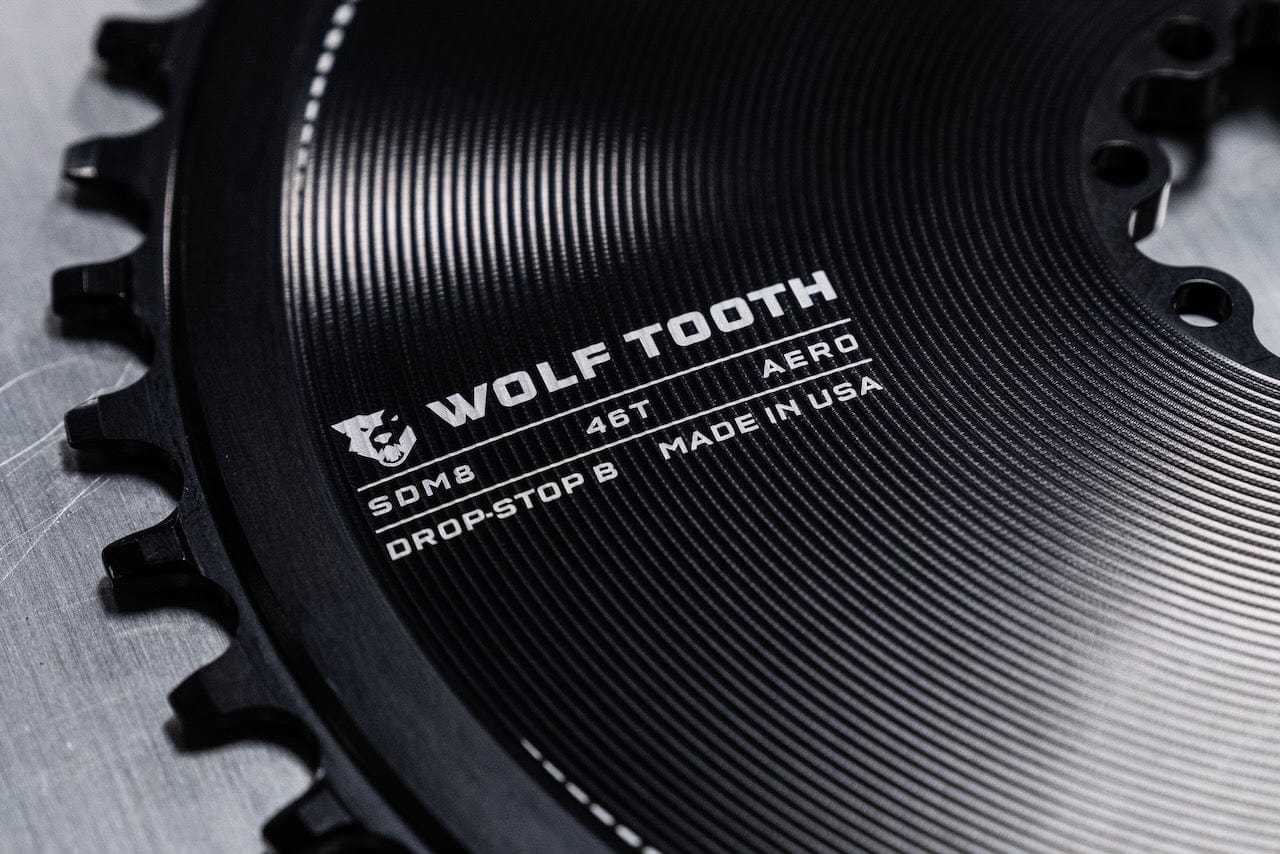

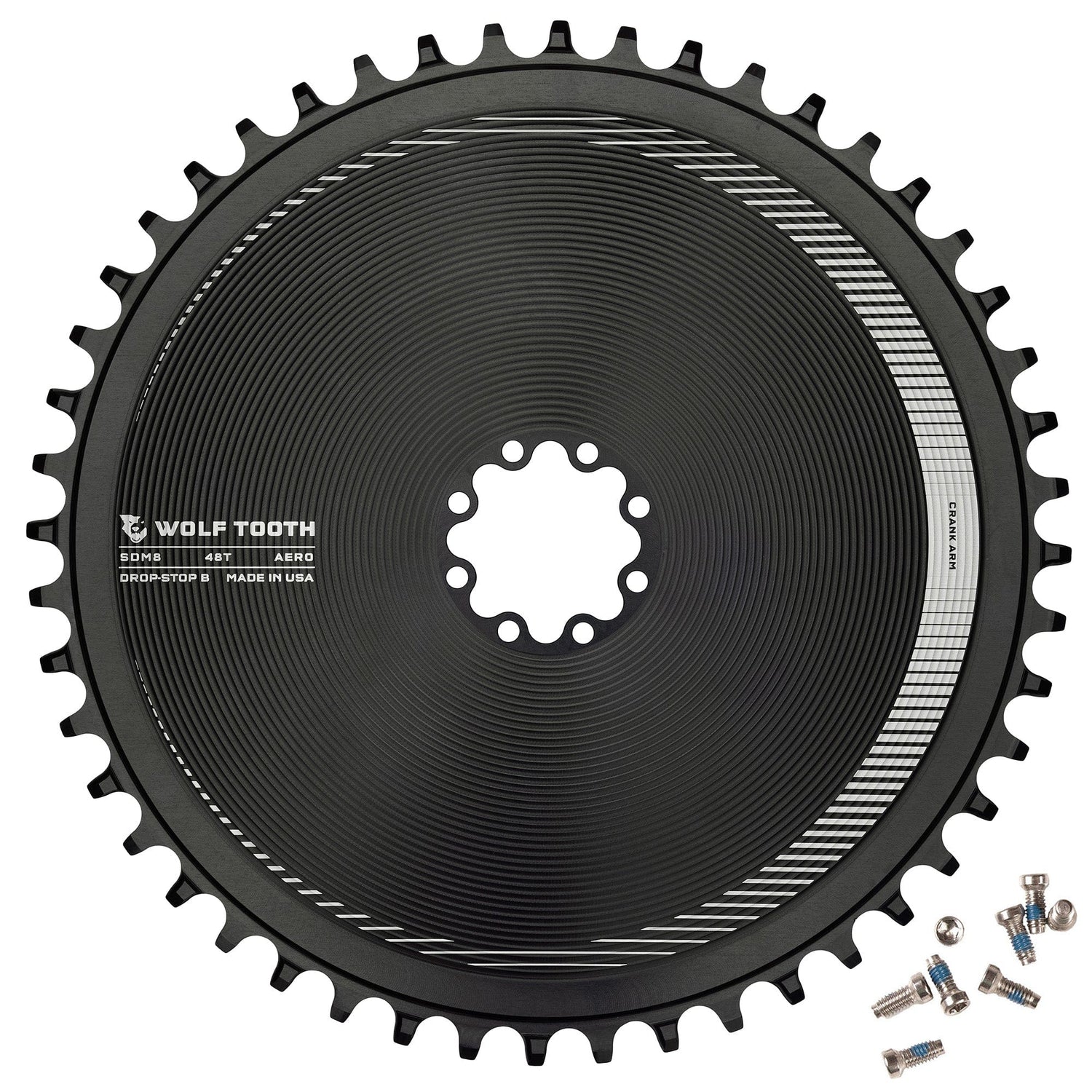

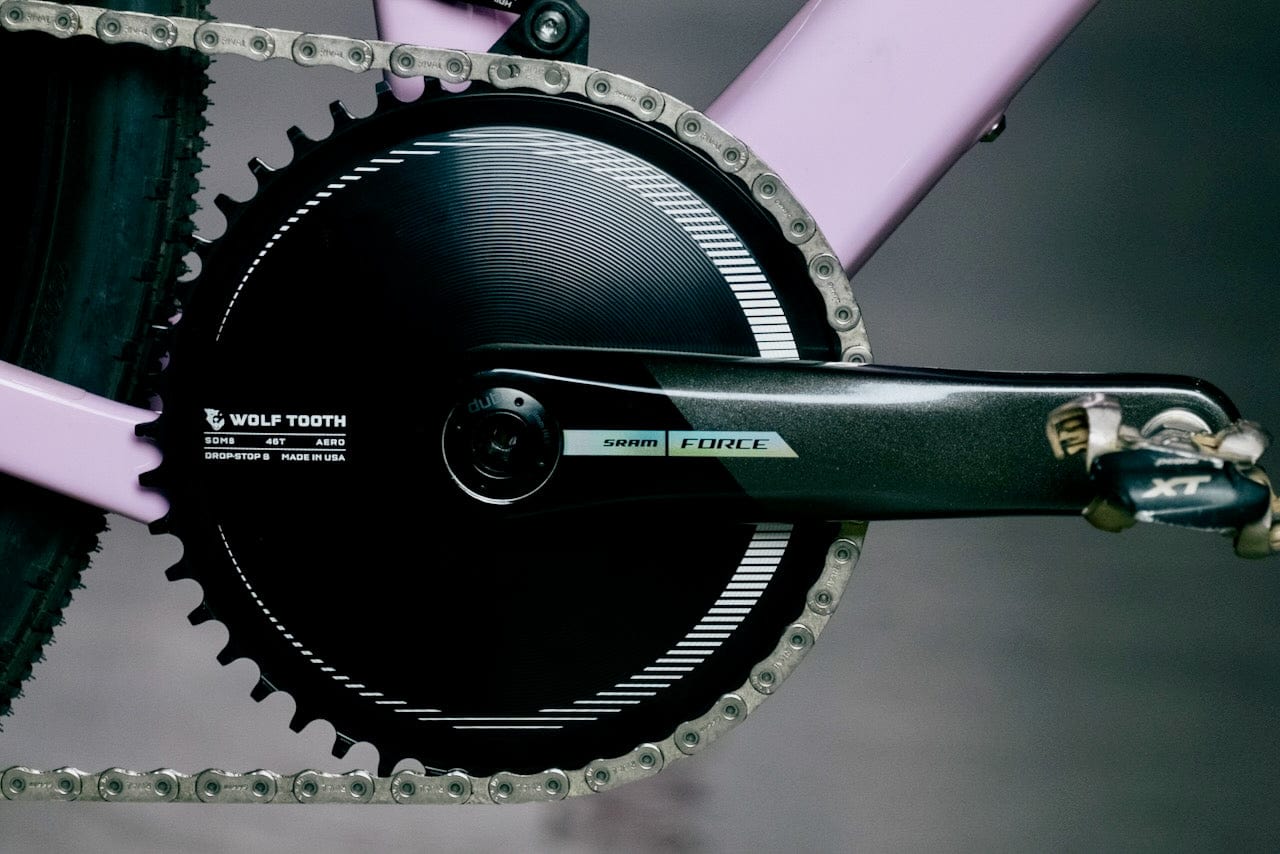

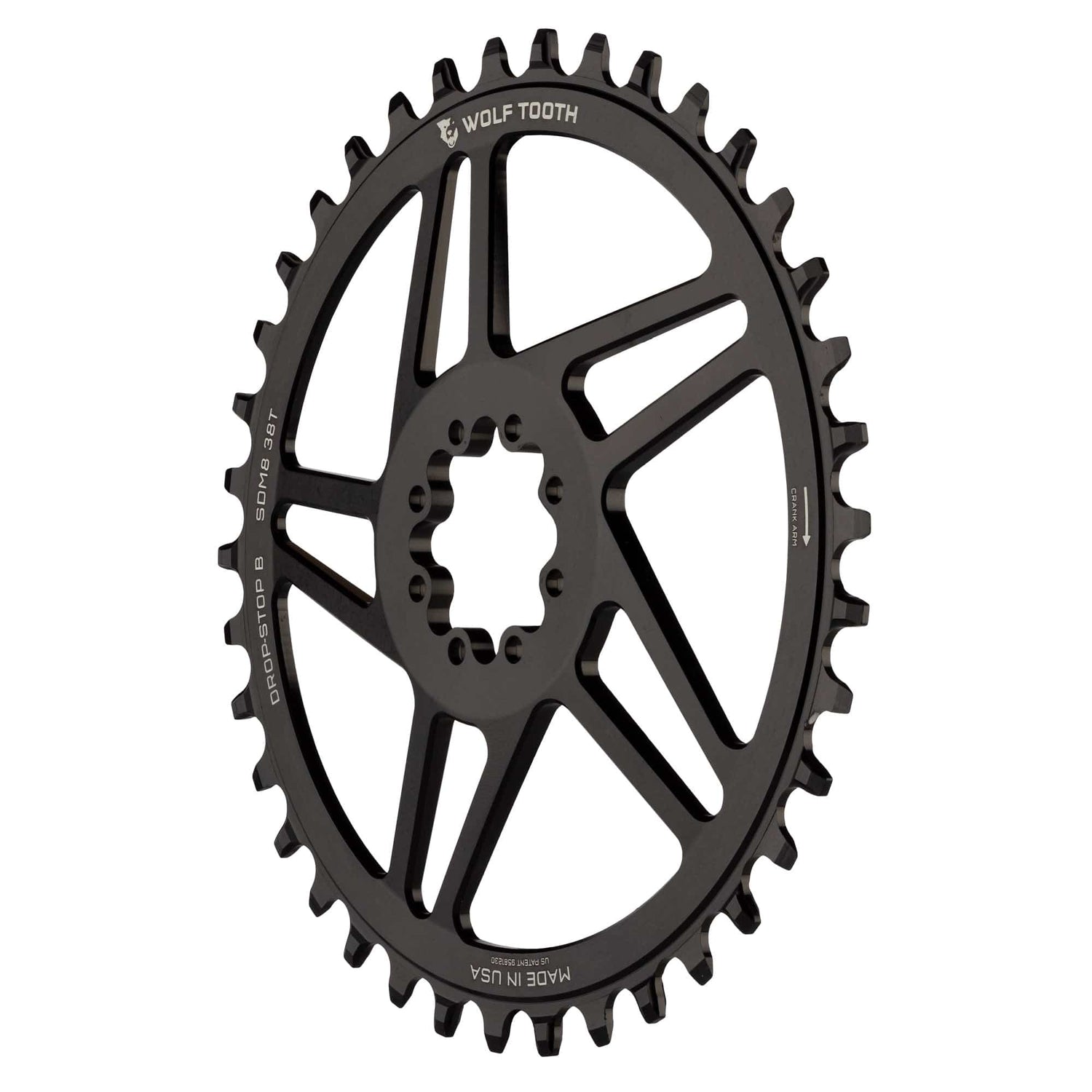

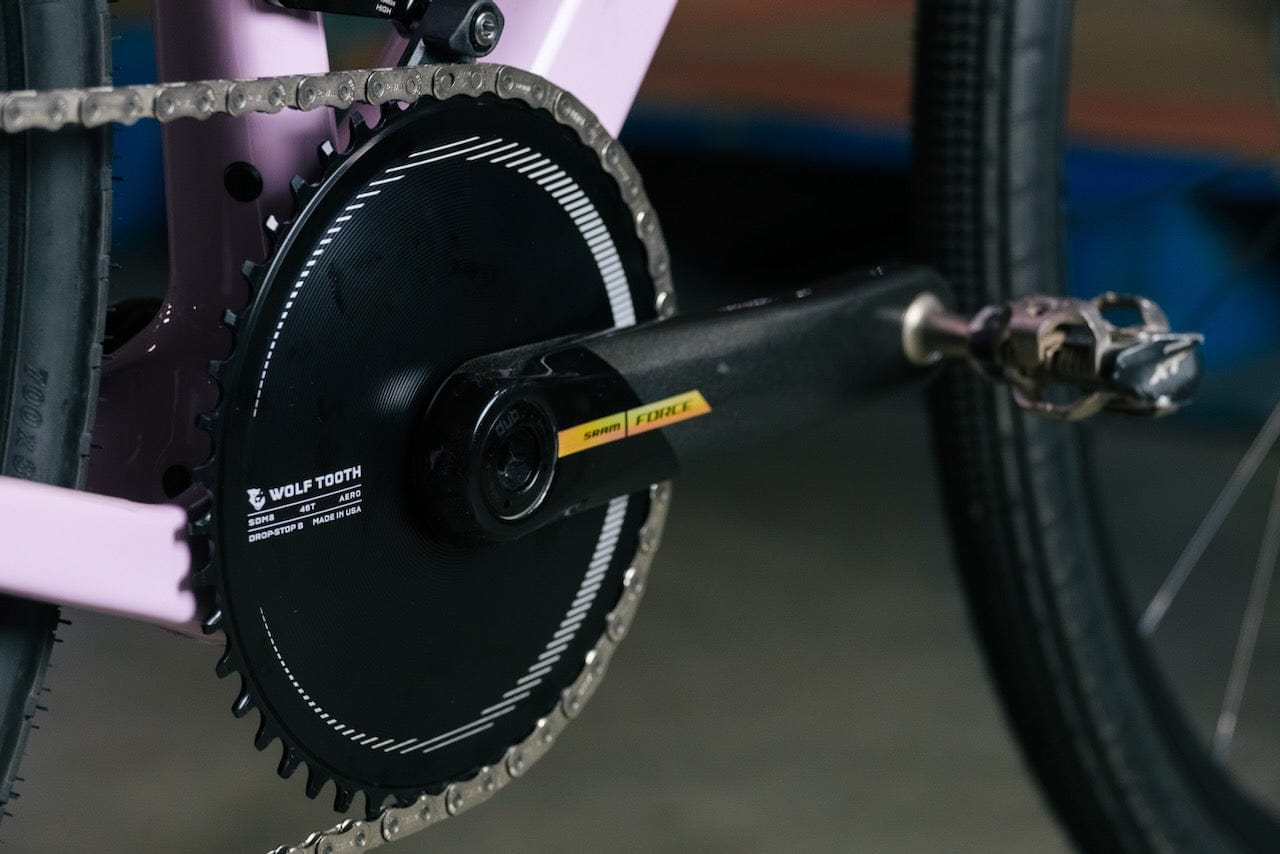

Aero chainrings available in 46-52T. Sizes 38-44T are non-aero.

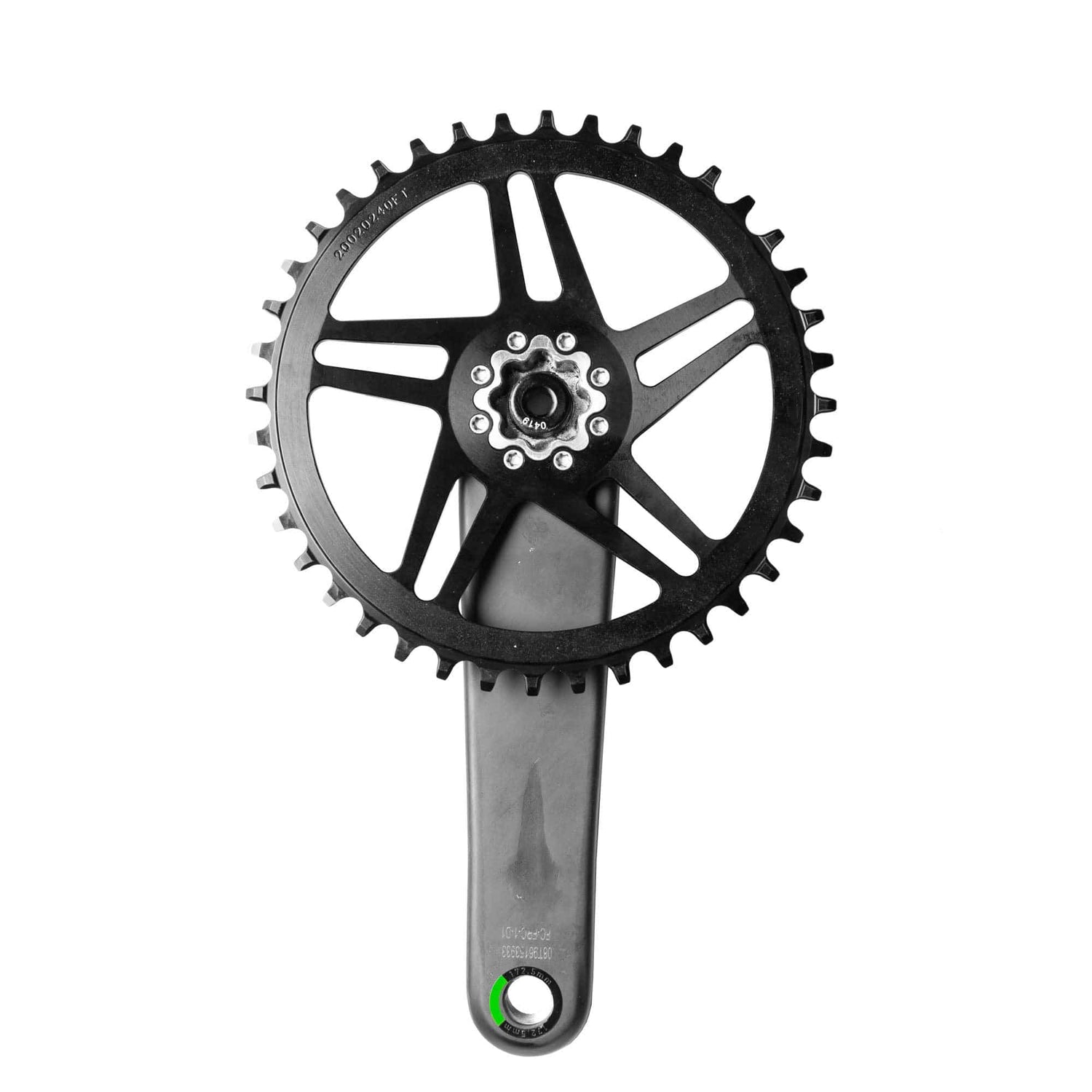

These direct mount chainrings will replace your existing chainring and spider or replace the direct mount chainring for SRAM AXS cranksets, 2025 Cane Creek eeWings Titanium Cranks (8-bolt), and other cranks that use the 8-bolt mounting standard.

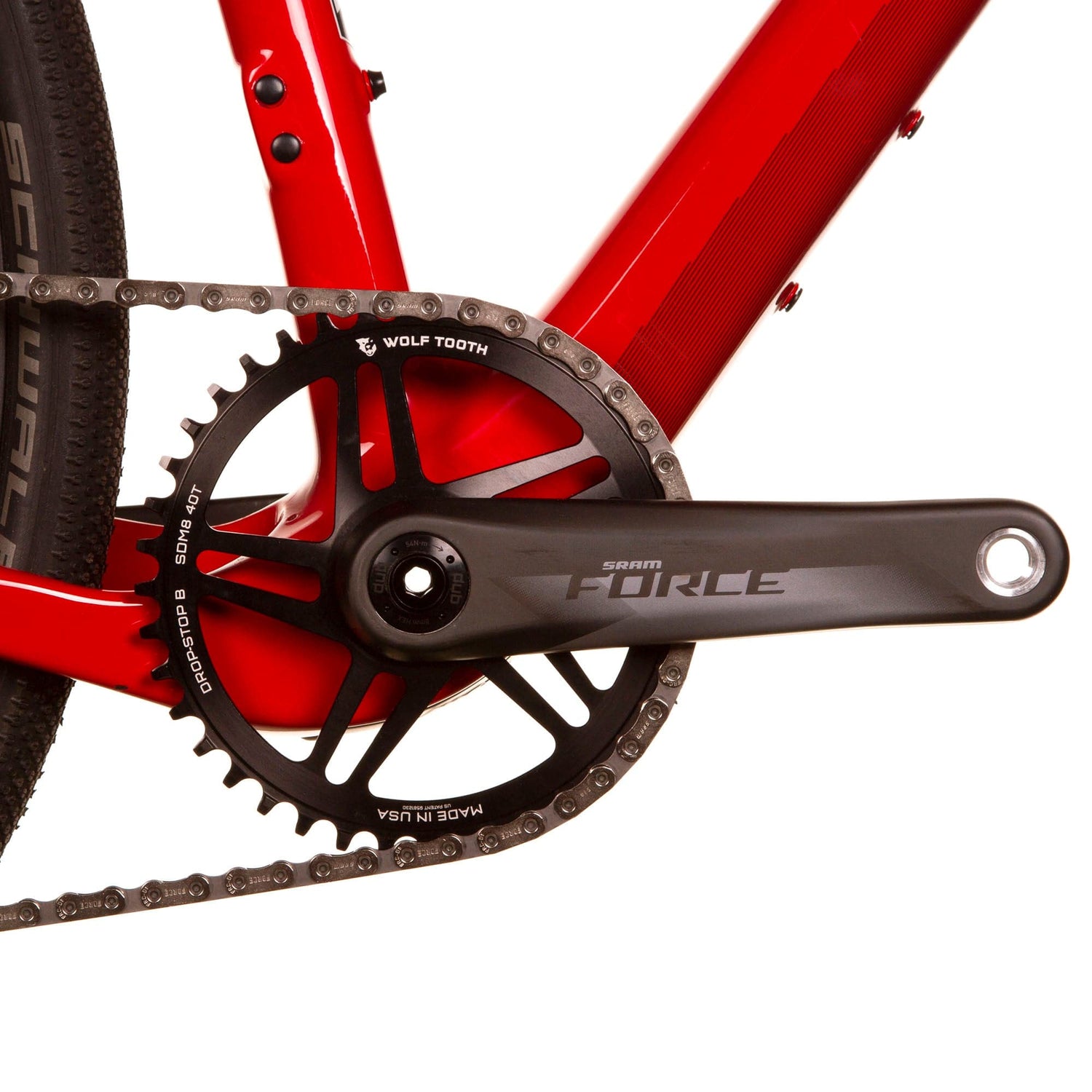

SRAM Direct Mount DUB road cranksets use the 8-bolt mounting standard. Any of those cranksets with a removable spider also use the 8-bolt mount.

Compatible with SRAM 12-speed and 13-speed groupsets including SRAM Red XPLR AXS.
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability.
For 38-52T chainringsChainline is 45mm on standard spindle cranks and 47.5mm on wide spindle cranks.

Recommendations

Recommend the use of a clutch-style rear derailleur for the best chain security

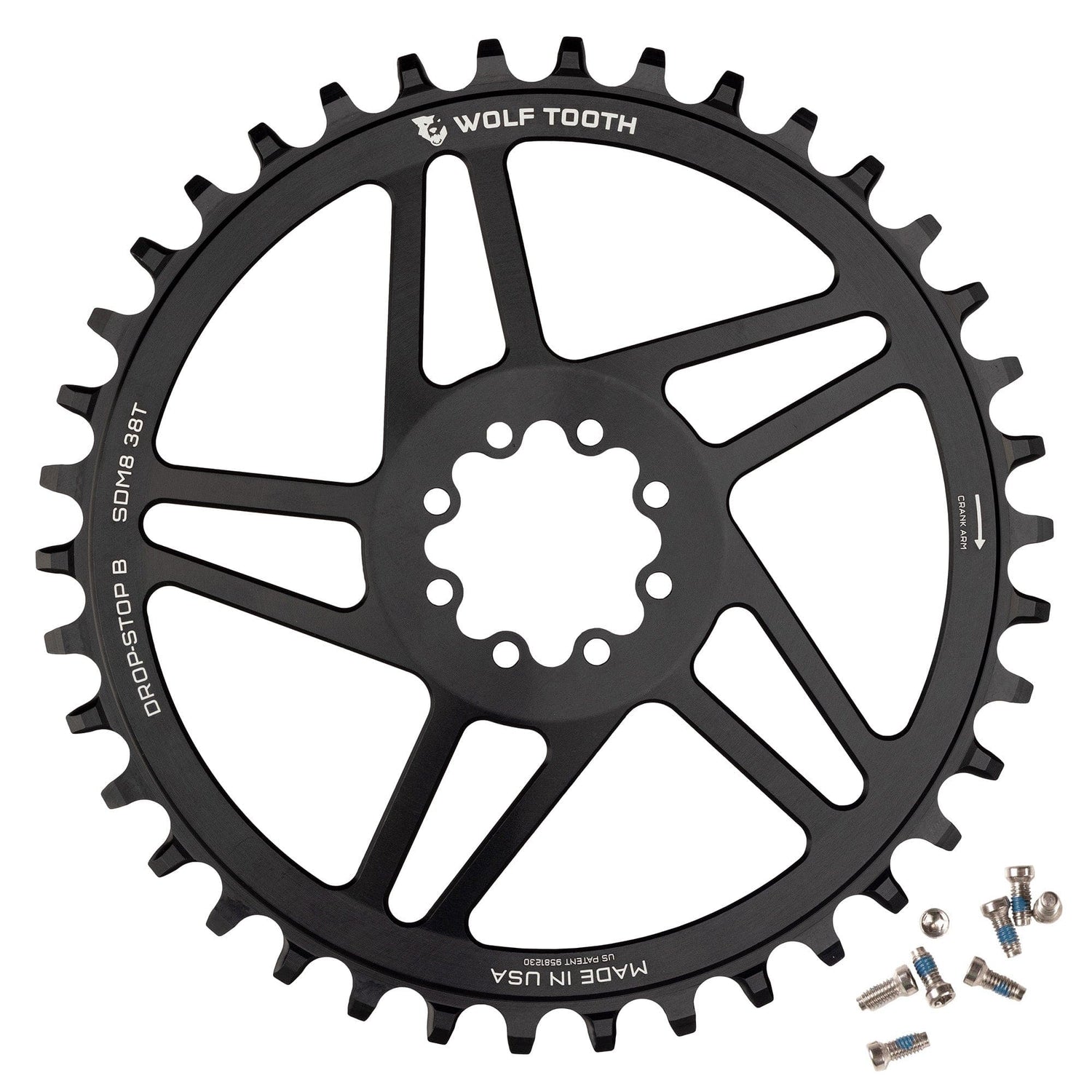

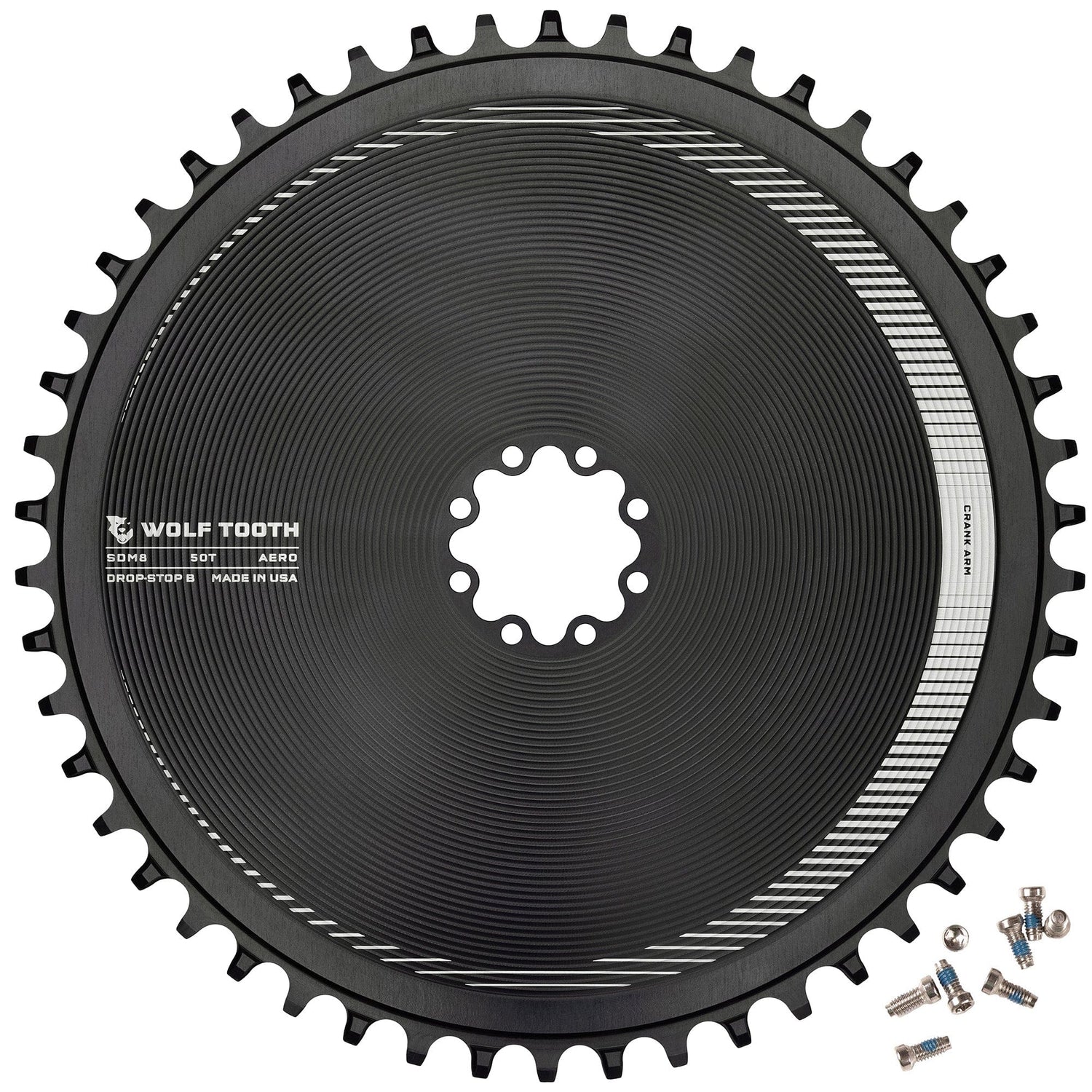

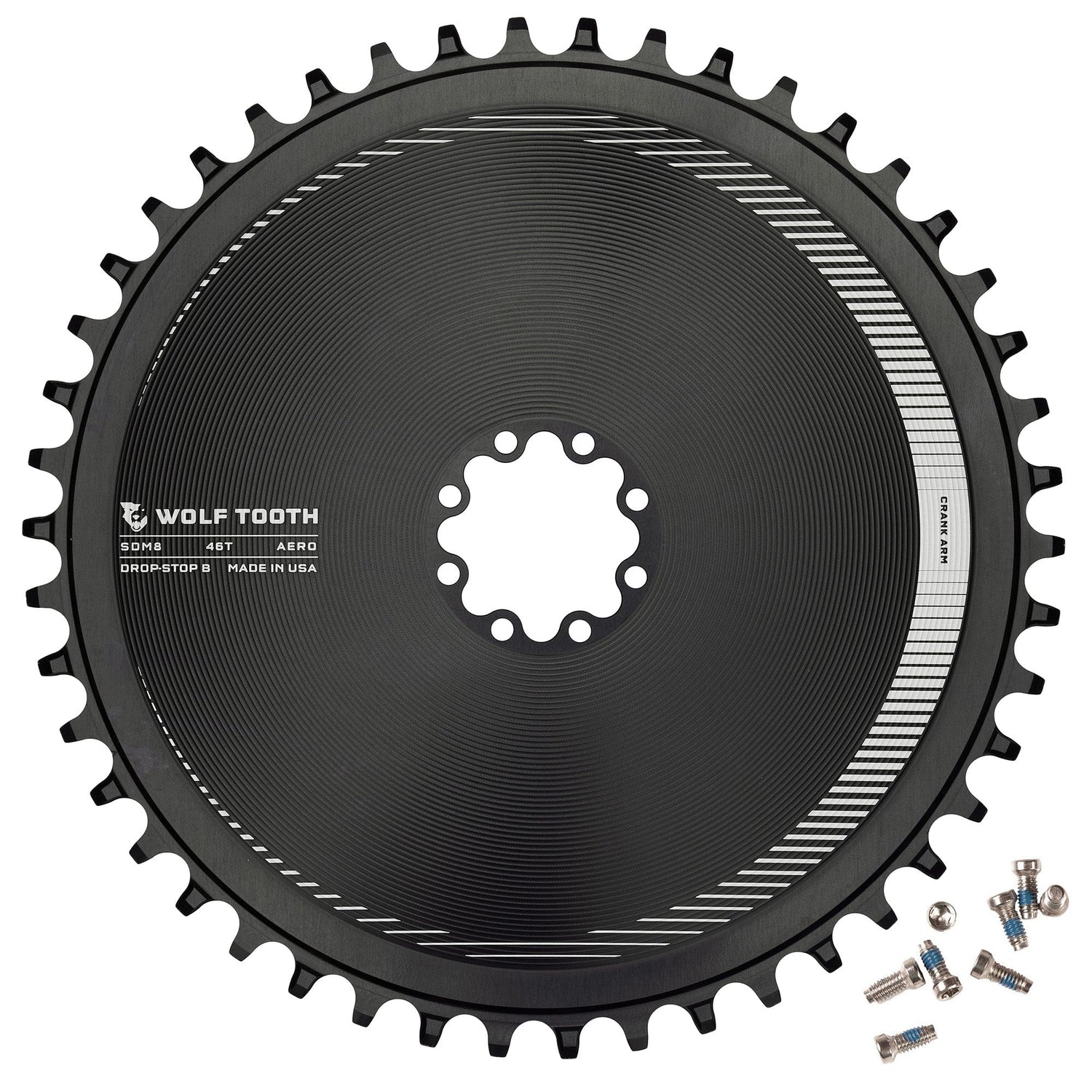

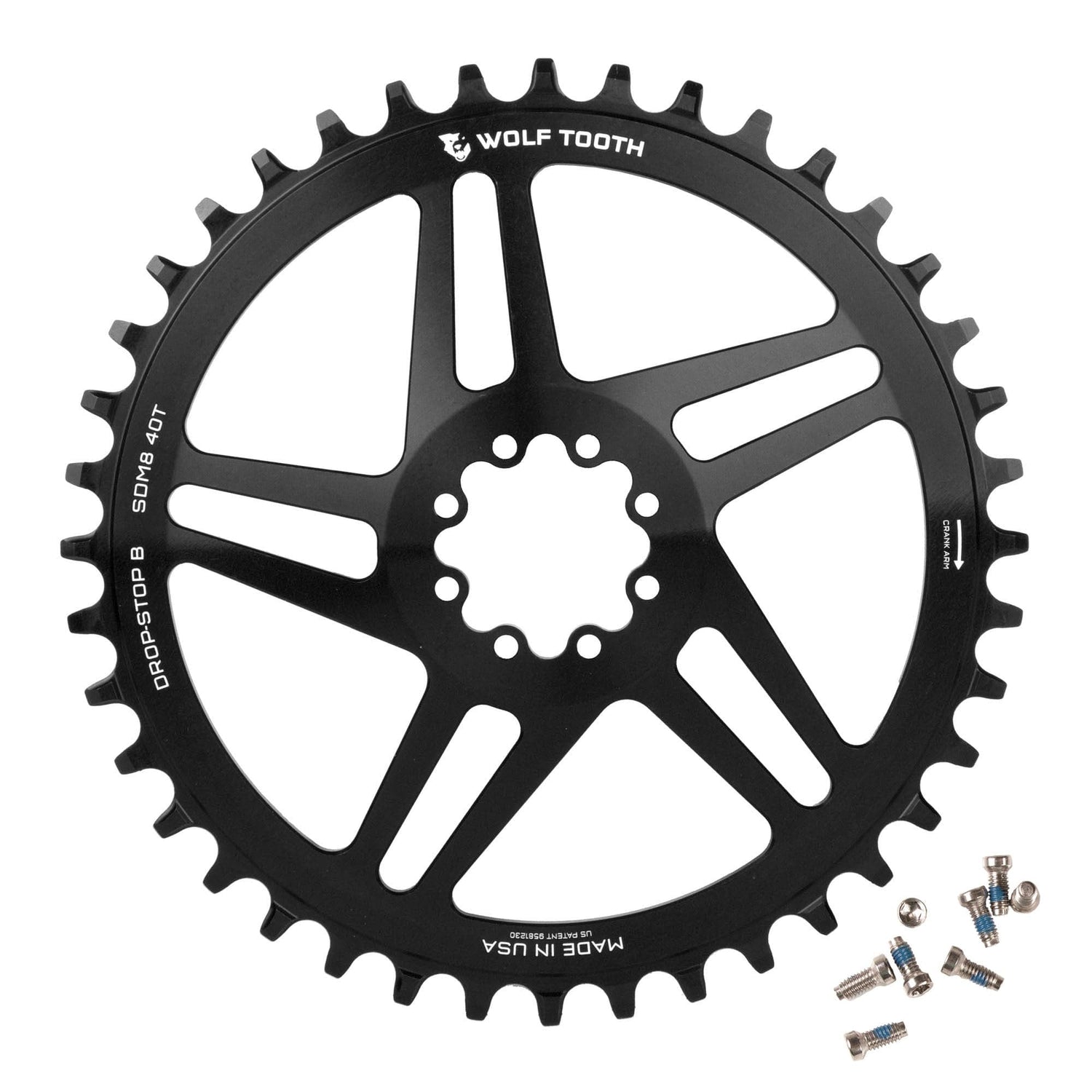

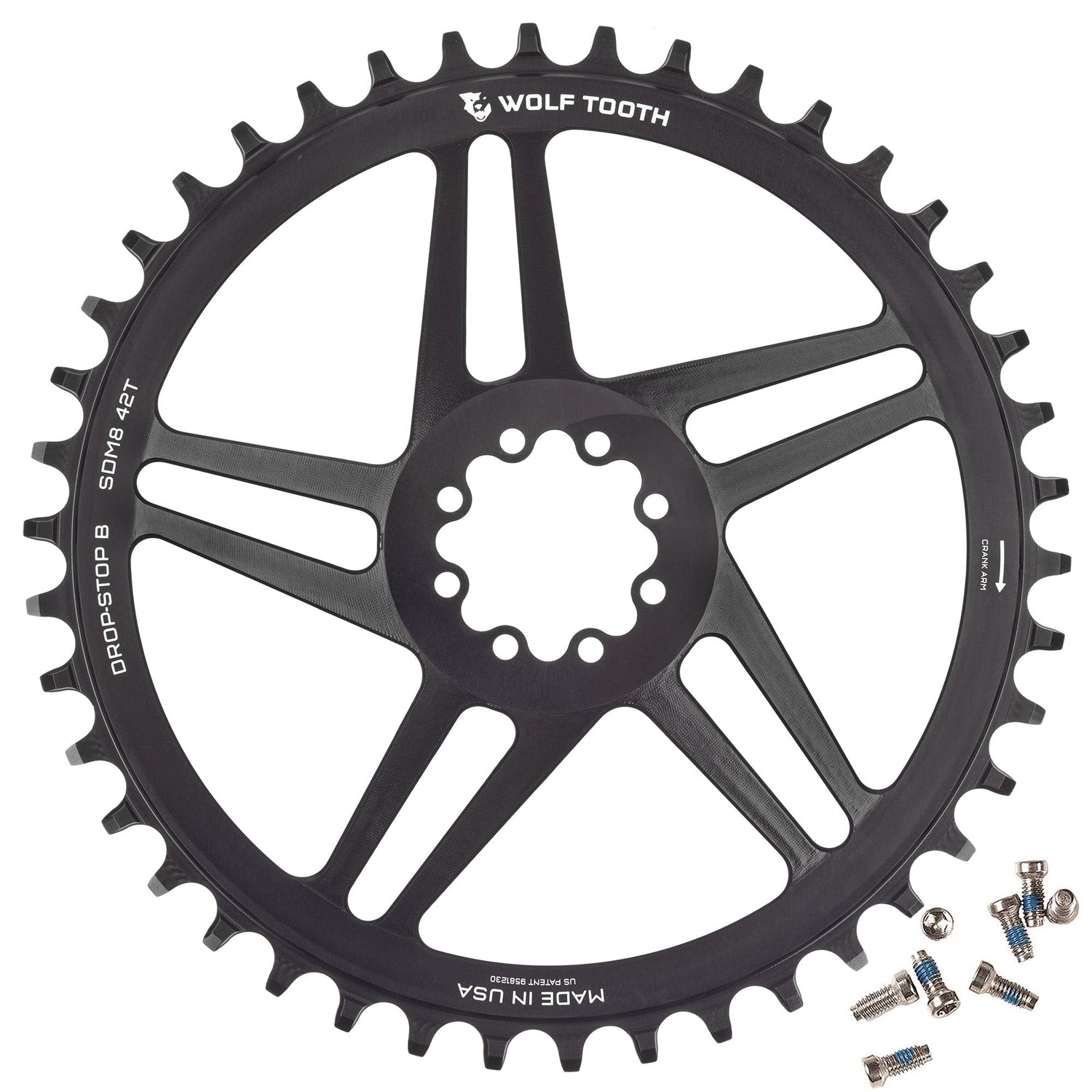

For Installation, use the included custom T20 bolts. Torque to 4Nm with a T20 bit.
