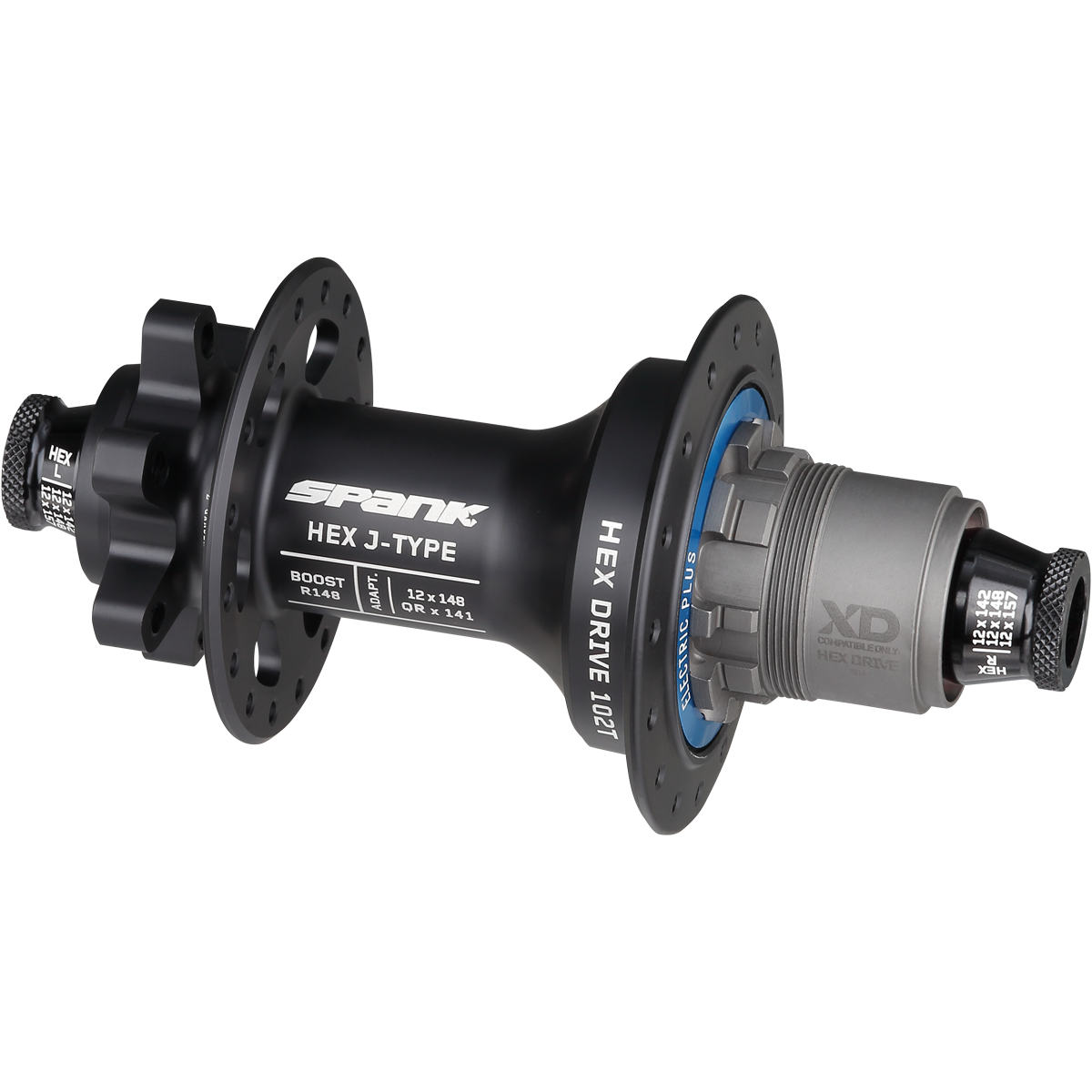

SPANK HEX Boost R141/148 Hubs

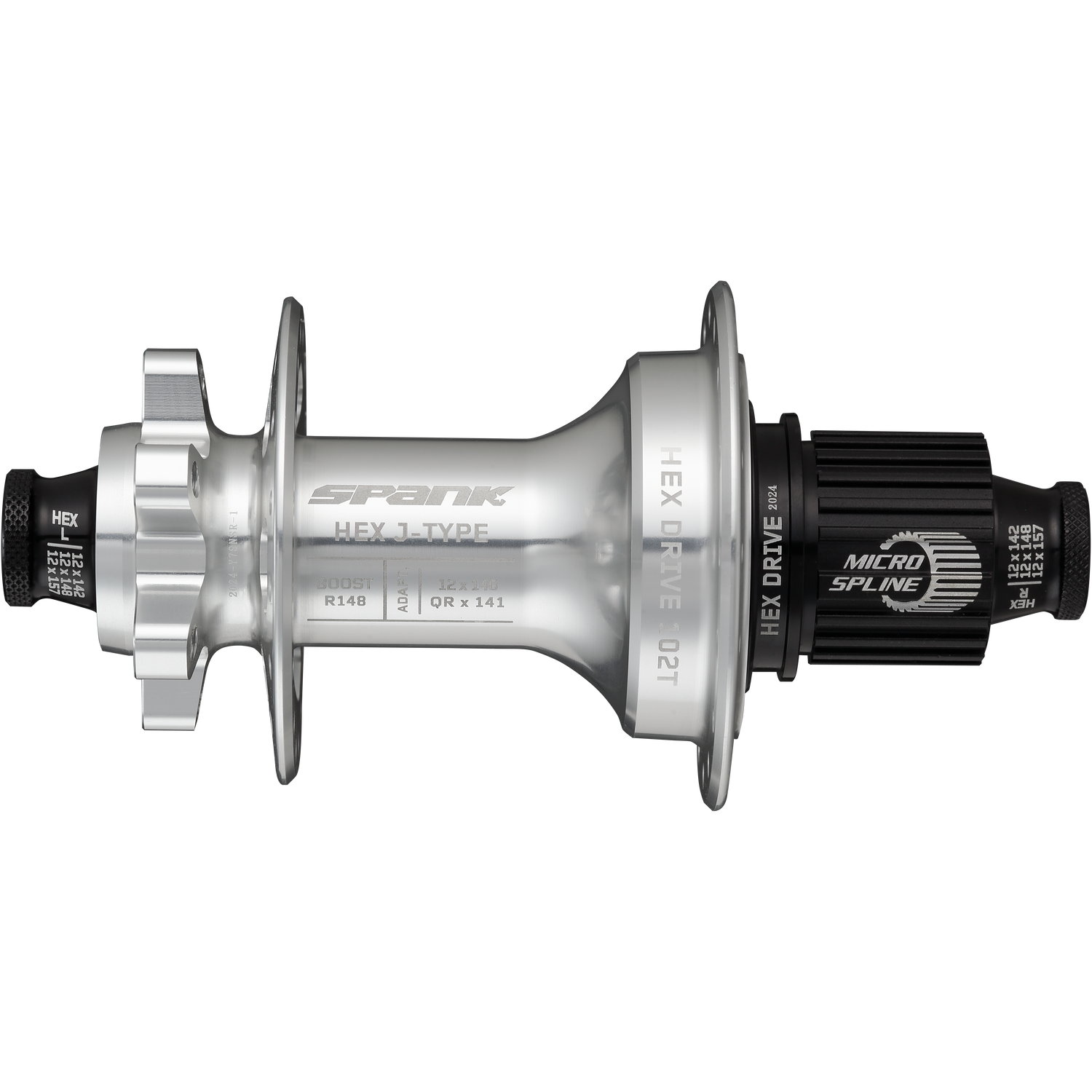

SPANK HEX Boost R141/148 Hubs - Boost 148mm HG / 32H / Raw Silver is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
SPANK HEX Boost R141/148 Hubs
Description
Description
Lightning-fast engagement.

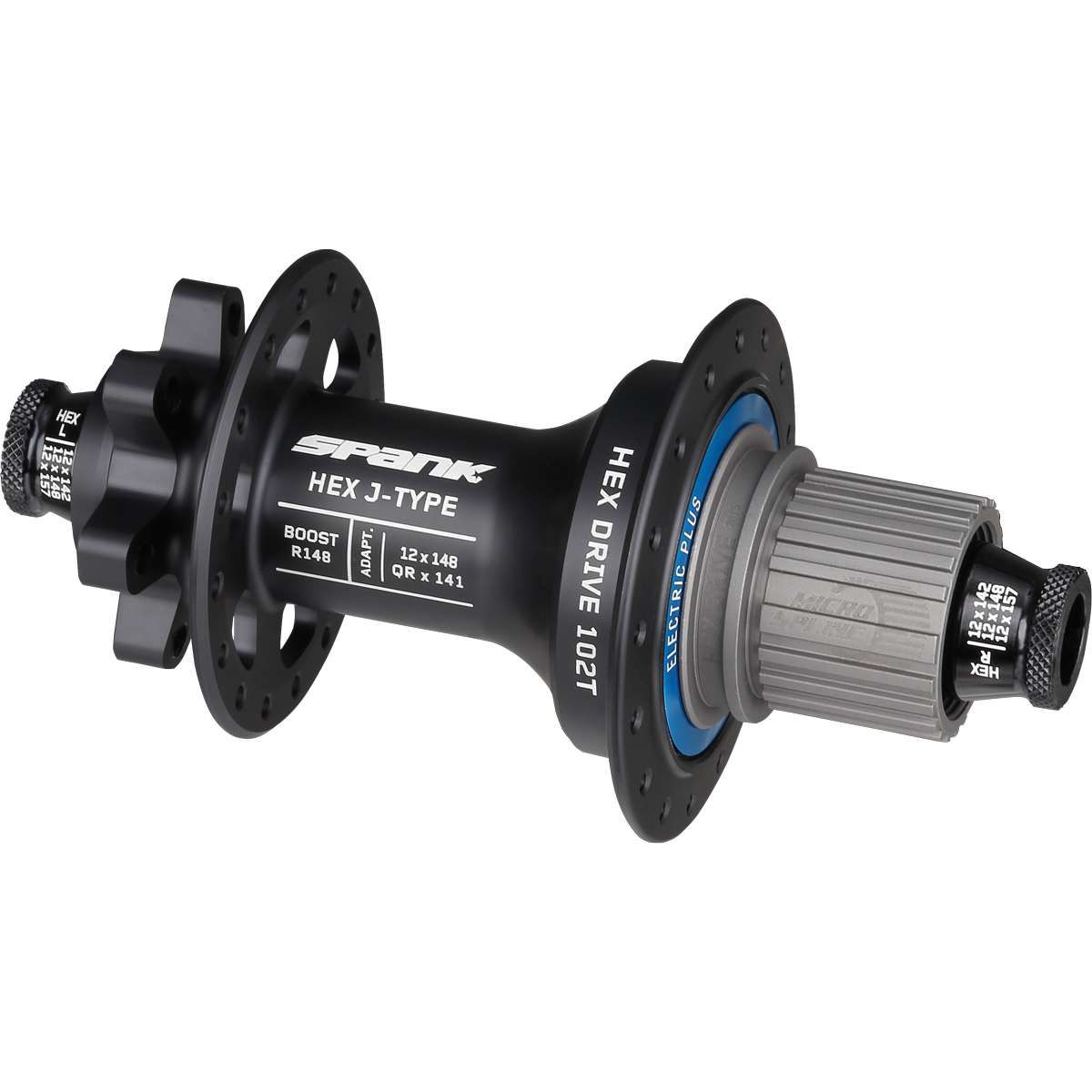

The New SPANK HEX DRIVE HUB, featuring:
- 102T, 6-Pawl 3.5 degree Engagement
- Full Alloy body and axle
- Bite Block Alloy freehubs or Steel freehubs for HD/E-Bike use
- Advanced seal system

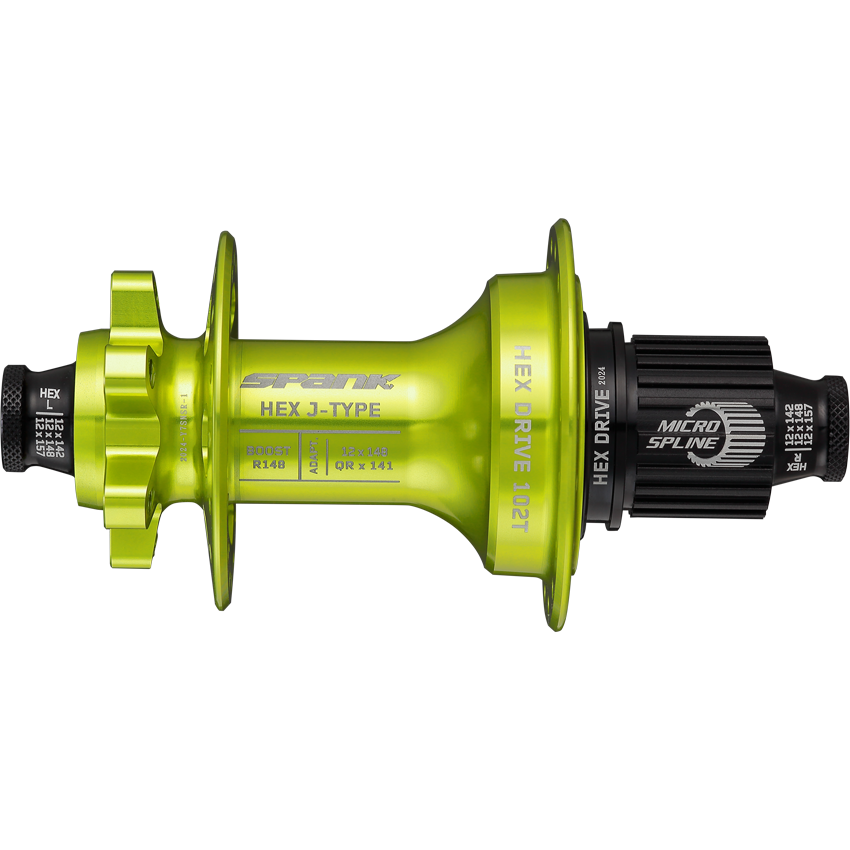

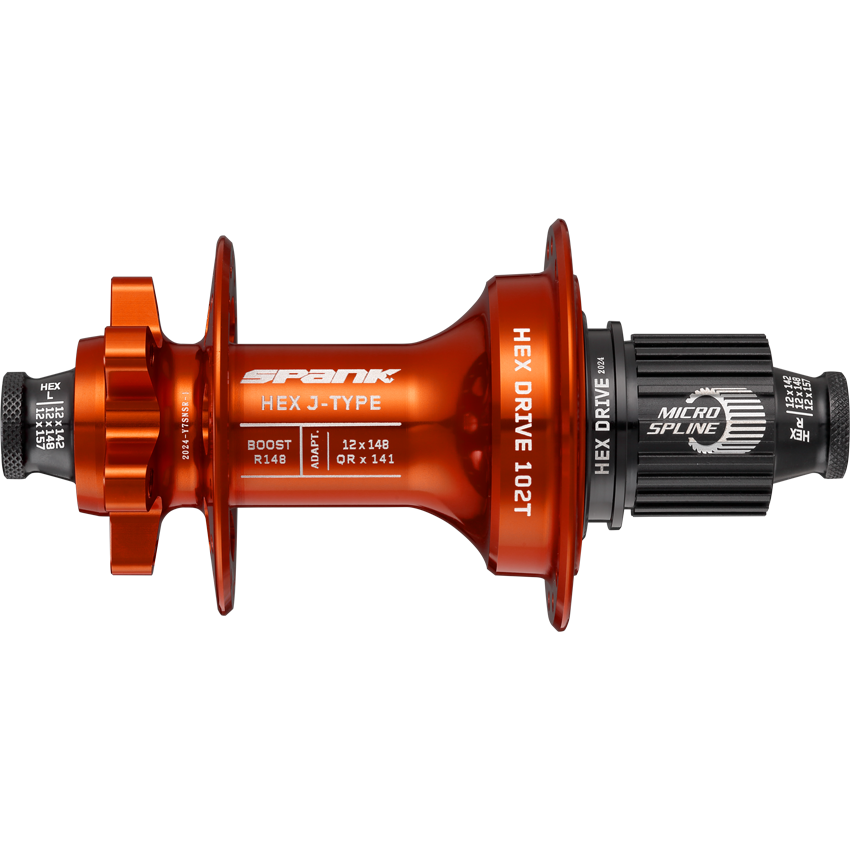

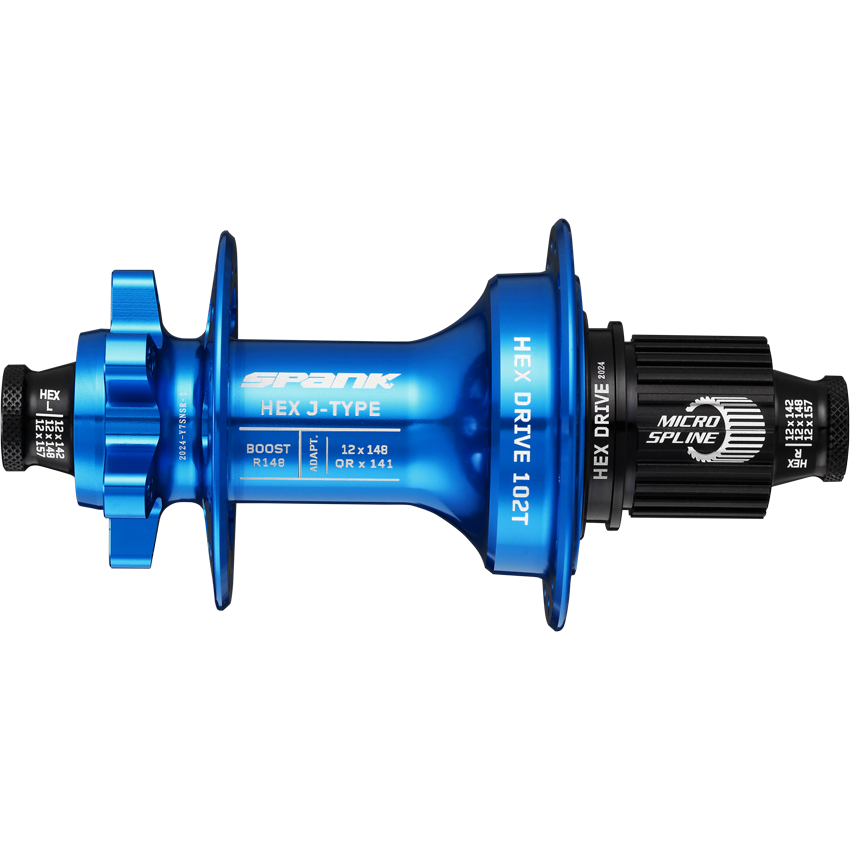

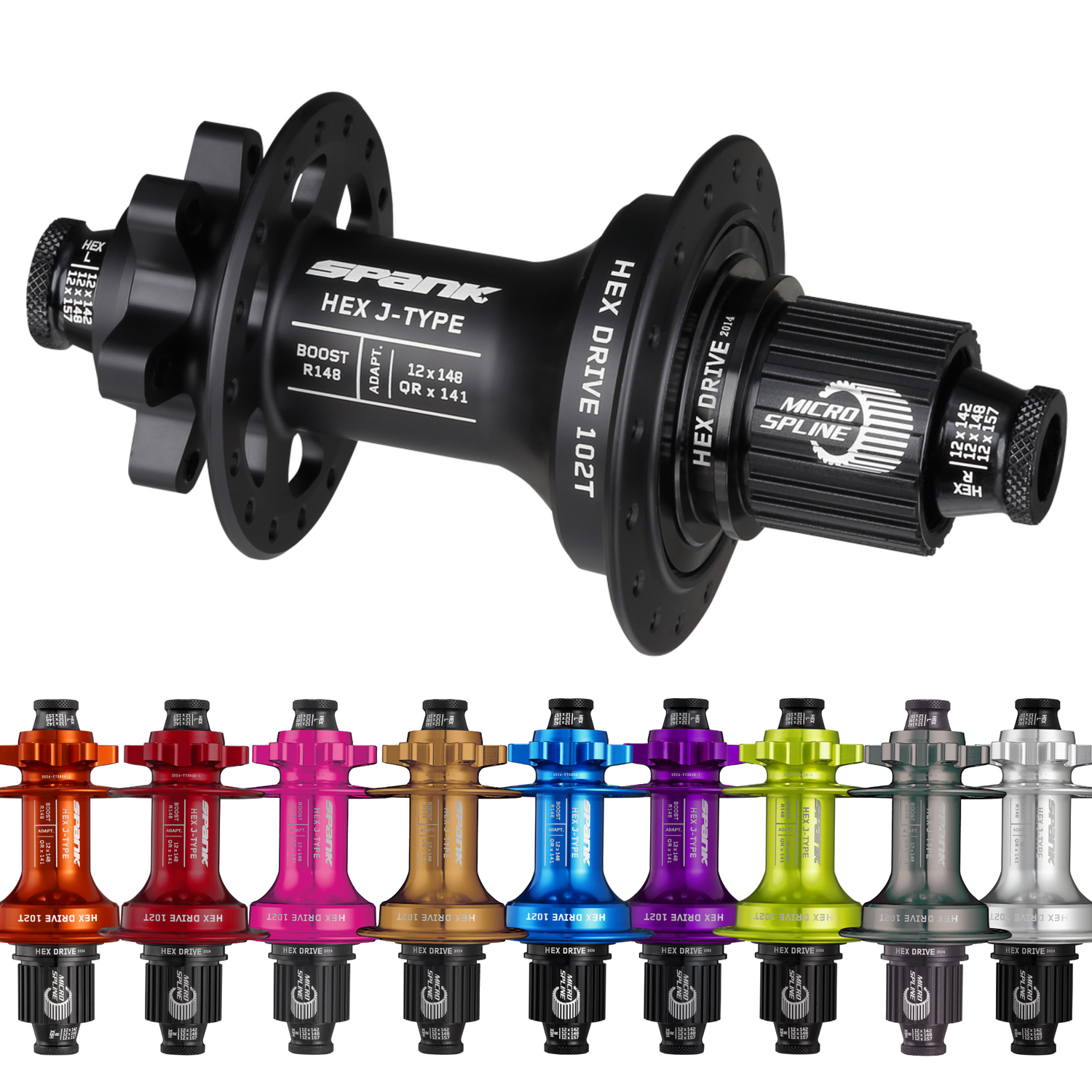

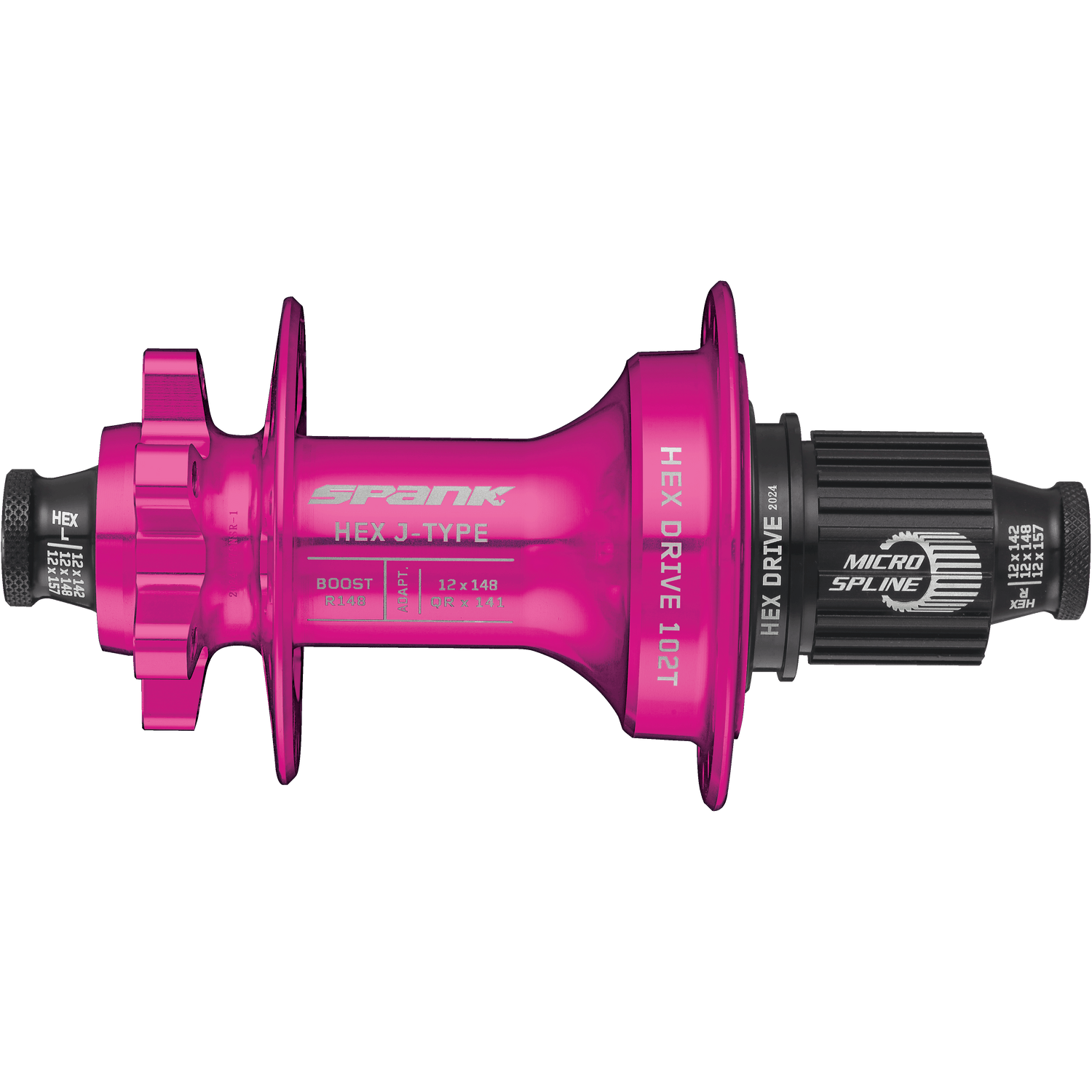

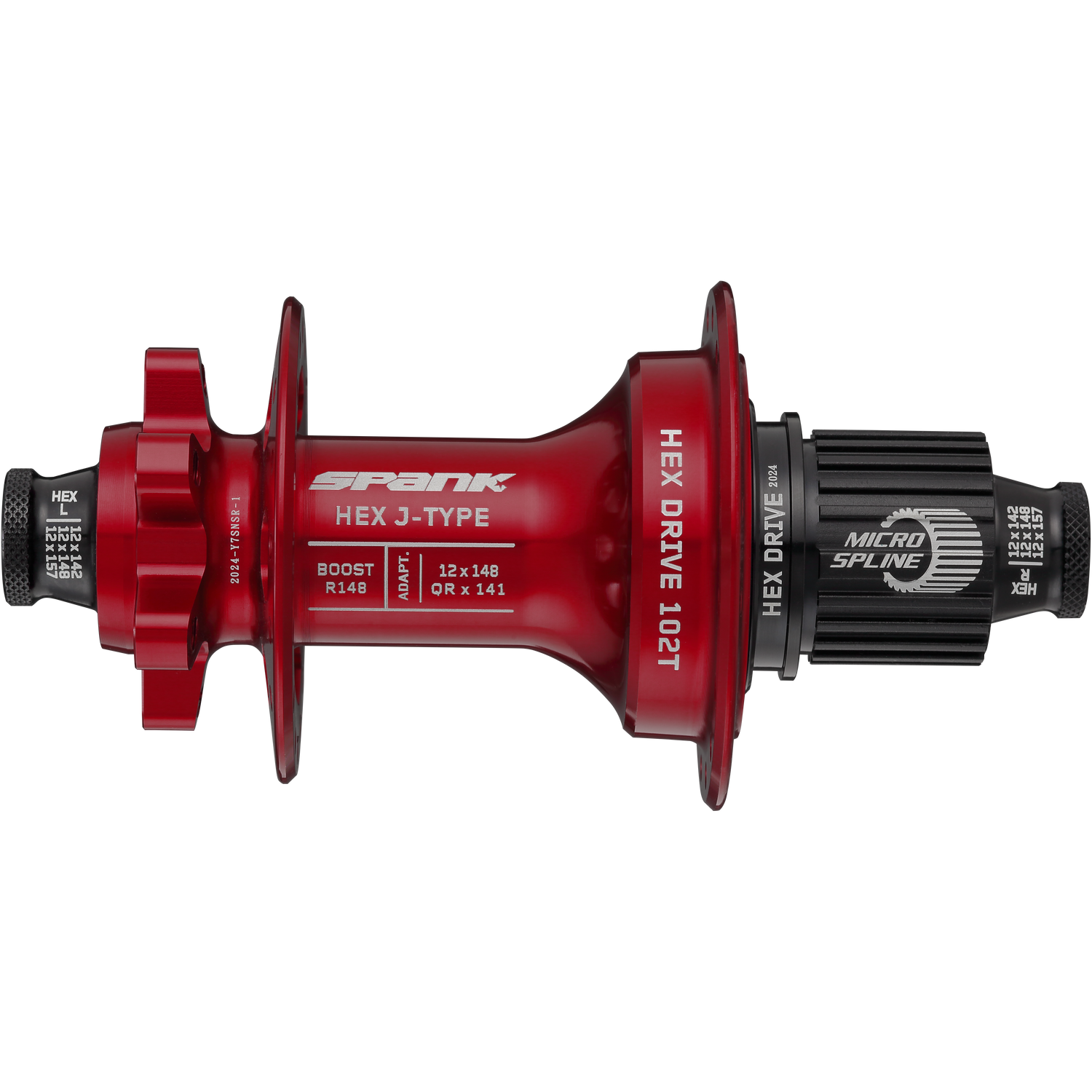

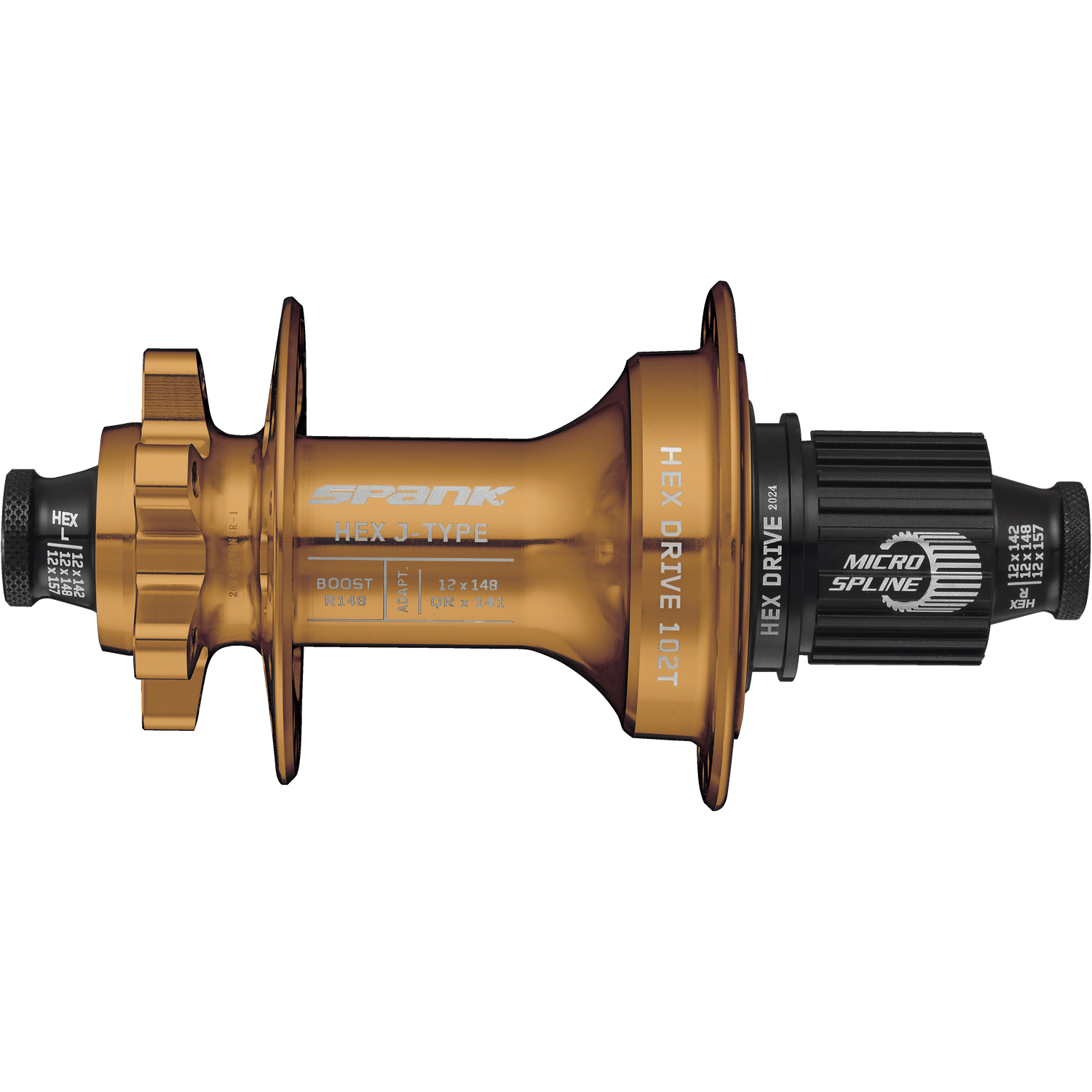

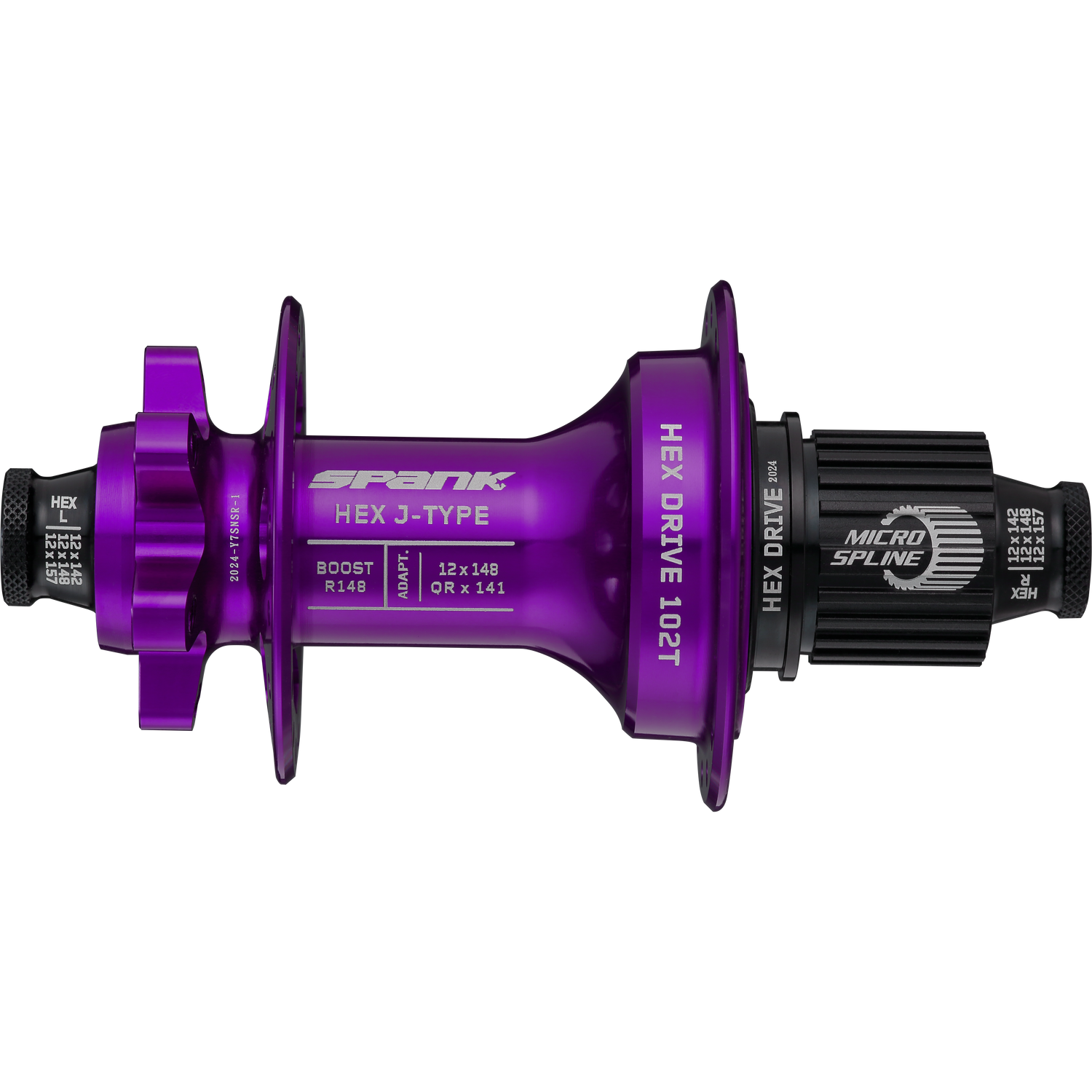

- Colors only available in BOOST 12x148mm hubs
- Can be converted to QRx141 with a separate endcap purchase (see Hex hub parts).
CLASSIFICATION & INTENDED USE
| ALL MOUNTAIN | TRAIL | ENDURO | FREERIDE | DOWNHILL | GRAVEL | XC |
|---|---|---|---|---|---|---|
| ✔ | ✔ | ✔ | ✔ | ✔ |
- SPANK’s HEX DRIVE 102T technology delivers 3.5° engagement, for almost instant pickup
- 6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click

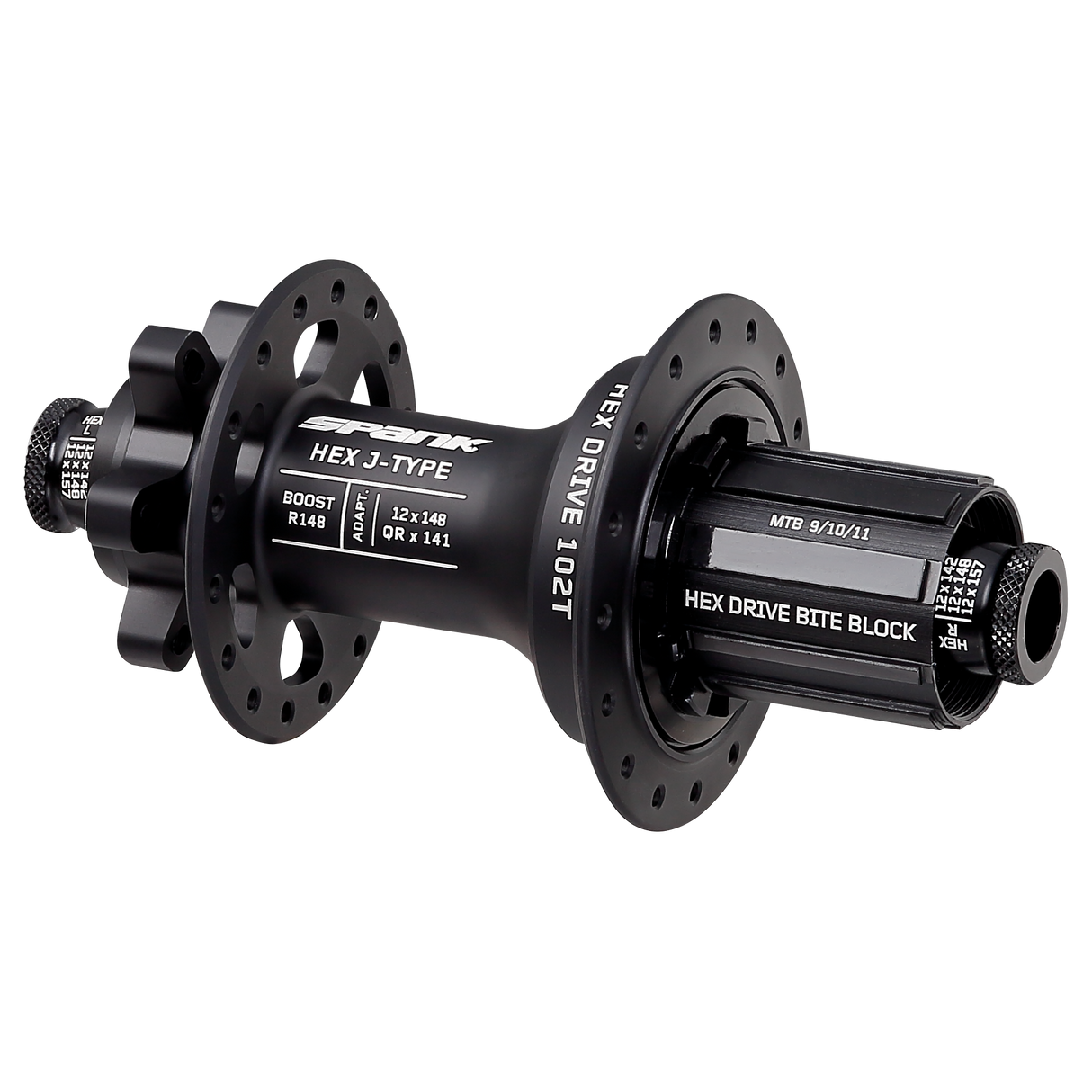

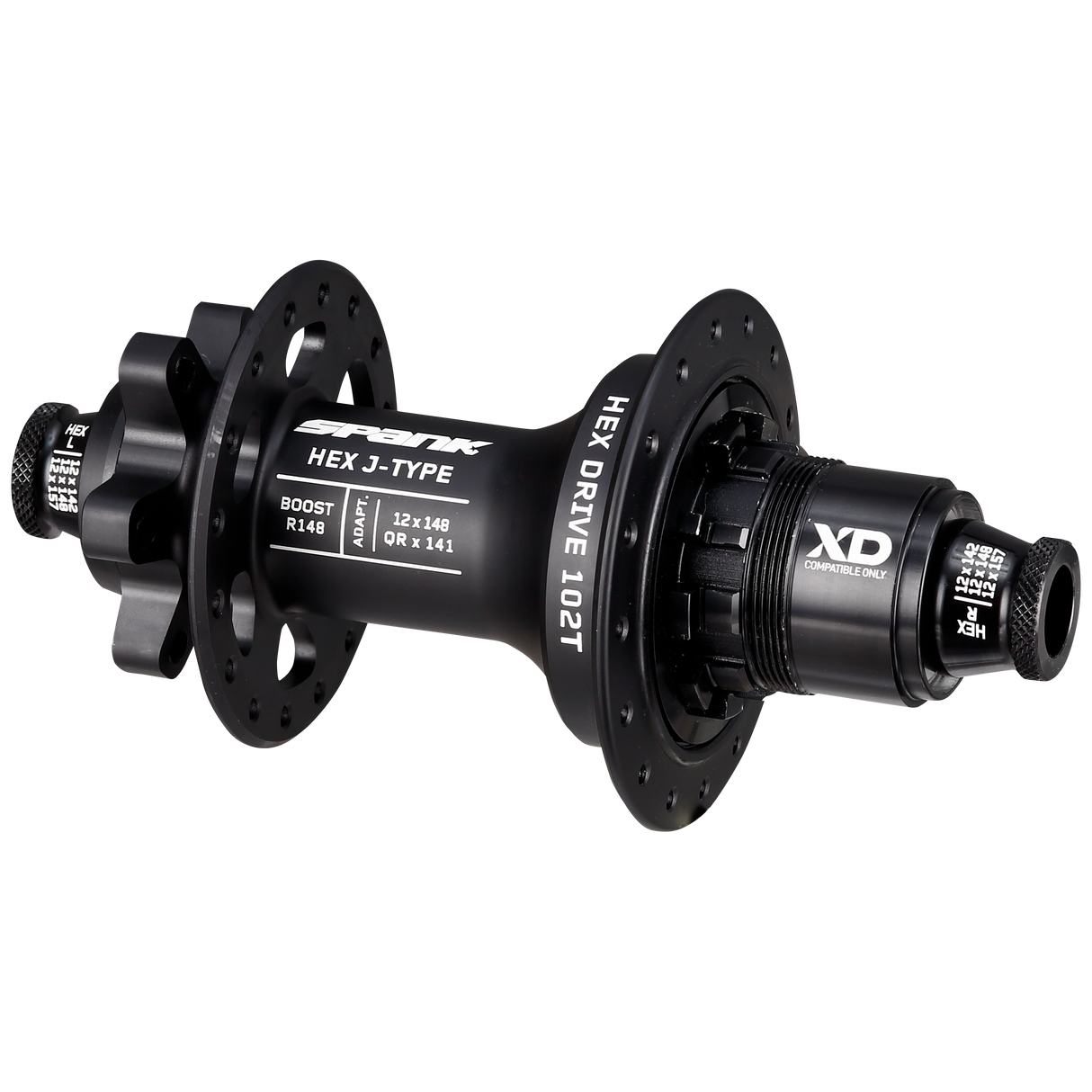

- Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel
- Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
- Advanced seal system improves prevention of bearing/drive system contamination
SPECIFICATIONS
|
ENGAGEMENT: |
HEX DRIVE 102T / 3.5° / 6 Pawl |
|---|---|
|
HOLE COUNT: |
32H J-Hook |
|
DISC MOUNT: |
6-bolt |
|
MATERIAL: |
CNC optimized forged alloy hub body, alloy axle, alloy freehub body |
|
FINISH: |
Matte anodized, laser logos |

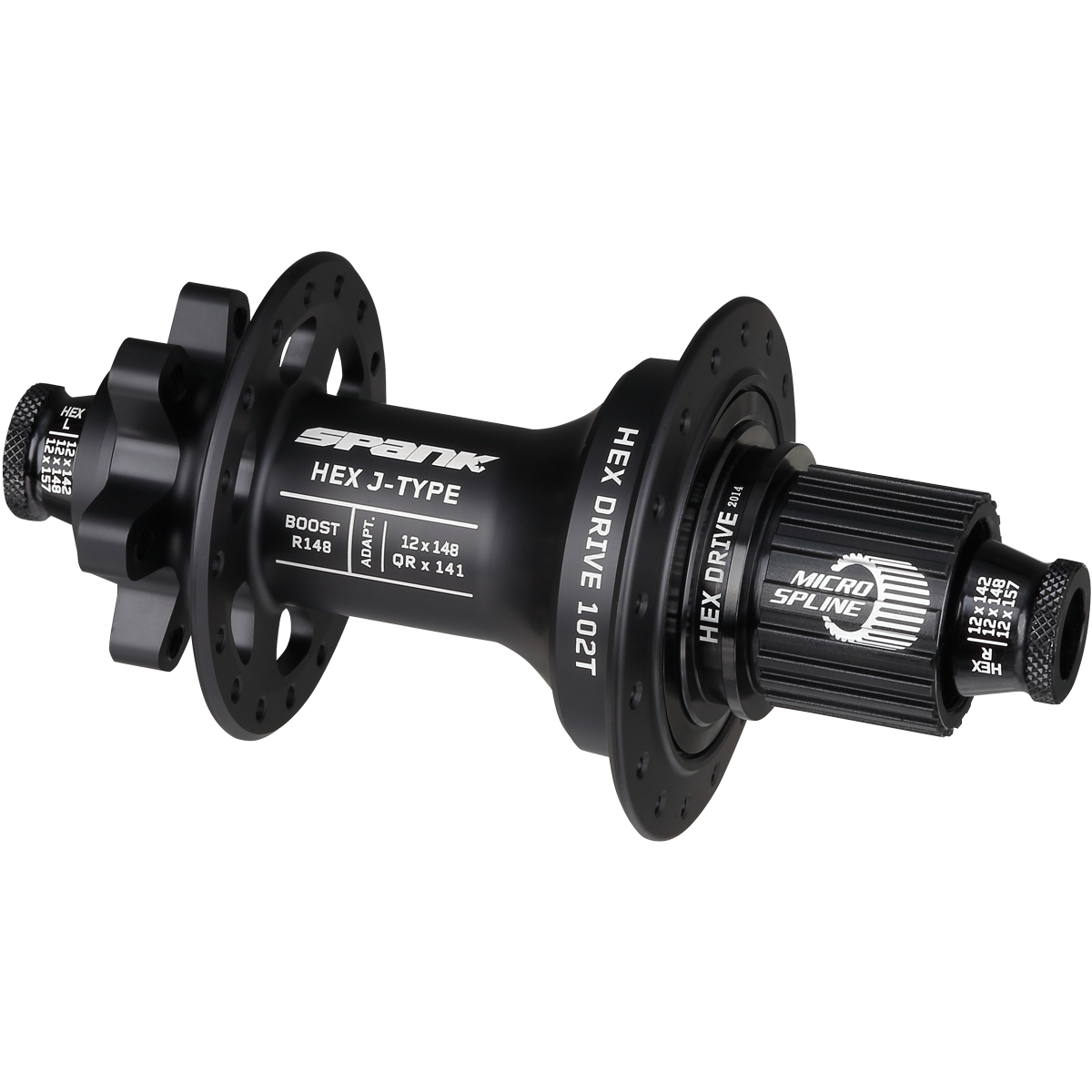

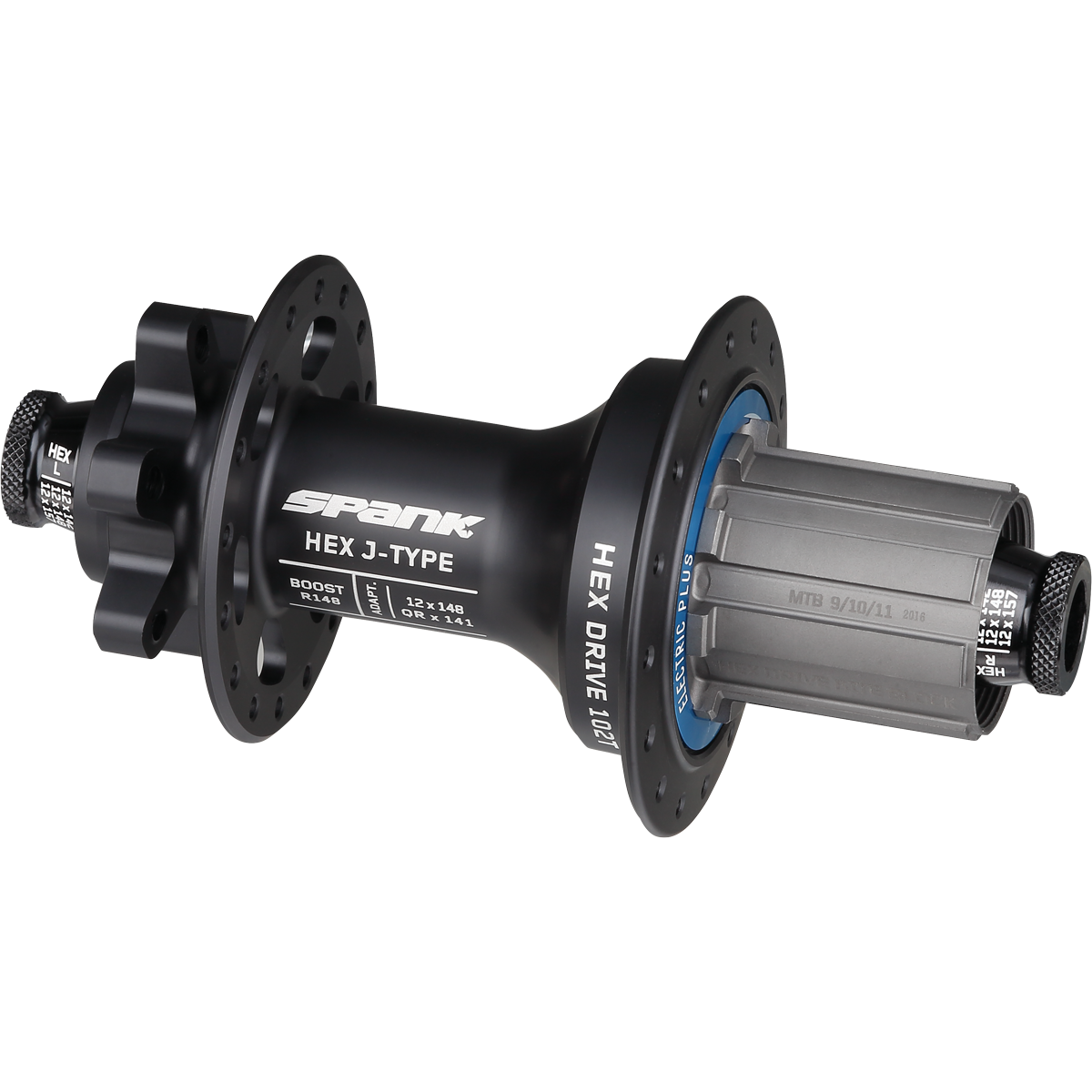

BOOST R148
|
CONFIGURATION: |
Boost 12x148mm, J-hook |
|---|---|
|
FREEHUB: |
Alloy HG / Alloy XD |
|
WEIGHT +/- (g): |
318 (HG) / 310 (XD) |
|
ADAPTORS INCLUDED: |
none |
|
ADAPTORS AVAILABLE SEPARATELY: |
Boost QRx141 |
ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS
|
Boost R148: |
HEX Rear Hub QRx135/141 adapter |
|---|---|
|

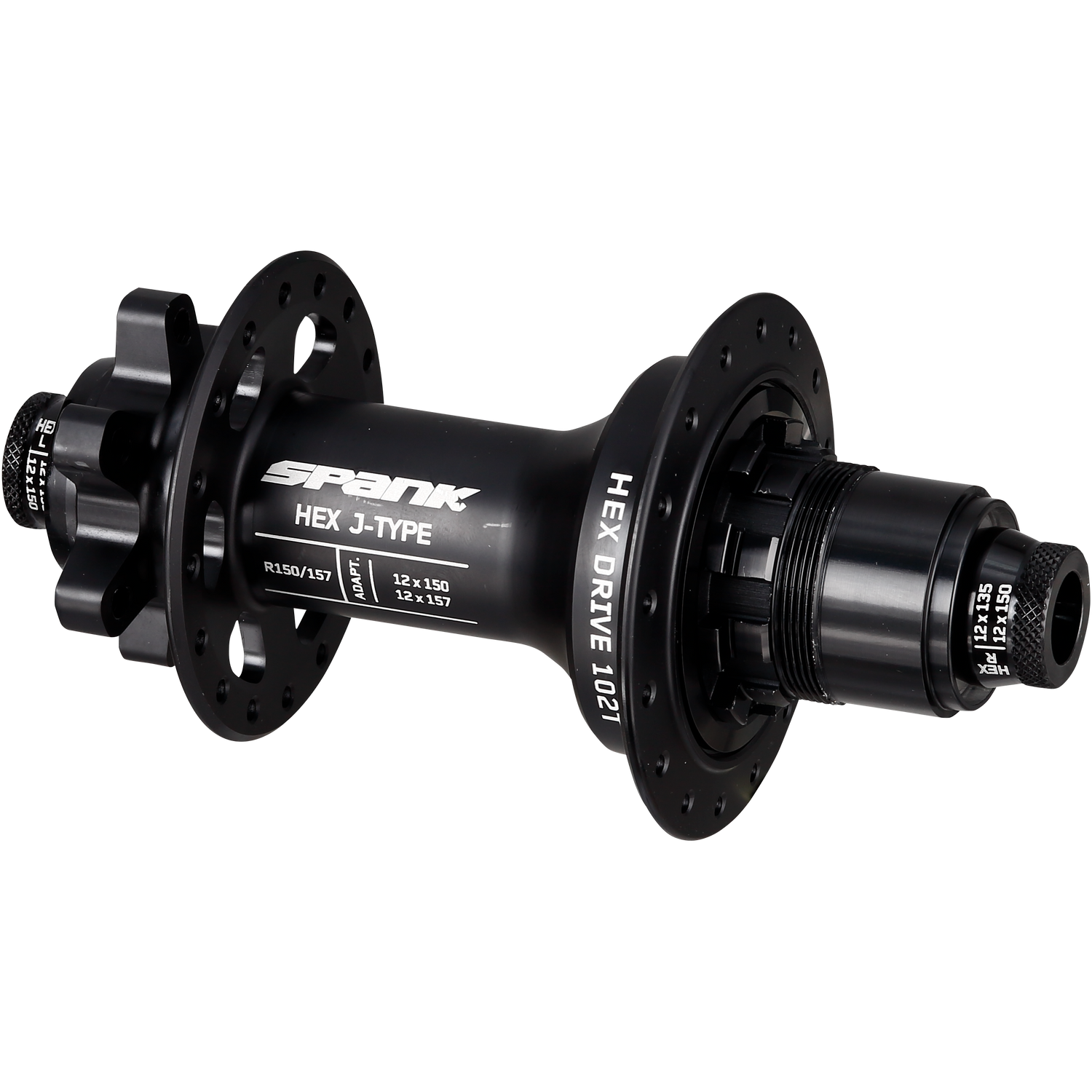

R150/157: |
N/A |
|

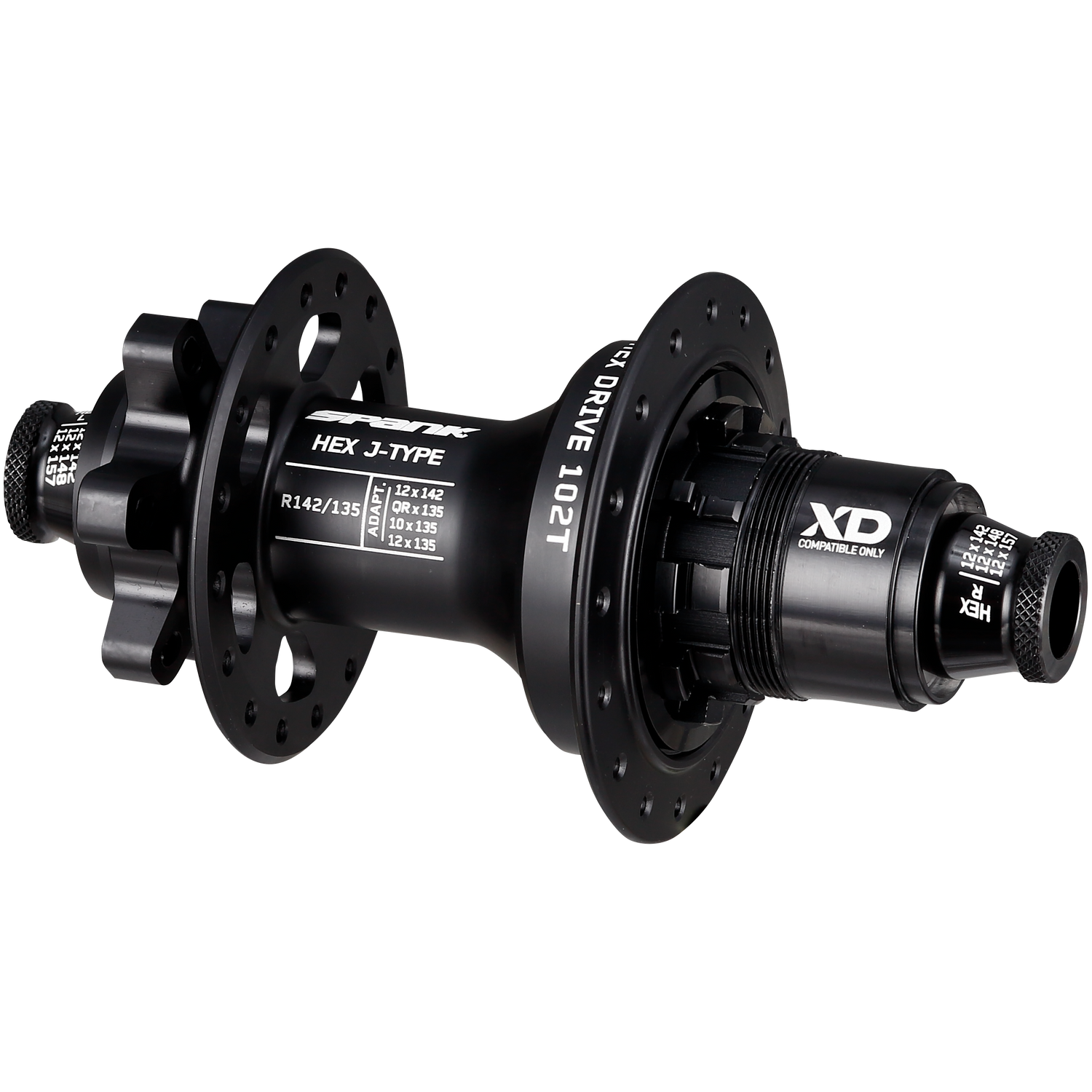

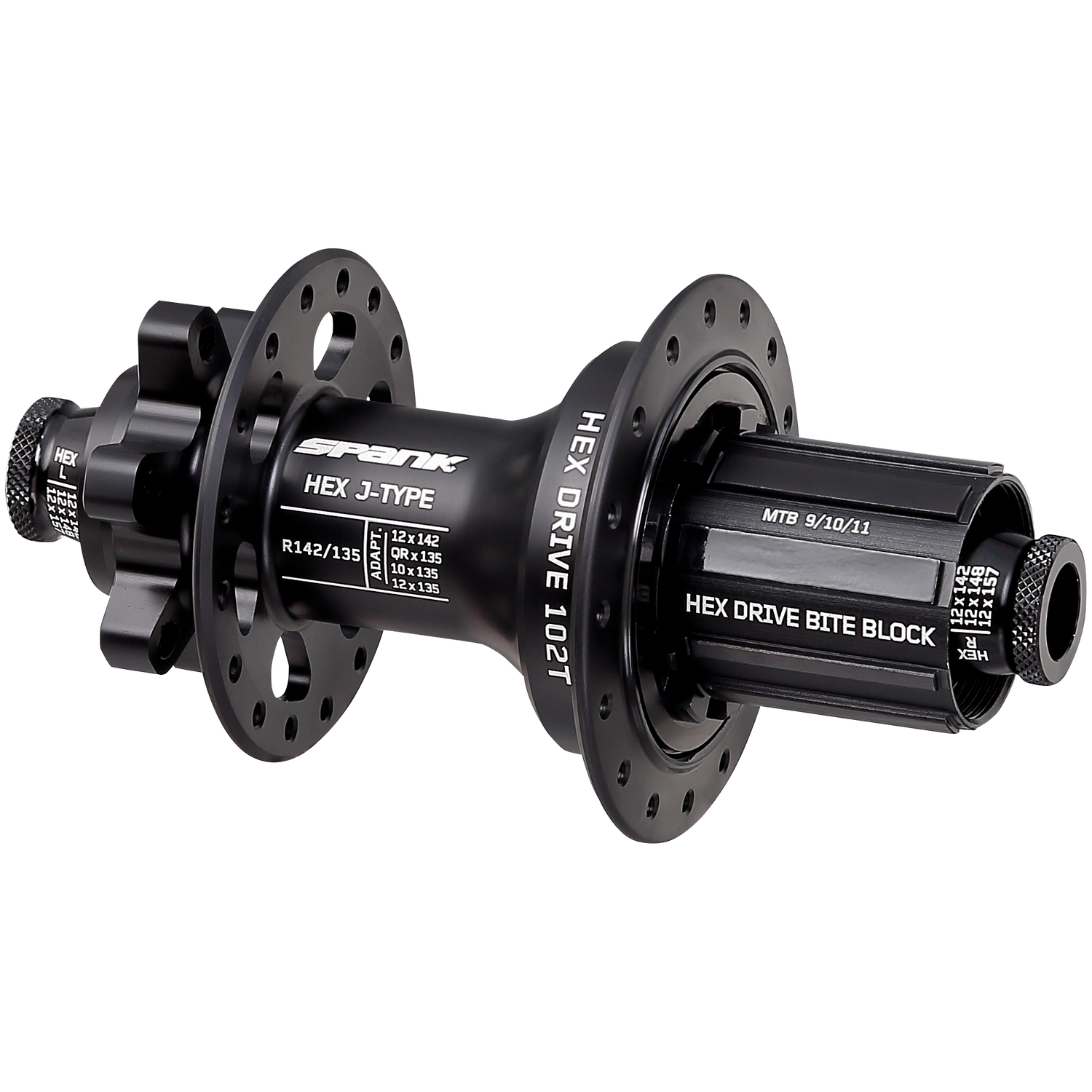

R135/142: |
HEX Rear Hub 12x135 thru-axle adapter |
|
|
HEX Rear Hub QRx135 or 10x135 thru-axle adapter |
SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS
|
HEX Rear HG/HGR Hub Replacement Bearing Kit |
|
HEX Rear XD/XDR Hub Replacement Bearing Kit |
|
HEX Boost Rear Hub Alloy Axle Shaft |
|
HEX Rear Hub 135/142mm Alloy Axle Shaft |
|
HEX Rear Hub 150/157mm Alloy Axle Shaft |
|
HEX Rear Hub HG Alloy Anti-Bite Freehub |
|
HEX Rear Hub XD Alloy Freehub |
